Product Description

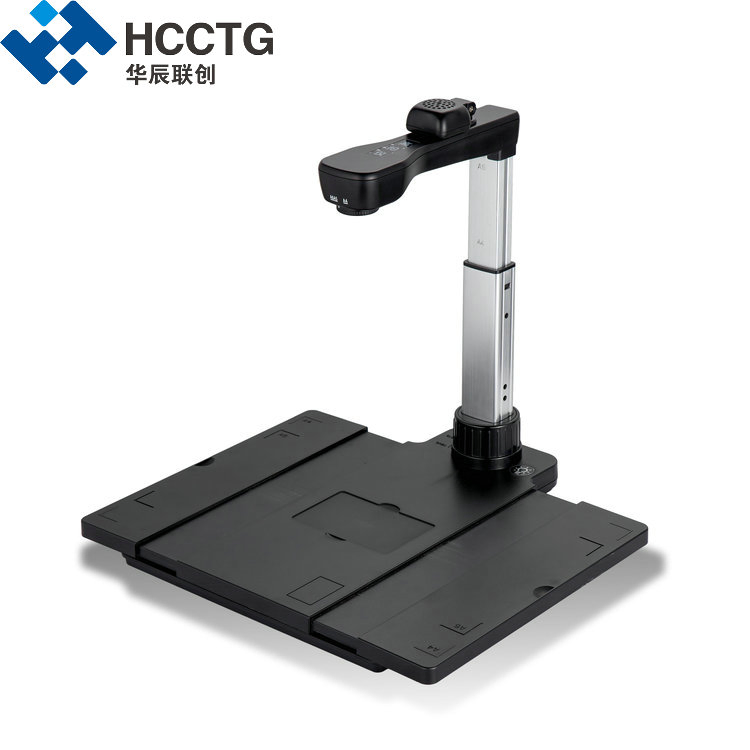

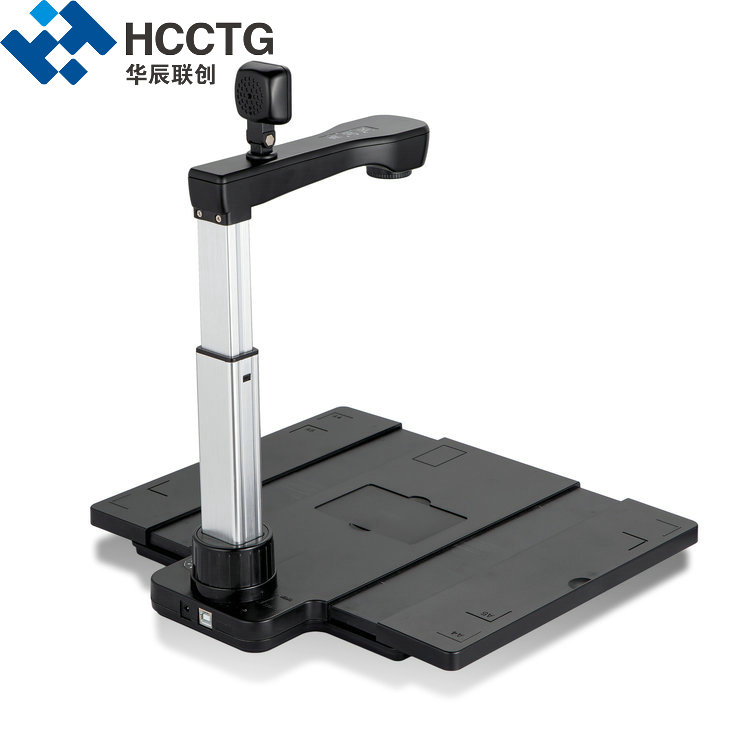

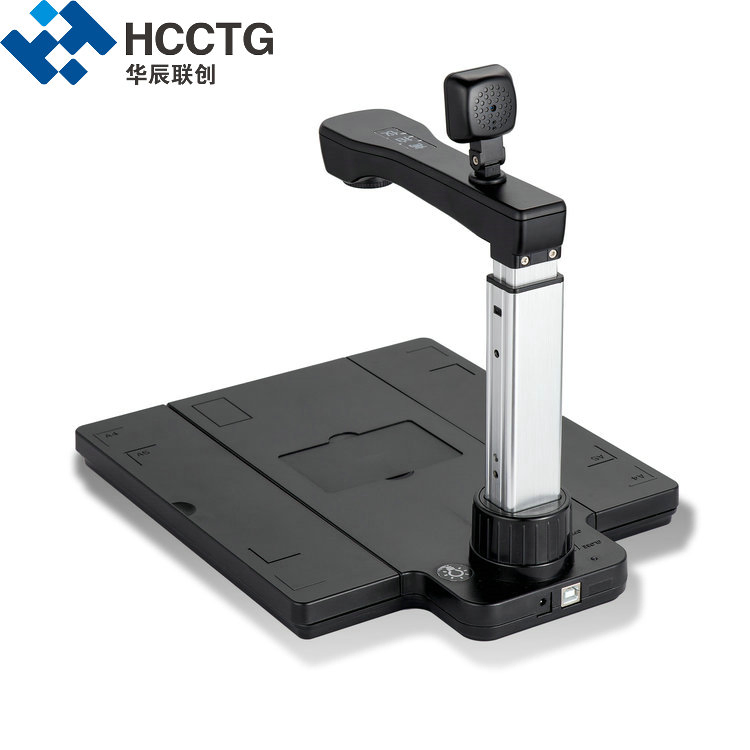

HCS-1200 ID Card Identification/Document Camera

Product details
AppearanceUpright with non-contact & fixed base
DimensionA6: W235× D280× H182 / 192mm
A5: W235× D280× H196 / 206mm
A4: W322× D280× H258 / 268mm
N. W. 980g
InterfaceUSB2.0
Power supplyUSB 5V / DC 5V
Technical Specifications
Color depth24 Bit
ID card identificationOptional(Should connect with DC power 5V, 1.0A)
Resolution2592× 1944 & 1600× 1200(Aux Camera)
Exposure / WBAutomatic
Shooting range≤ A4(210mm× 297mm)
ShootingFixed focus
Light sourceLED lights
Image formatJpeg / Bmp / Png / Tif / Gif
Export format(OCR)&Word / Excel / Html / Pdf / Rtf / TXT / CSV
Video formatAvi
SensorCMOS
Image controlSaturation, contrast, sharpening, Brightness, exposure, color, etc.
Environment-30° C to +80° C(Standby) / -20° C to +50° C(Working)

OS requirement
Apply to windows XP SP2/SP3, Windows Vista, Window7, etc. Operating system
(ICADOS: P4 or the same CPU, 512memory, 80G HDD) or above.
Application area
Documents, books, objects, photos, magazines, books, papers, home works.
High-resolution image

Appearance	Upright with non-contact & fixed base
Dimension	A6: W235×D280×H182 / 192mm A5: W235×D280×H196 / 206mm A4: W322×D280×H258 / 268mm
N.W.	980g
Interface	USB2.0
Power supply	USB 5V / DC 5V
Technical Specifications
Color depth	24 Bit
ID card identification	Optional(Should connect with DC power 5V,1.0A)
Resolution	2592×1944 & 1600×1200(Aux Camera)
Exposure / WB	Automatic
Shooting range	≤A4(210mm×297mm)
Shooting	Fixed focus
Light source	LED lights
Image format	Jpeg / Bmp / Png / Tif / Gif
Export format	(OCR)&Word / Excel / Html / Pdf / Rtf / TXT / CSV
Video format	Avi
Sensor	CMOS
Image control	Saturation, contrast, sharpening, Brightness, exposure, color, etc.
Environment	-30°C to +80°C(Standby) / -20°C to +50°C(Working)
