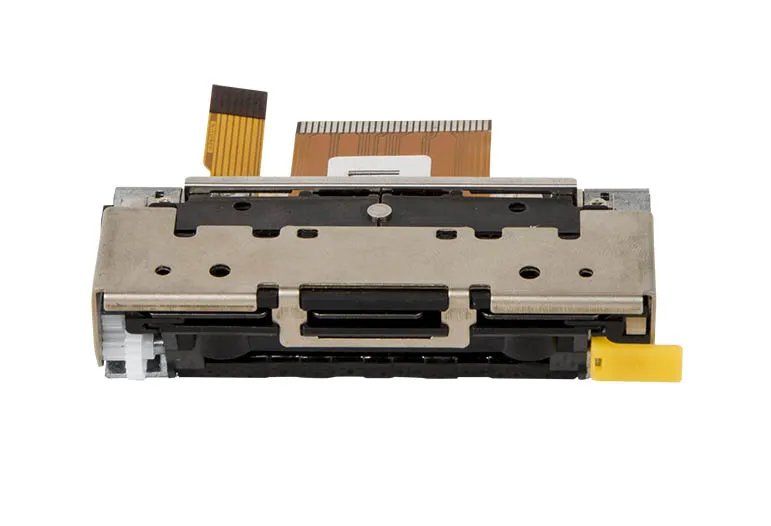

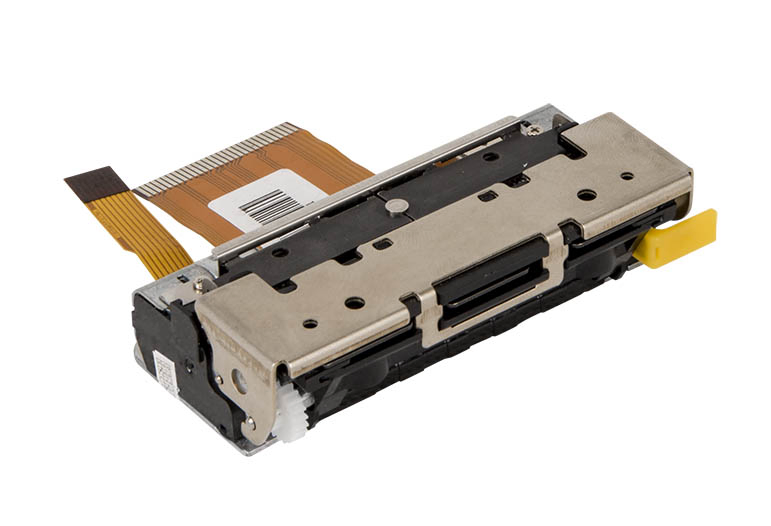

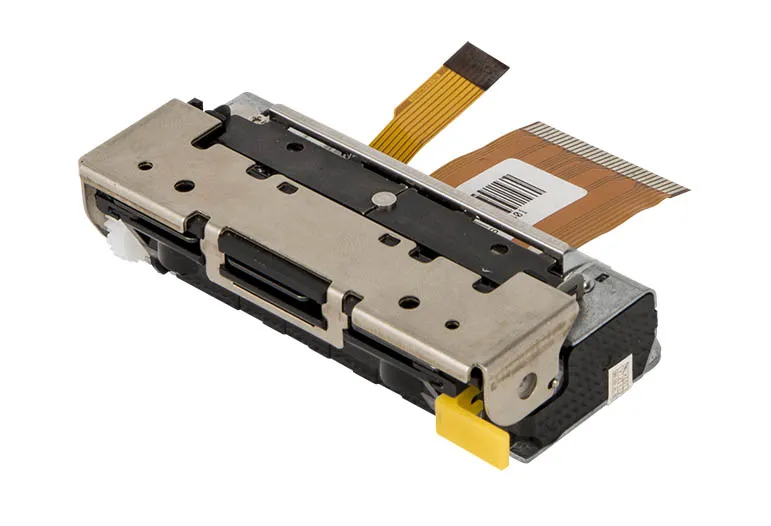

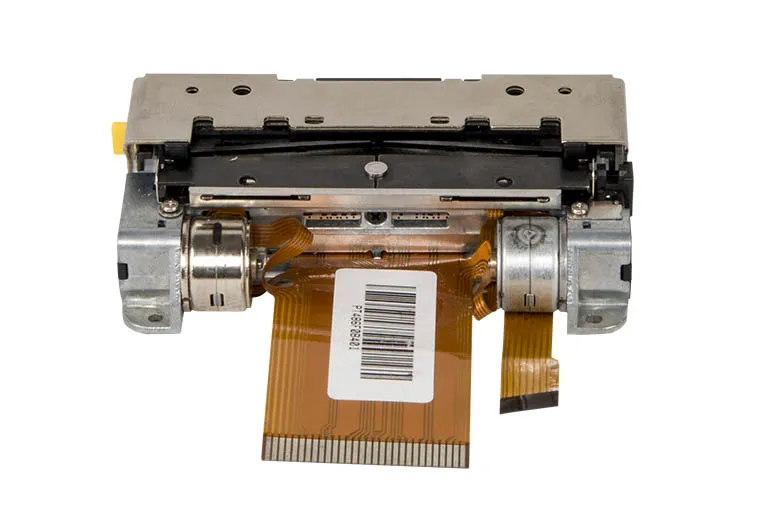

2 Inch Auto Cutter Thermal Printer Mechanism PT486F08401 Compatible With FTP-628MCL401RA
Product Description2 Inch Auto Cutter Thermal Printer Mechanism PT486F08401 Compatible withFTP-628MCL401RA PT486F08401Overview1. Low voltage supplyThe voltage used to drive the thermal printer head is equal to the logic voltage, or is driven by a 5 V single power line, the range of operating voltage......
Send Inquiry
Product Description
FTP-628MCL401RA
PT486F08401
1. Low voltage supply
The voltage used to drive the thermal printer head is equal to the logic voltage, or is driven by a 5 V single power line, the range of operating voltage is 4.2V-8.5V, so four to six NI-Cd batteries or Ni-MH batteries can also be used. Two li-ion batteries can be used.
2. Compact and lightweight design
The mechanism is compact and light, dimensions: 81.2mm (width) * 42.2mm (depth) * 21.8mm (height)
3. Printing with high resolution
A high-density printer head of 8 dots/mm makes the printing clear and precise
4. High speed printing
According to driving power and sensitivity of thermal paper, set different printing speed required. Printing speed is 70 mm/ s(max.)
5. Easy paper loading
Detachable rubber roller structure makess the paper loading easier
6. Low noise
Thermal line dot printing is used to guarantee low noise printing.
• Gaming and Lottery
• Vending Machines
• Gas pumps
• Medical equipment
• Parking Meters
• Taxi meters
• Voting
• Weighing scales
2 Inch Auto Cutter Thermal Printer Mechanism PT486F08401 Compatible with
FTP-628MCL401RA
2 Inch Auto Cutter Thermal Printer Mechanism PT486F08401 Compatible with
FTP-628MCL401RA
Series Model | PT486F08401 |
PRINTING CHARACTERISTICS | |
Print Method | Direct line thermal |
Resolution | 8 dots/mm |
Max. Printing Width | 48mm |
Number of Dots | 384 |
Paper Width | 57.5±0.5mm |
Max. Printing Speed | 70mm/s |
Paper Path | Curved |
DETECTION | |
Head Temperature | By thermistor |
Paper Out | By photo sensor |
Platen Open | By mechanism SW |
Cutter Home Positon | By photo sensor |
Black Mark | NA |
POWER SUPPLY | |
TPH Logic Voltage | 3.0V-5.5V |
Drive Voltage | 4.2V - 8.5V |
PEAK CURRENT | |
Head(Max.) | 2.4A(7.2V/64dots) |
Paper Feeding Motor | 1.0A |
Cutter Motor | 1.0A |
AUTO CUTTER | |
Method | Slide type |
Paper Thickness | 60um-85um |
Cutting Type | Full/Partial cut |
Operating Time (Max.) | Approx. 0.5s |
Cutting Pitch (Min) | 20mm |
Cut Frequency (Max.) | 30cuts/min. |
RELIABILITY | |
Pulse Activation | 100 million |
Abrasion Resistance | 50KM |
Paper Cutting | 500,000 cuts |
ENVIRONMENTAL | |
Operating Temperature | 0 - 50ºC |
PHYSICAL CHARACTERISTICS | |
Dimensions(W*D*H) | 81.2*42.2*21.8mm |
Mass | 97g |
Selling Units:Single item
Single package size: 9.08X4.24X2.19 cm
Single gross weight:1.000 kg
Package Type:
Dimensions:80.8*42.4*21.9mm(W x D x H)
Lead Time:
| Quantity(Pieces) | 1 - 2000 | >2000 |
| Est. Time(days) | 15 | To be negotiated |

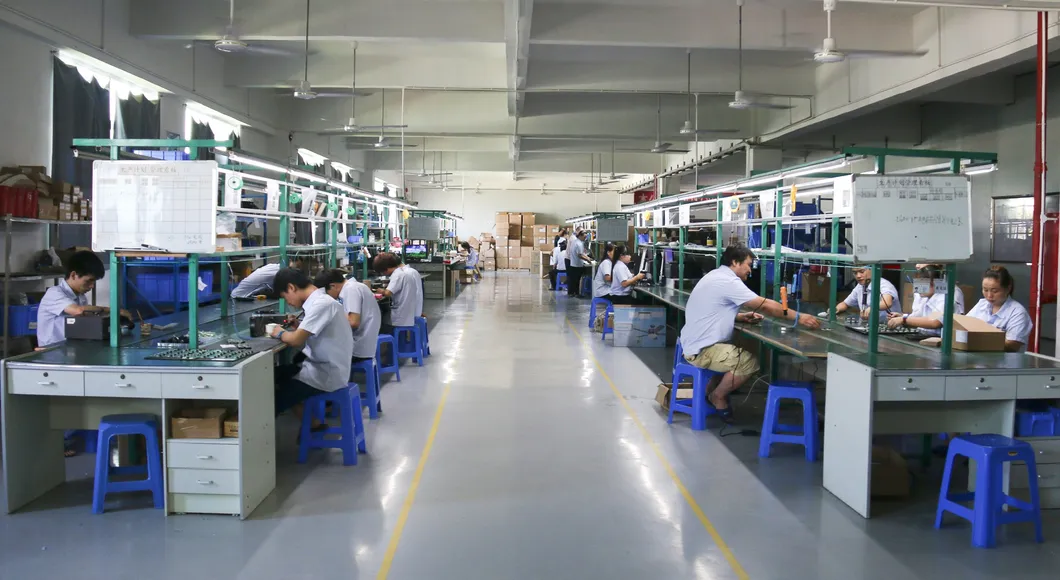

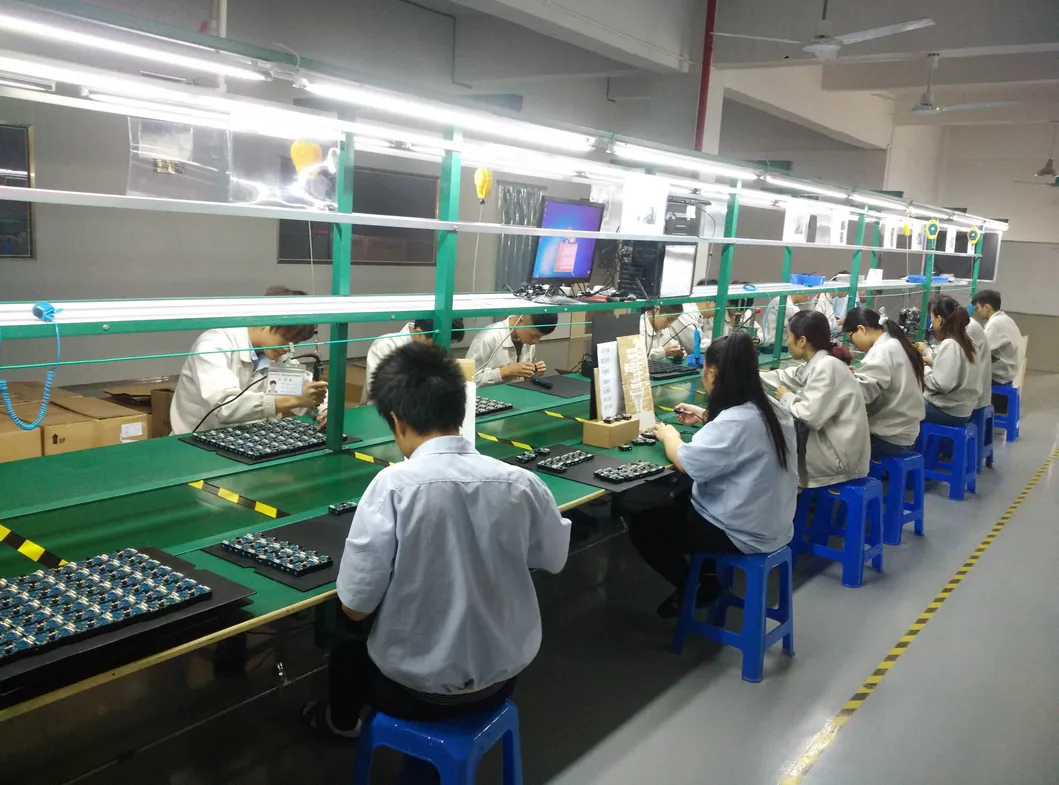

Suzhou Qiji Electric Co., Ltd specializes in designing, developing, manufacturing and marketing of printing equipment.
With experienced and professional R&D team, we successfully launched a series of printing equipment, such as advanced POS receipt printers, portable printers and LCD modules, bluetooth printer, micro panel printer, KIOSK printer, barcode label printer, as well as printer mechanisms (thermal & impact type) and so on.
Our products are widely used for POS/ECR, transport ticketing, instrument analyzers, KIOSK system, electronic medical equipment, self-service solution, fire safety, tax control, shopping malls, car automotive, food and beverage industries, embedded printing solutions, cinemas, highway, boarding cards, tax control system and so on.
2 Inch 58mm Original FTP628MCL101 Thermal Printer Mechanism Fujitsu FTP-628MCL101 For Taxi Meters & Cash Registers
| 1.Can I get a sample order first to test the quality and compatibility? | |
| Yes, usually we have samples in stock, customers can easily buy them for testing purpose. | |
| 2.What about delivery time? | |
| For sample, usually 3 days. For bulk order,usually 7 to 15 days,depends on order quantity. | |
| 3.How about Payment terms? | |
| For sample, Paypal, Western Union. For bulk order, T/T prepaid. | |
| 4.How about shipping methods? | |
| DHL, UPS, FedEx,China Post, etc are all ok, we will choose the economical and fast way. | |
| 5.How about the warranty? | |
| All items have 1 year guarantee. | |
| 6.How will you control the printer's quality? | |
| We fully tested every product before shipping out, and also we have QC persons. | |
| 7.Can you make OEM or ODM for products? | |
| Yes, OEM and ODM products are available. |
