Product Description

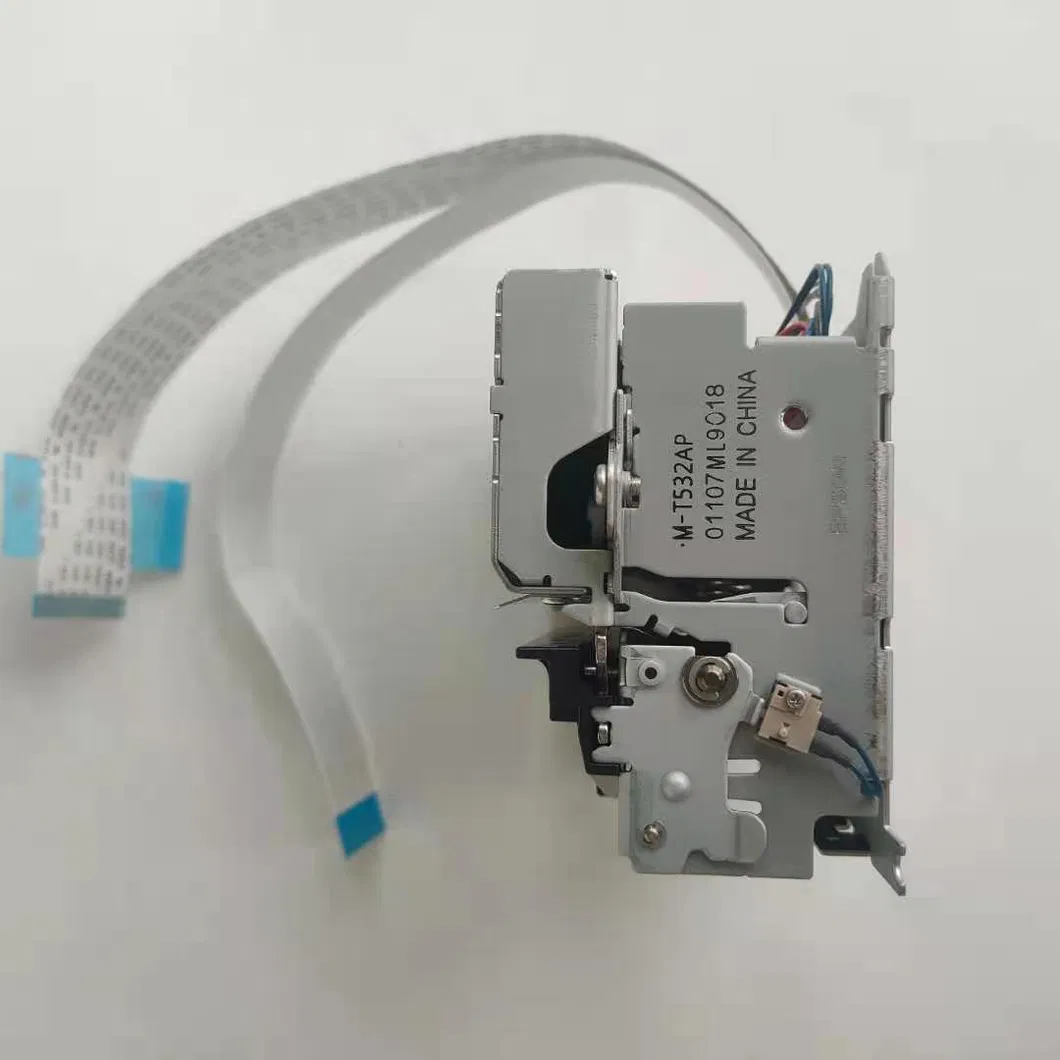

3 Inch 80mm Original/Compatible Embedded Receipt Ticket Kiosk Thermal Printer M-T532AP/AF For Self-Service Kiosk ATM Payment

OVERVIEW

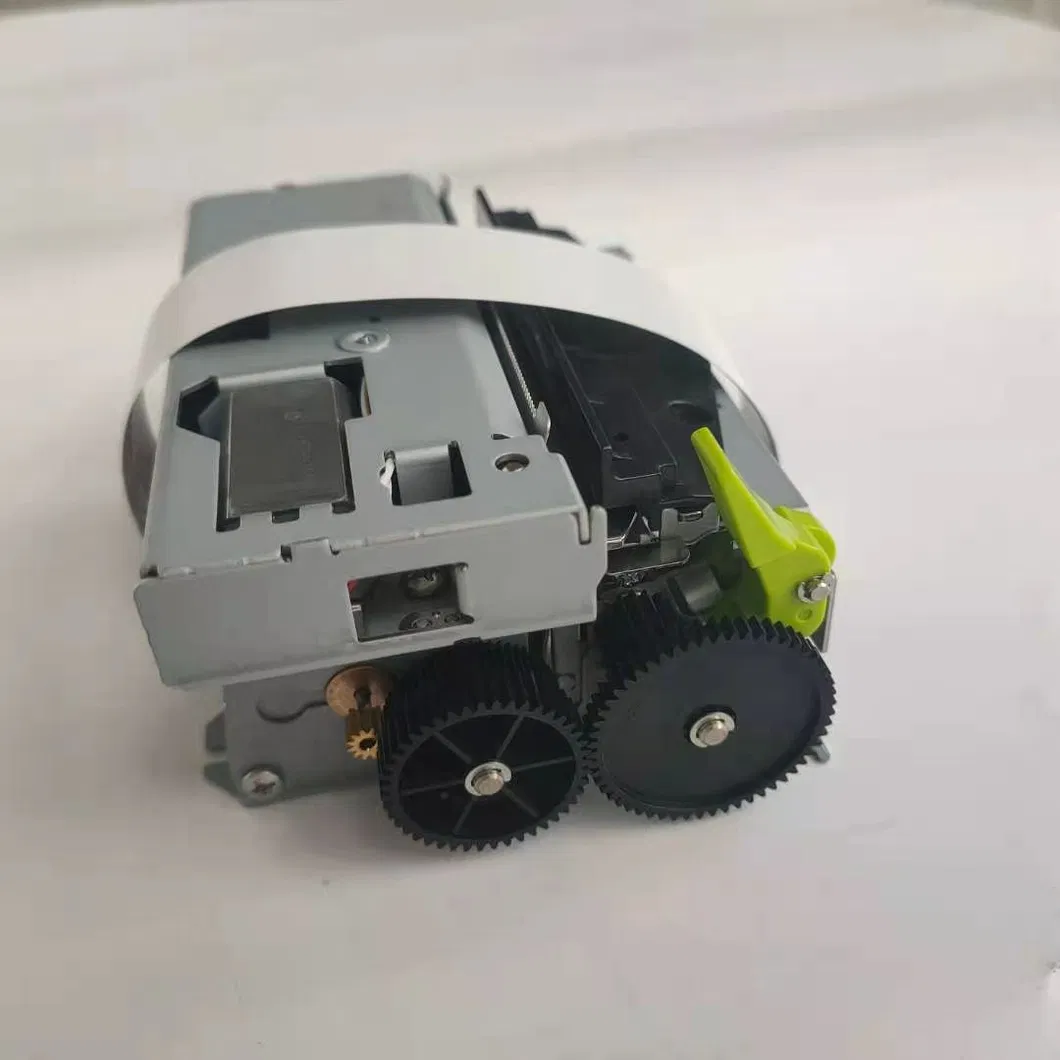

The M-T500 thermal high-performance printer mechanism provides the quick speed and durability required for high-transaction, graphical applications such as ATMS, kiosks and gaming. And it offers both curved and straight paper paths for maximum flexibility in orientation.
The matching Epson BA-T500 controller board with 32-bit microprocessor guarantees the highest possible throughput and unlimited use of Windows® graphics and fonts without sacrificing performance.

HIGHLIGHTS

Kiosk Printer M-T532 AP/AF Printing Solution for Ticket Printing

3 inch 80mm Original/Compatible Embedded Receipt Ticket Kiosk Thermal Printer M-T532AP/AF for Self-service Kiosk ATM Payment

• Fastest printer in its class even in full-graphic mode
• Easily handles thick paper and tickets up to 180 um (7.1 mils)
• Offered with Epson BA-T500 controller board with both serial and parallel interfaces
• High-speed drivers for Windows 95/98 and NT 4.0
• Curl or straight paper path for thick roll or card paper
• Long-life autocutter with choice of full or partial cut
• Resident bar codes and downloadable graphics for label and ticket printing
• One-hand paper loading and jam-resistant

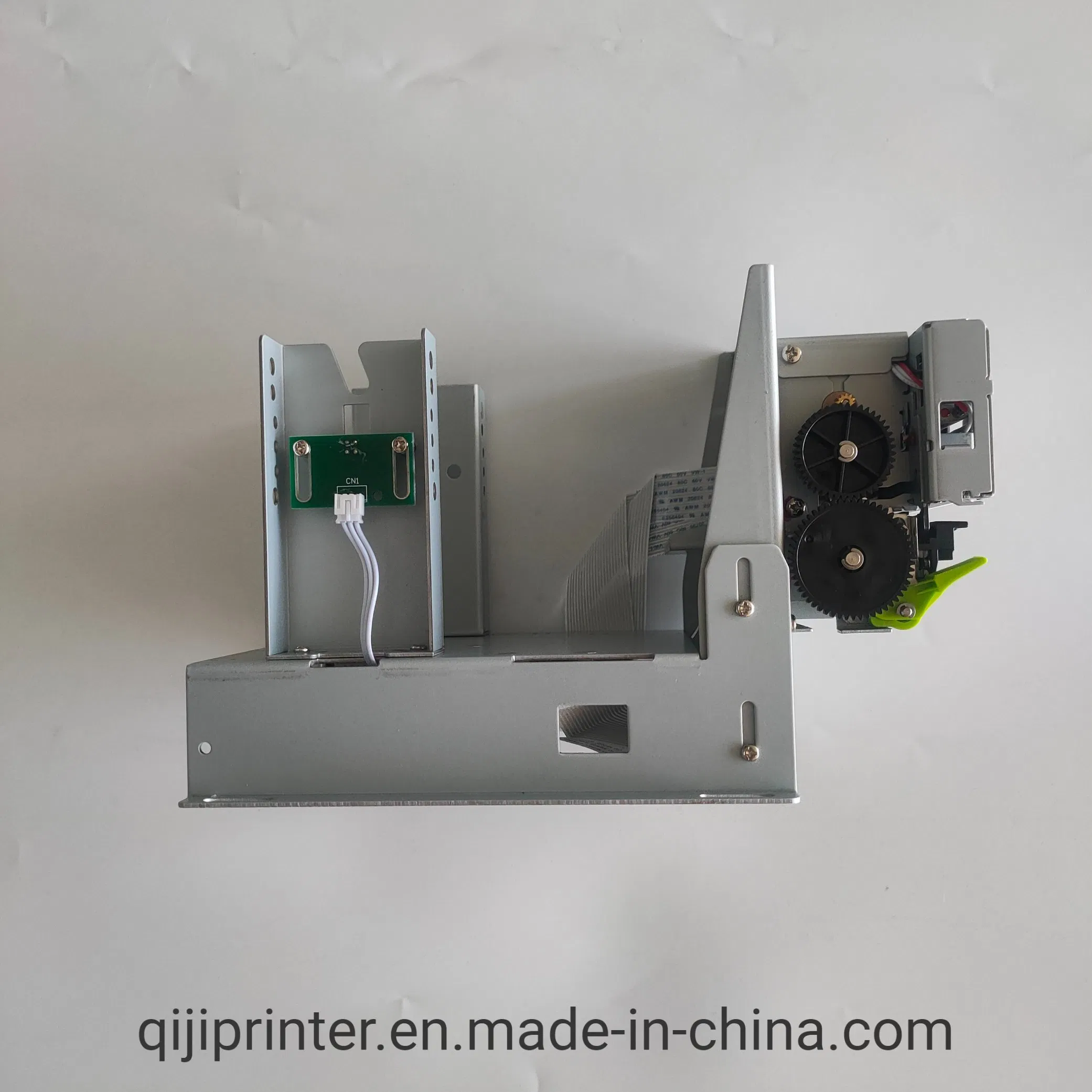

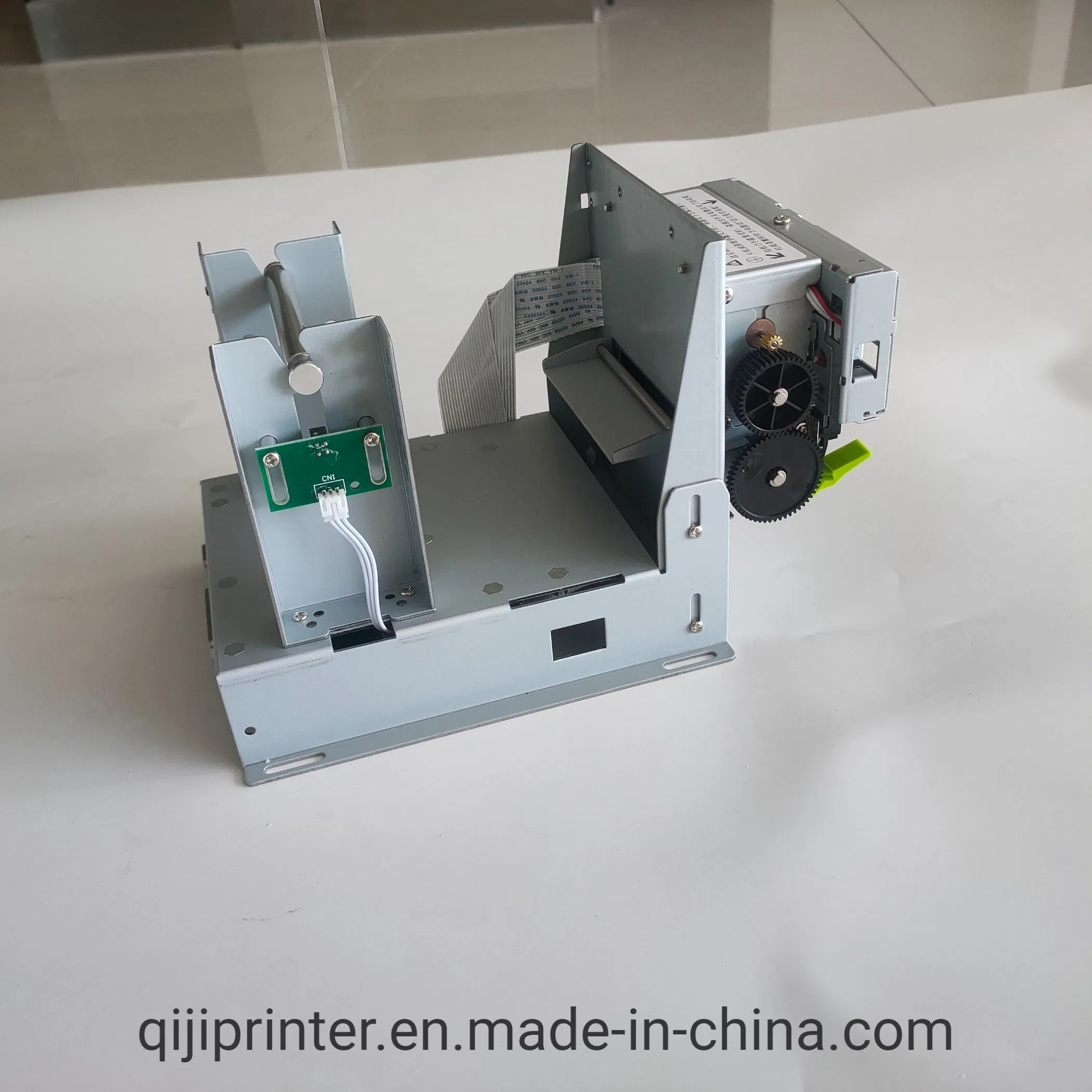

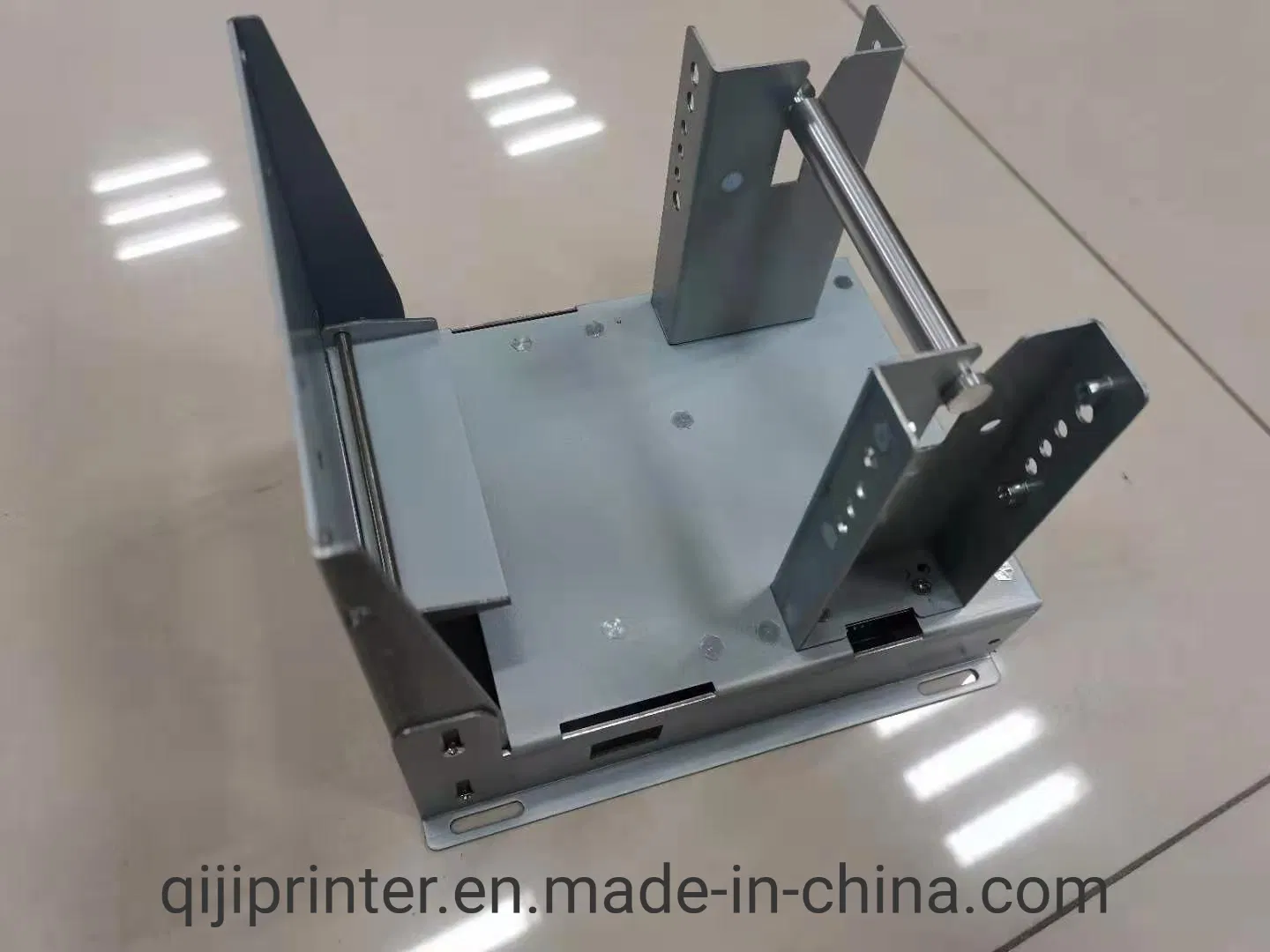

3 Inch 80mm Original/Compatible Embedded Receipt Ticket Kiosk Thermal Printer M-T532ap/Af for Self-Service Kiosk ATM Payment WIth Bracket

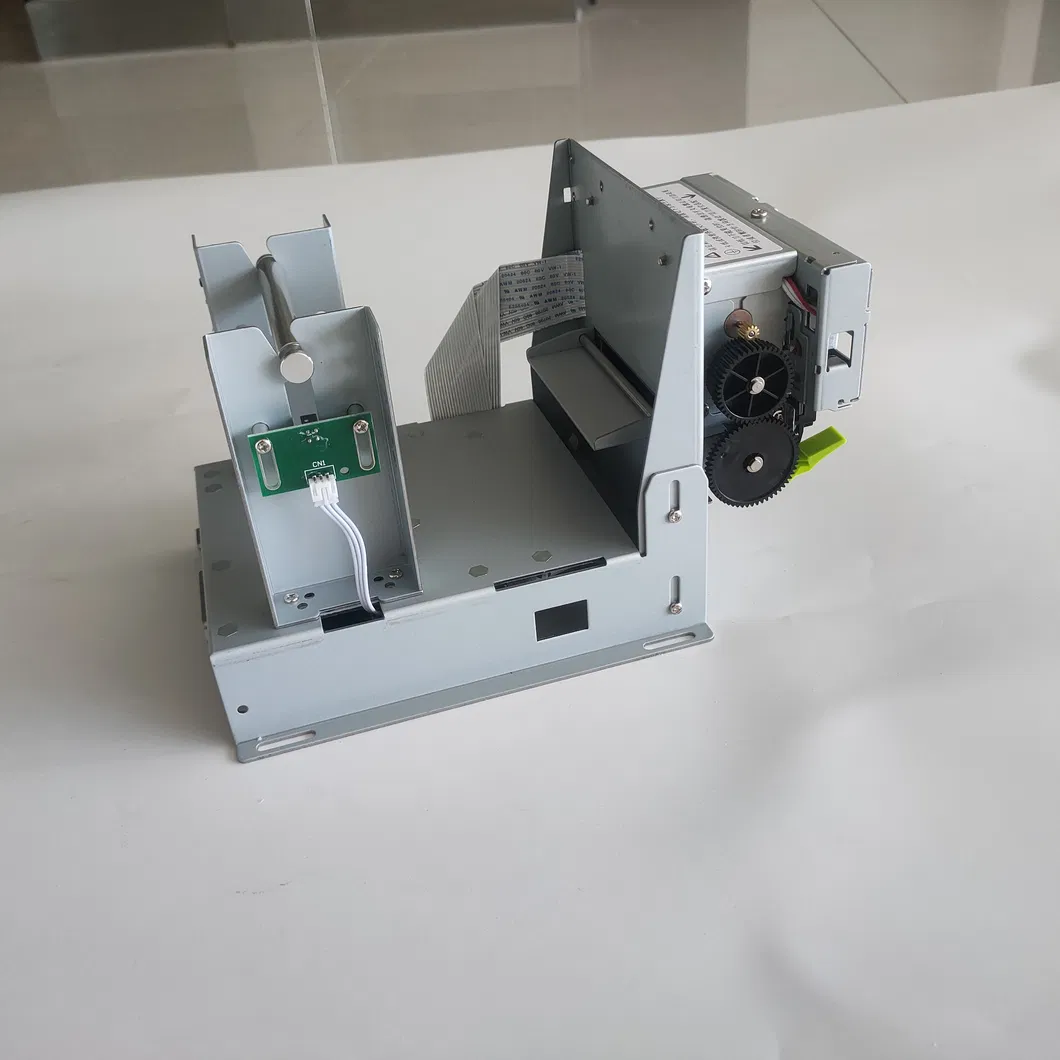

3 Inch 80mm Original & Compatible Embedded Receipt Ticket Kiosk Thermal Printer EPSON M-T532AP/AF For Self-Service Kiosk ATM Payment With Bracket

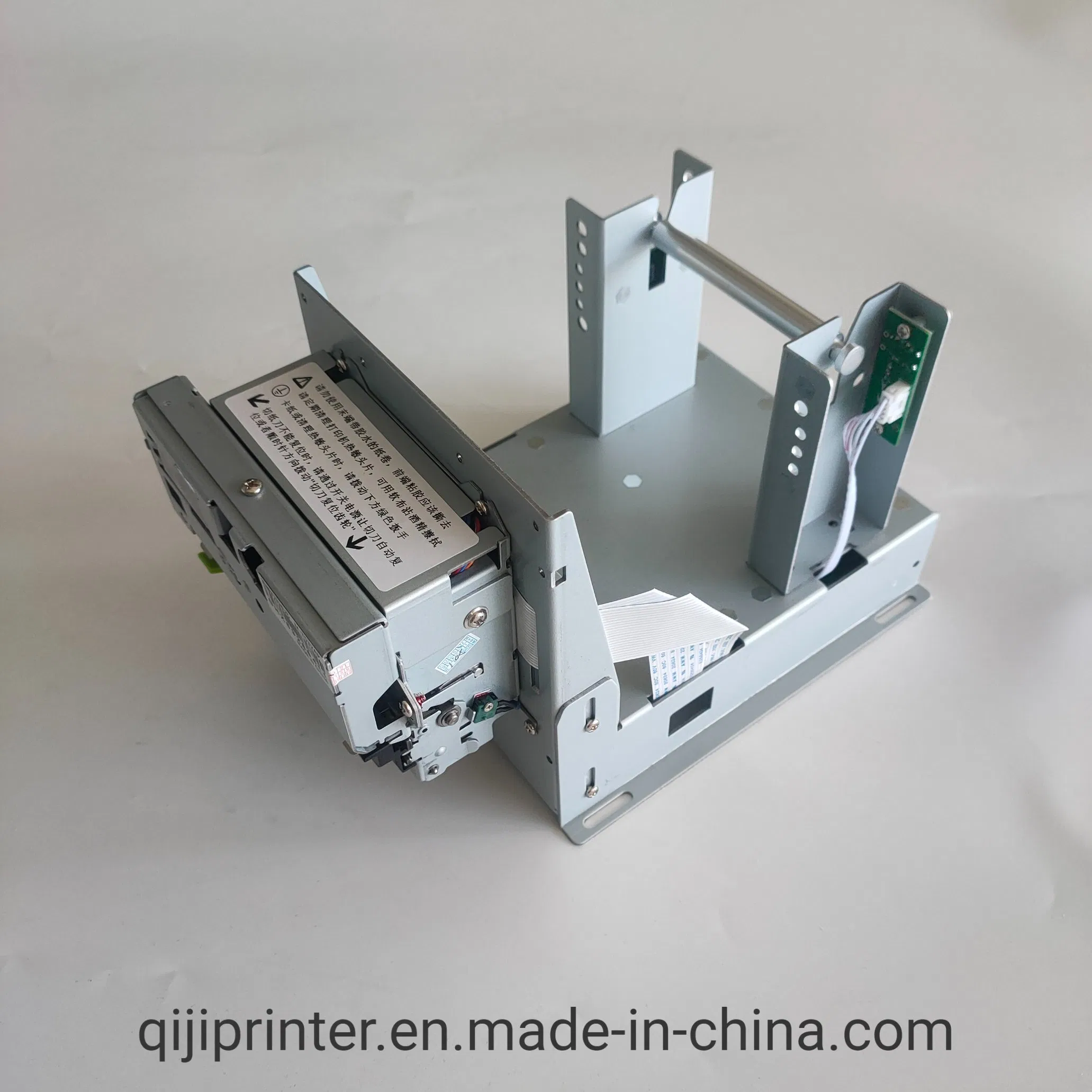

3 Inch 80mm Original/Compatible Embedded Receipt Ticket Kiosk Thermal Printer M-T532ap/Af for Self-Service Kiosk ATM Payment WIth Bracket

Item	M-T532 AP/AF
Print Method	Line thermal dot printing
Dot per Line	576 dots/line
Resolution	8 dots/mm
Print Speed	150 mm/sec
Paper Width	80mm
Paper Thickness	0.06-0.10mm/0.11-0.15mm
Interface	Serial, Parallel
Power Supply	VH DC21.6-26.4V; VDD DC4.75-5.25V
Dimension(L×W×H)	108 x 58 x 20 mm
Life Span	Printing 50km
Life Span	Auto-cutter 1,000,000 cuttings
Operating Environment	Operating Temperature 0~45°C
	Storage Temperature -20° C~60° C
	Head Temperature Via thermistor
Detection	Paper Via photo sensor
Detection	Platen open Via photo sensor

2 KioKiosk Printer M-T532 AP/AF Printing Solution for Ticket Printingsk Printer

3 Inch 80mm Original/Compatible Embedded Receipt Ticket Kiosk Thermal Printer M-T532ap/Af for Self-Service Kiosk ATM Payment WIth Bracket

Lead Time:

Quantity(Sets)	1 - 500	>500
Est. Time(days)	15	To be negotiated

3 Inch 80mm Original/Compatible Embedded Receipt Ticket Kiosk Thermal Printer M-T532ap/Af for Self-Service Kiosk ATM Payment WIth Bracket

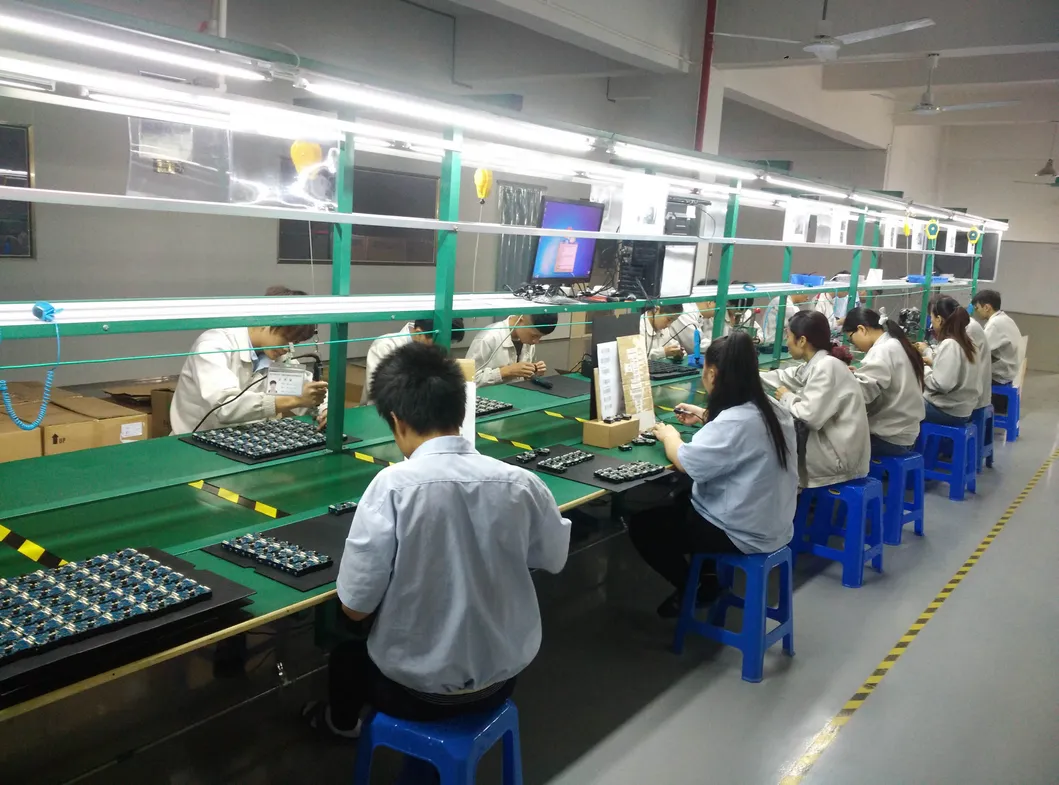

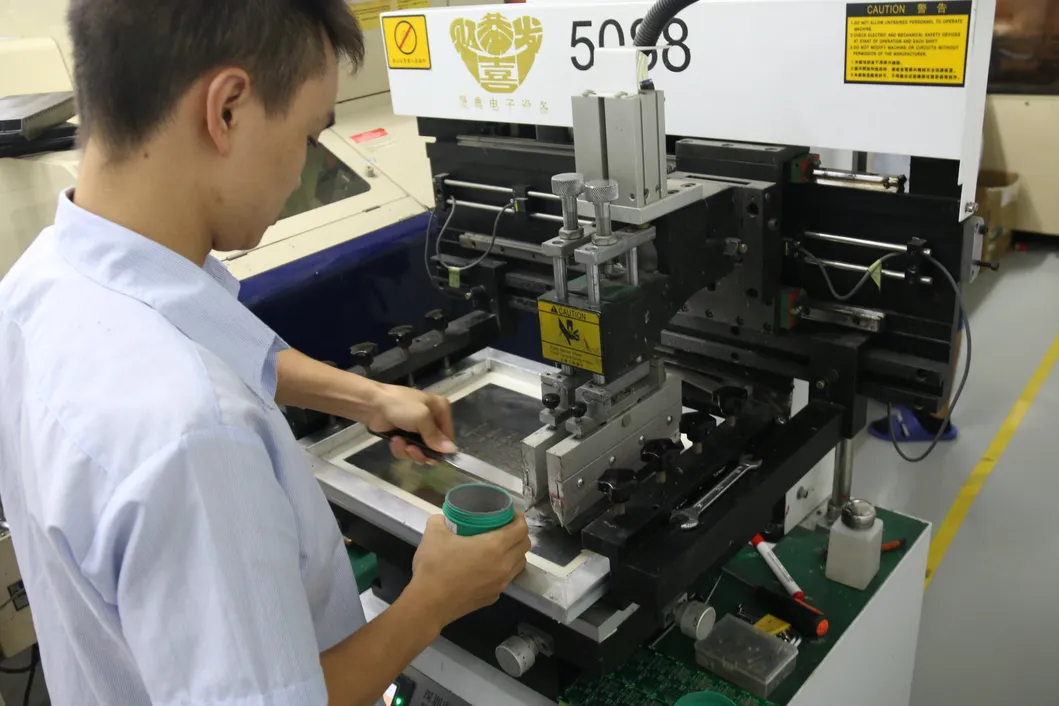

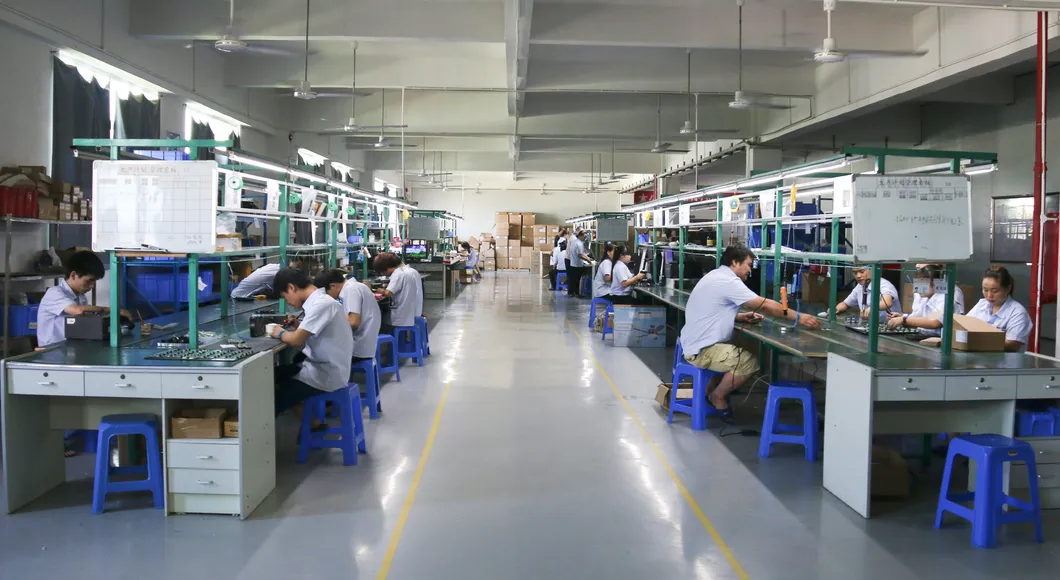

Suzhou Qiji Electric Co., Ltd specializes in designing, developing, manufacturing and marketing of printing equipment.

With experienced and professional R&D team, we successfully launched a series of printing equipment, such as advanced POS receipt printers, portable printers and LCD modules, bluetooth printer, micro panel printer, KIOSK printer, barcode label printer, as well as printer mechanisms (thermal & impact type) and so on.

Our products are widely used for POS/ECR, transport ticketing, instrument analyzers, KIOSK system, electronic medical equipment, self-service solution, fire safety, tax control, shopping malls, car automotive, food and beverage industries, embedded printing solutions, cinemas, highway, boarding cards, tax control system and so on.
