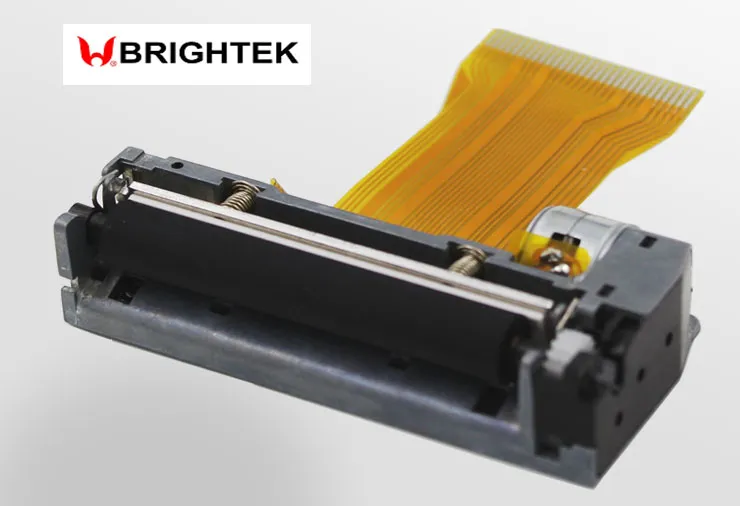

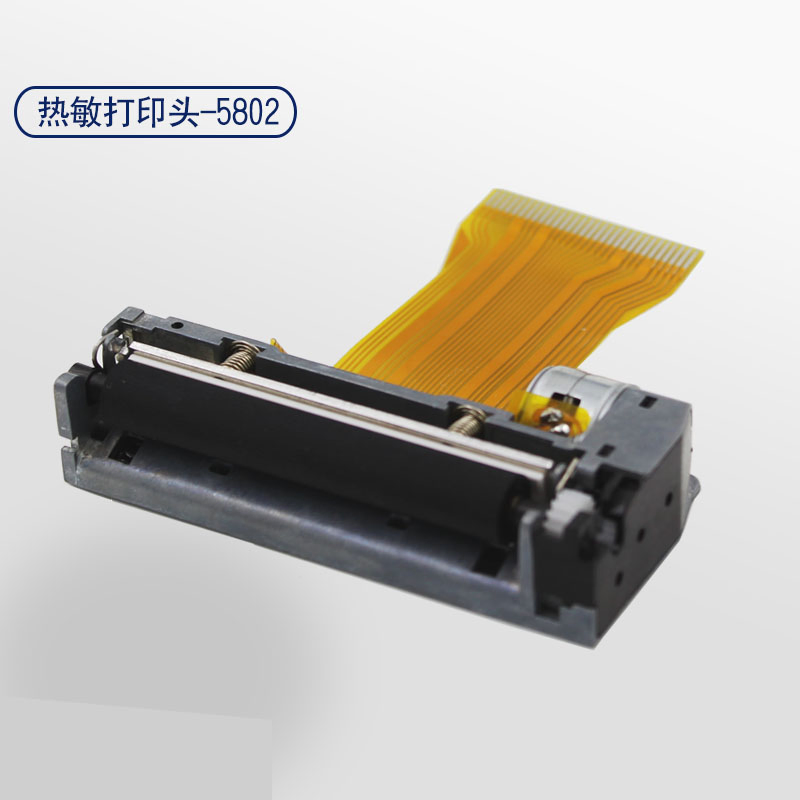

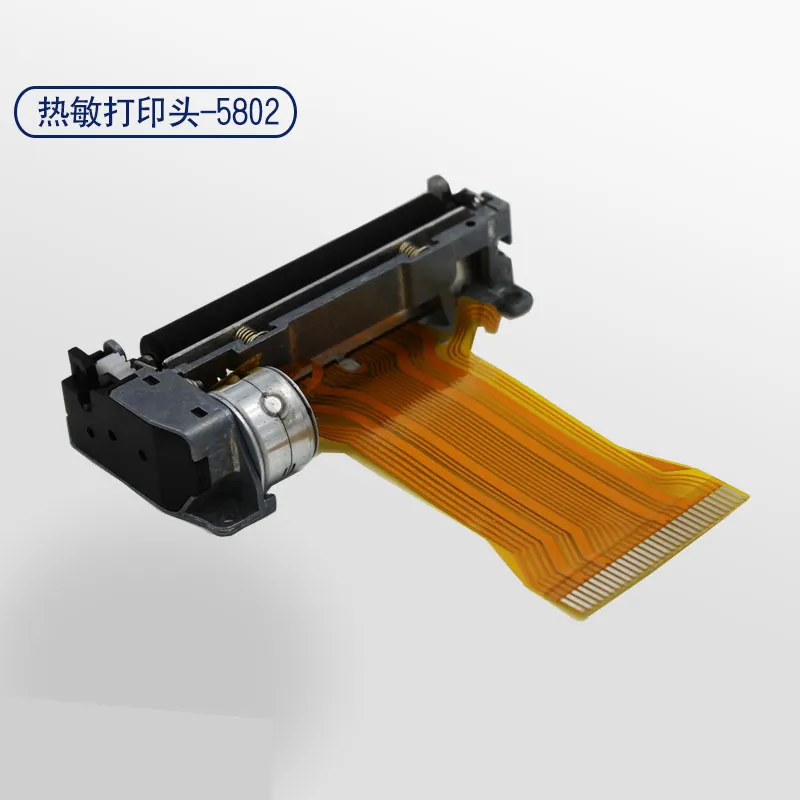

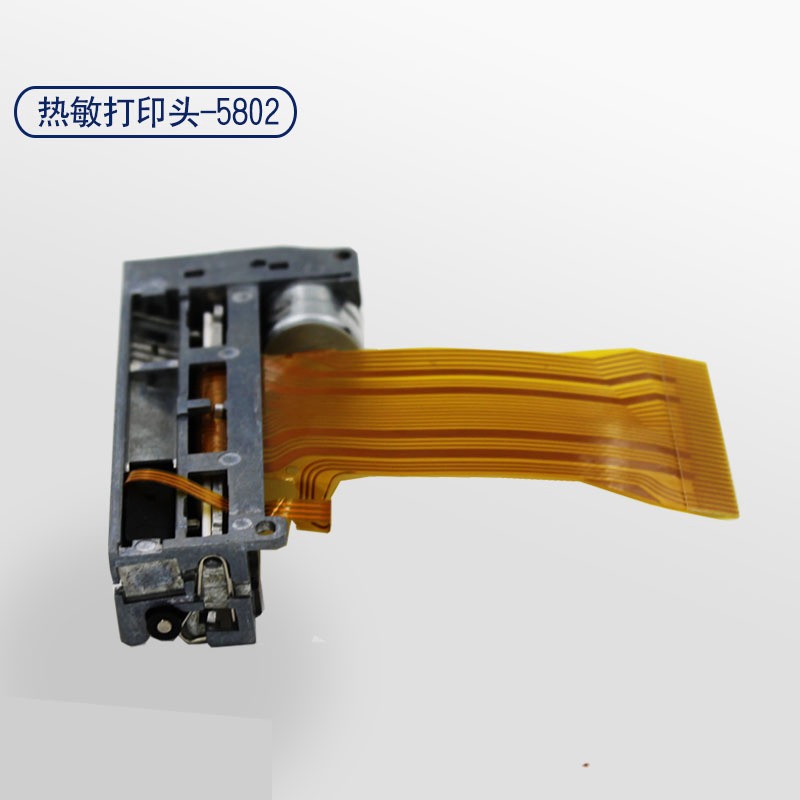

                            58mm Thermal Printer Mechanism (WH- 5802 )
                            • 58mm Thermal Printer Mechanism (WH- 5802 )58mm Thermal Printer Mechanism (WH- 5802 )
                            • 58mm Thermal Printer Mechanism (WH- 5802 )58mm Thermal Printer Mechanism (WH- 5802 )
                            • 58mm Thermal Printer Mechanism (WH- 5802 )58mm Thermal Printer Mechanism (WH- 5802 )
                            • 58mm Thermal Printer Mechanism (WH- 5802 )58mm Thermal Printer Mechanism (WH- 5802 )

                            58mm Thermal Printer Mechanism (WH- 5802 )

                            Thermal Printer Head WH-5802 is a high quality thermal printer head which makes printing more uniform and smooth. It is compact and operating in wide voltage (4.2V-8.5V). The unique design of WH-5802 allows easy to load and performs high reliability.Features:Easy paper loadingSmall size and lightMe......

                            Send Inquiry

                            Product Description

                            Thermal Printer Head WH-5802 is a high quality thermal printer head which makes printing more uniform and smooth. It is compact and operating in wide voltage (4.2V-8.5V). The unique design of WH-5802 allows easy to load and performs high reliability.
                            Features:
                            • Easy paper loading
                            • Small size and light
                            • Metal gear shaft, stable, reliable, long life, excellent heat dissipation
                            • High speed: up to 80mm/s
                            • Wide operating voltage (4.2V-8.5V)
                            • High printing accuracy (8dots/mm)
                            • Long life of mechanical wear (more than 50km)
                            • Low noise: brushless magnetic stepper motor and special plastic gears reduce transmission noise.
                            Specifications:
                            • Printing method:  Thermal printing
                            • Printing width:  48mm (paper width 58mm)
                            • Dot density:  8 dots/mm
                            • Resolution:  384 dots/line
                            • Dot spacing:  0.125mm
                            • Dot size:  0.125 x 0.12 mm
                            • Printing speed:  80mm/s (motor drive voltage DC 8.5V)
                            • Paper feeding accuracy:  0.0625mm
                            • Life of printer head:  ≥ 50km (based on 25°C)
                            • Operating voltage:  4.2V - 8.5V
                            • Operating logic voltage:  2.7V - 5.25V
                            • Operating temperature:  +0°C - 50°C
                            • Operating Humidity:  20% - 85% RH
                            • Storage temperature:  -20°C - 60°C
                            • Storage Humidity:  5% - 95% RH
                            • Compatible to Fujitsu FTP-628MCL101
                            • Dimension:  69.4(±0.3mm) x 32.7(±0.2mm) x 15.3(±0.2mm)
                            • Weight:  29g

                            58mm Thermal Printer Mechanism (WH-5802)
                            58mm Thermal Printer Mechanism (WH-5802)
                            58mm Thermal Printer Mechanism (WH-5802)
                            58mm Thermal Printer Mechanism (WH-5802)
                            58mm Thermal Printer Mechanism (WH-5802)
