Ocbp-005- Url Factory Direct Sell Thermal Barcode Label Printer Multi-Ports

Product Description

Ocbp-005-Url Factory Direct Sell Thermal Barcode Label Printer Multi-ports

Label Printer,Thermal Label Printer,Barcode Printer

1.Product Descriptions:

1)Features:

Label paper auto position;

Labels peel off, tear off automatically;

Adjust the printer head pressure;

Compatible with plenty of label software;

BMP, PCX, BAC images download store;

Support Serial, USB, LAN together;

Support PDF417, QR CODE, DOTMATRIX;

2)Specifications:

Printer Model	OCBP-005
Resolution	203 DPI (8 dot/mm)
Printing Method	Direct Thermal
Printing head temperature sensor	Thermal sensitive resistance
Printing head position sensor	Micro switch
Paper exists detection	Photoelectric sensor
Printing Speed	127 mm / sec (max); 50.8mm/sec (min)
Printing Width	16 mm ~ 82 mm
Media	Media Type: Paper roll, sticker, label fold, etc. Media diameter: Inner dia:25mm; Outer dia: 80mm
Internal font	FONT 0 to FONT 8; Commonly used in single-byte fonts
Enlargement & rotation	1 to 10 times enlargement in both directions; 0 Degree , 90 Degree, 180 Degree, 270 Degree, 360 Degree rotation
Paper off type	Tear off & peel off
Memory	2MB Flash Rom, 2MB DRAM
Image	Monochromatic PCX, BMP image files can be load to FLASH, DRAM
Barcode	CODE128, EAN128, ITF, Code39, Code93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5, CPOST, MSI, MSIC, PLESSEY, ITF14, EAN14, PDF417, QR CODE, DATMATRIX

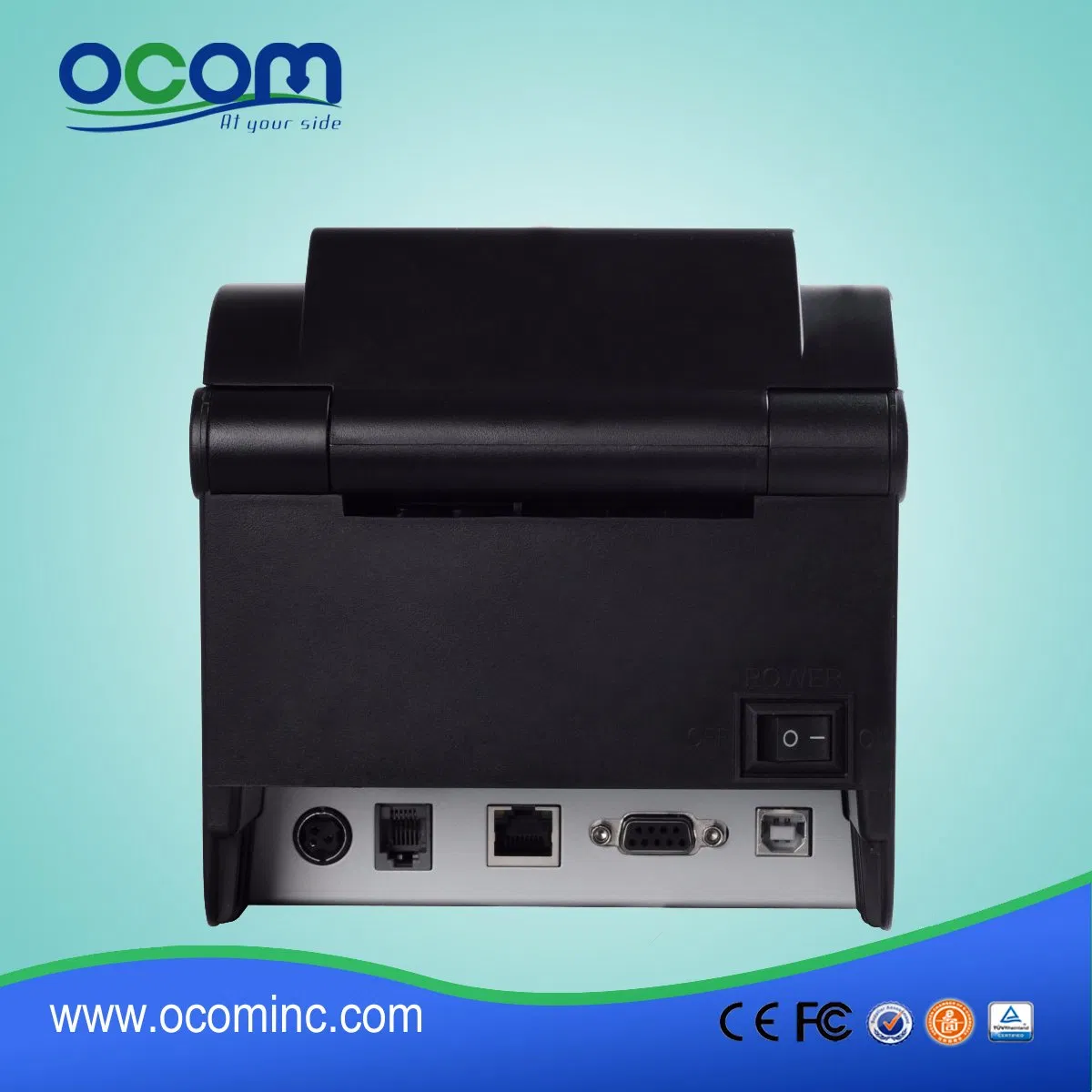

Interface	USB + RS232 + LAN or USB
Power	Input: 24VDC, 2.5A
Environment	Operating Temperature: 5 Degree C to 45 Degree C Storage Temperature: -40 Degree C to 55 Degree C Operating Humidity: 20% ~ 80%, non-condensing, Free air Storage Humidity: <=93%(40 Degree C), non-condensing, Free air
Dimension	Size: D220mm * H148mm *W150mm

2.Product Overviews:
Ocbp-005-Url Factory Direct Sell Thermal Barcode Label Printer Multi-ports

Label Printer,Thermal Label Printer,Barcode Printer

Ocbp-005-Url Factory Direct Sell Thermal Barcode Label Printer Multi-Ports

FAQ:

1). MOQ policy

No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.

For customized production, you can discuss the MOQ with our sales representative directly.

2). Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification.

All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments.

You can buy the samples from us directly using t/t, western uion, or paypal.

3). Warranty
OCOM is dedicated to providing most cost-effective products and services with reliable quality that will meet customers'satisfication;

We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time.

Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty;

Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier.

For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.

4). Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Escrow Service is powered by szocomtech.en.made-in-china.com. Currently,you can pay using Moneybookers, Visa, MasterCard and bank transfer. You can also pay with select debit cards including Maestro, Solo, Carte Bleue, PostePay, CartaSi, 4B and Euro6000.
