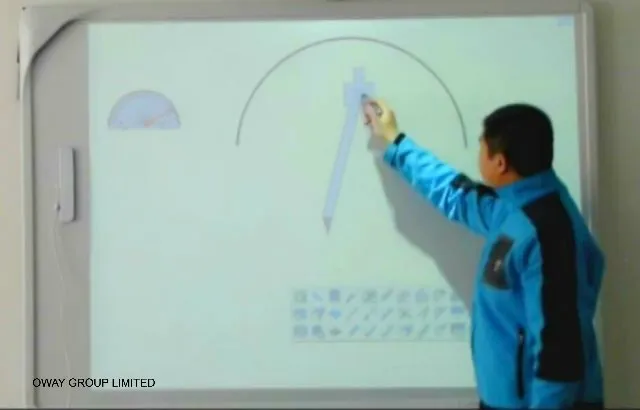

High Positioning Accuracy Finger Touch Interactive Whiteboard FT6

            IR Touch Interactive Whiteboard No Projector for Smart Classroom Learning

Product Description

Finger touch portable Interactive Whiteboard system is a positioning system based on the latest laser infrared technology .Use this system you can operate projector and computer easier and achieve more excellent presentation effects by finger.





                With years of export experience along                          High stability





                      auto calibration                                                                   Portable



 Laser Image Calibration Technology

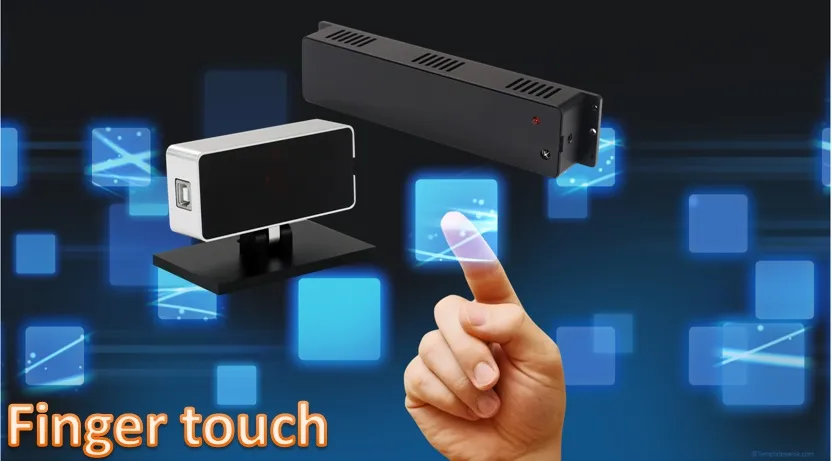

The finger touch FT6 with two parts: emitter and sensor. Emitter can be attached on flat surface. It emits infrared laser curtain on the surface which is about 1mm thick invisible light and parallel with the projection screen surface, 1-2mm above the screen surface. When the fingers or any non-transparent objects touch this virtual surface, the light will be reflected and detected by the sensor. Computer will figure out the position of the mouse by accurate calculating the reflected light position.


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Specifications:

Calibration: Automatic(5s) / Manual (25/36 points)/Semi Automatic (4 points)

Gesture Recognition: Single finger is for  Write, Two fingers for move, zoom in or out and scroll bar, Palm for Erase,Palm stay 2s for Spot, Palm two clicks for back to desktop.

Multi-touch: Ten points touch, write and eraser can do together.

Latency:<30ms

Filter: Software auto-control, enhance stability.

Minimum Active Size: 40 inch

Max Active Size:120inch( no sunshine room);100inch( sunshine room)

Technology: Laser Image Calibration Technology

Positional Accuracy:±1 Pixel (Resolution: 4096*4096)

Aspect Ratio: 4:3,16:9,16:10

Projector ratio:3.0, installation distance:2.15~3.2M.

Laser Beam: Short throw/ Long throw: 3units; Ultra short throw: 4units.

Laser safety: CLASS I (safety laser)

Wave of the laser: 808nm

Power: 5w

Power of Laser Beam:150mW/unit *3

Power requirements: 5V/1.5A

Signal refresh rate: 120fps.

Connect: The sensor and computer are connected by USB Cable; Emitter and

Sensor are wireless; Emitter just need power.

Weight: 0.5kg

OS Requirement: Windows XP, Vista, Windows 7, Windows 8, 10

Software: Calibration software(driver) and whiteboard software

Certification: CE, FCC

Warranty: 2-year

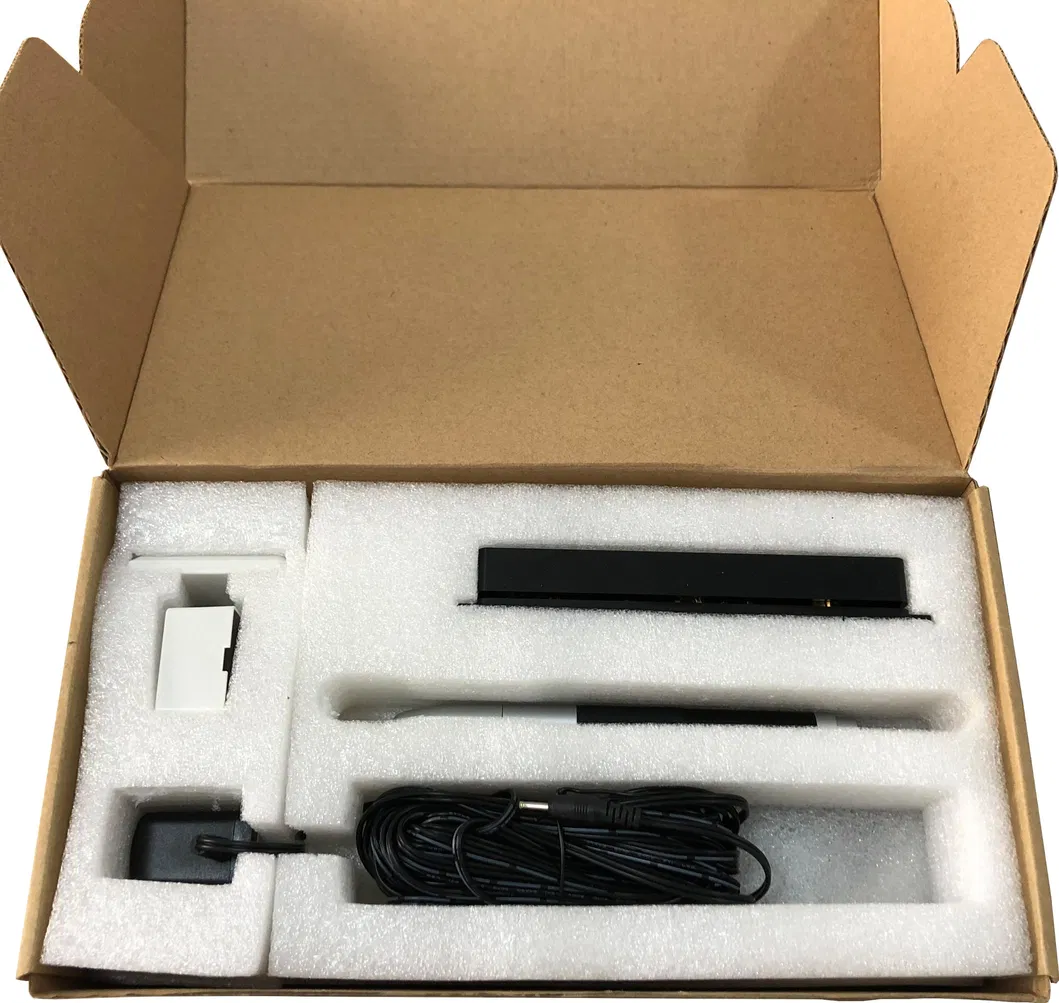

Package: 1. Sensor 2.Emitter 3.Mounts 4.USB cable (12m) 5.Pionter  6.Power Adaptor 7. Manual


Our Advantage:

1.mini size, durable, not easily damaged

2.100 users at the same time.

3.Active projection area is flexible from 30-200inch. it can use in small classroom and big meeting room.

4.Turn the LED/LCD display screen(monitor,smart TV) and common board and wall to interactive touch screen.

4.Support for 3rd party educational software, any Internet content, and applications installed on your computer.

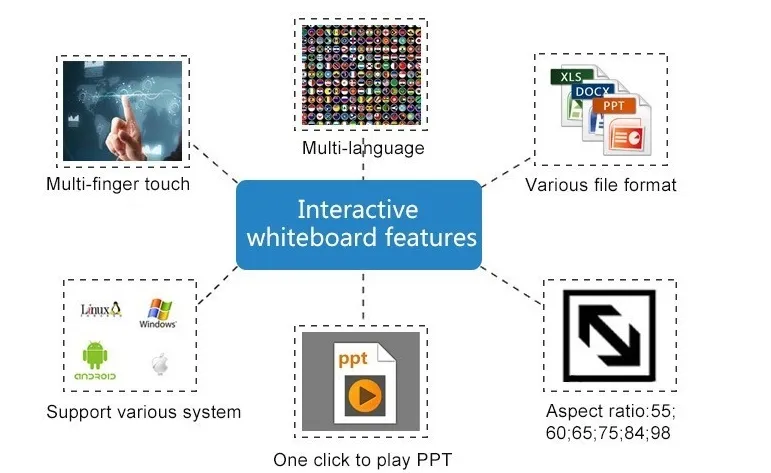

Feature:

1. Technology
    Adopting infrared high speed tracking technology.

2.  Various features:
     Strong adaptability
     Easy installation
     Supporting big screen to 150"
     Intense anti-interference
     Low cost performance.

3.  Various installation ways:
     Put on the desk or projectors
     Ceiling-mount installation

4.  USB Cable can be extended to 20M (MAX).

5.  Modularization solution
     Enables other products to integrate interactive function easily.
6.  New design pen
     excellent hand-feel and strong signal, which makes the writing closest to the hand-writing.
     Tailor-made pen point
     Guarantees the smoothing writing on any surface of any material, even the wall.
7.  Retractable stylus
     Can reach to a large scale and meet different customers' need.
8.  Quickly disassembled
     The storage and maintenance are very easy.
 9. High response speed

10. High resolution
       Makes it have excellent operating precision and nearly perfect writing track.

 11. Plug and Play
       USB interface
       HID form of communications,
       plug and play without extra power

 12. Strong adaptability simple and easy installation method. The portable
       interactive whiteboard makes the user's investment and maintenance's costs down
       to the minimum.

Installation Ways:


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Packing & Delivery
Packaging Details:Single box + carton or customer specified box
Delivery Time:3 working days



FAQ
 Why the software can't save setting and calibration?
•Windows 7 64bit & Vista 64bit :
Close the UAC or Right click SmartIWB and select "Run as Administrator"
•Windows 8:
Right click SmartIWB and select "Run as Administrator"
