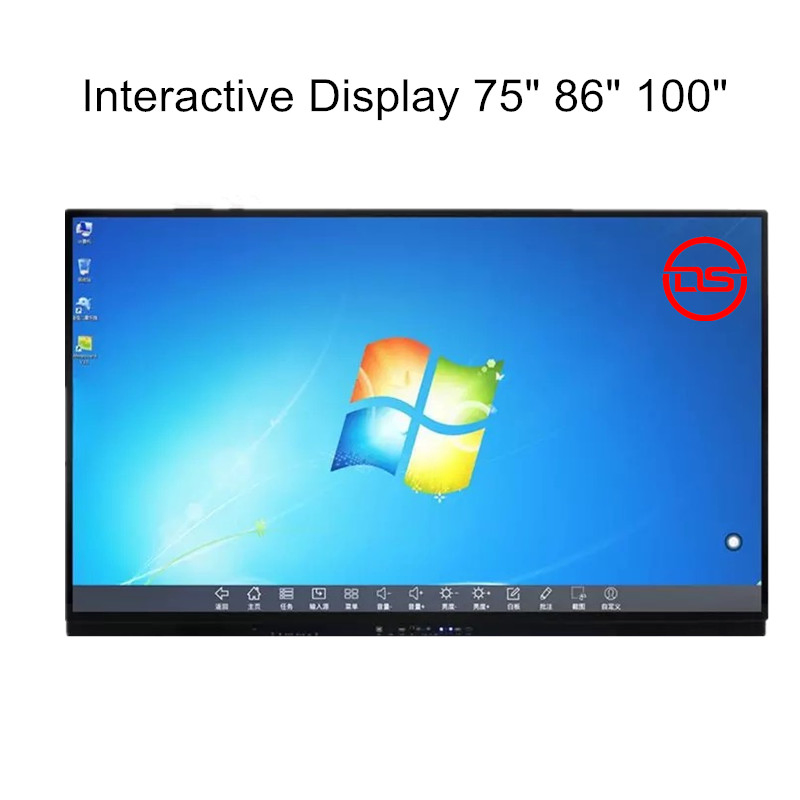

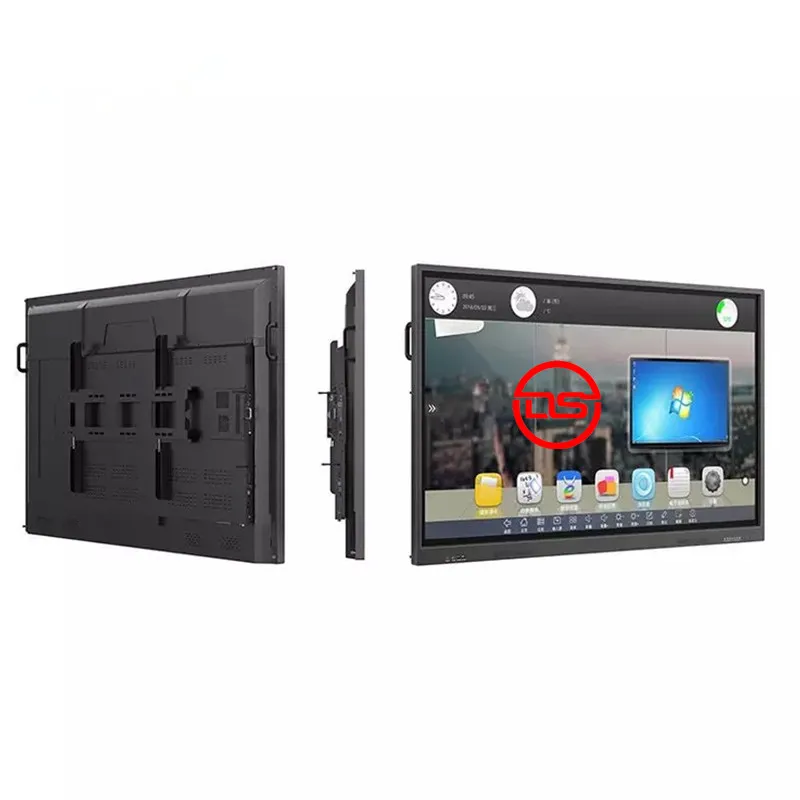

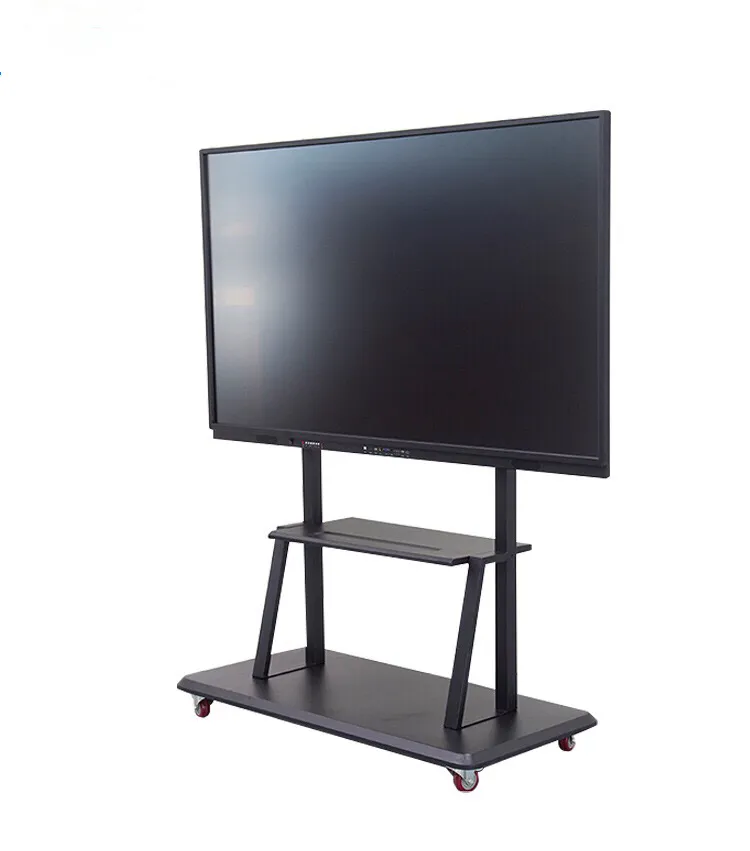

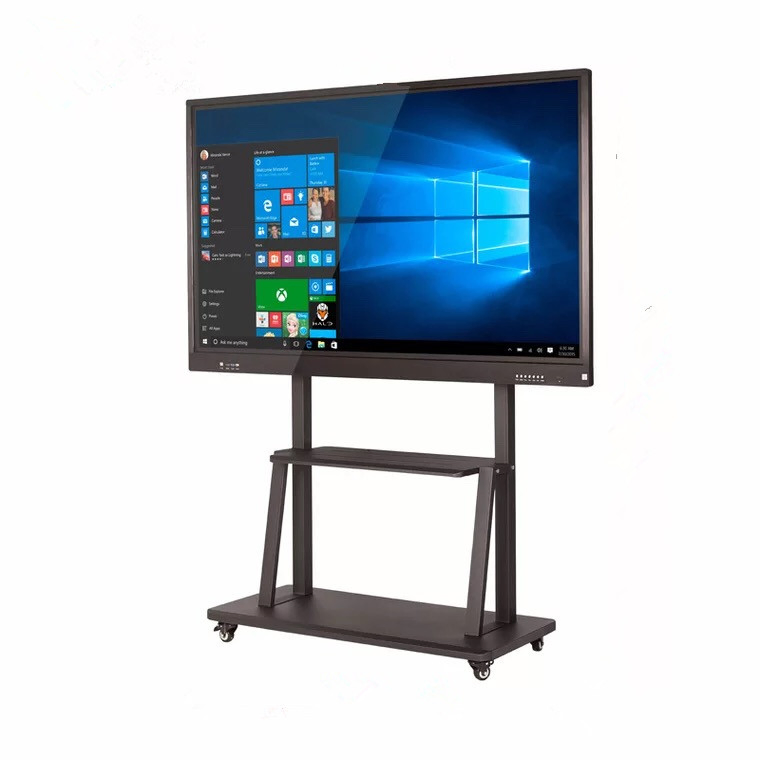

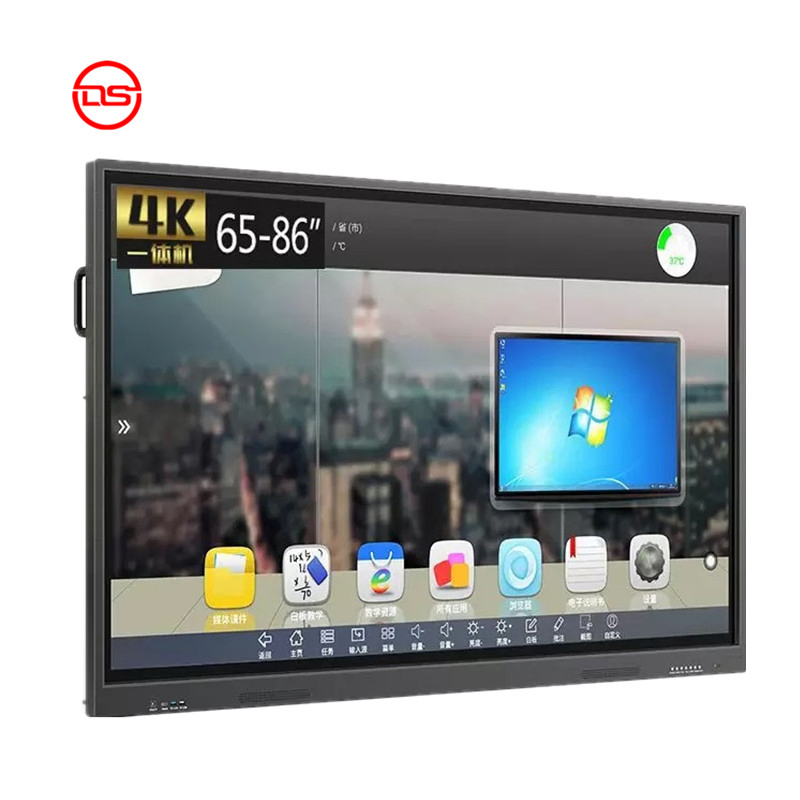

infrared touch audio visual 55" Interactive flat panels with android 6.0
Infrared touch audio visual 55" Interactive flat panels with android 6.0Features:1.Screen Size Optional :55" 65" 75" 86" 98" and 100" 2. 4K resolution A grade touch screen lcd panel 3.Android 6.0 + Windows 10 dual Operating system 4.Infrared 10points touch and wri......
Send Inquiry
Product Description
Infrared touch audio visual 55" Interactive flat panels with android 6.0
Features:
1.Screen Size Optional :55" 65" 75" 86" 98" and 100"
2. 4K resolution A grade touch screen lcd panel
3.Android 6.0 + Windows 10 dual Operating system
4.Infrared 10points touch and writing
5. Interactive whiteboard App etc can be installed
6.Support air mirroring of phone or laptop
7.Making notes/annotations on screen freely
8.TV functions+ 10W big speakers + WIFI connection
9.RAM 1G+4G Storage or 2G+32G system, quick response
10. OPS computer i5, i7 processors 4G+128G optional
11. 2Years Warranty
Functions Of Touch Screen Whiteboard:
1. Built-in Android/Windows system: system will recognize and category different file (audio, office files,pictures etc)
2. One button enter into energy-saving model or power on off or change signal source
3. Support OPS (optional) expand to optimize computer
4. Signal source intelligent identification,when signal input,equipment changed into related channel,no need to adjust manually
5. Black screen green energy saving function:one button turn off the backlight of LCD screen without turning off the power supply,click screen or press any button to wake up backlight,easy control
6. TV function
7. Can be used as advertising machine
8. Built-in audio
9. Interactive Whiteboard function: 10points IR touch ,easy to write and erase(wiping gesture), support 2 points zoom in/out,dragging.
10: Making notes:support to making notes and save as image,pdf file, scan QR code to share,good assistant for speaker. Saving and making meeting memo immediatly.
Optional:
1. Available size: 65" 70" 75" 86" 98"touch screen kiosk,
2. Windows system: supports customized windows 8.1/10 OS
3. Touchscreen: supports customized IR touch (10 points)/capacitive touch (10 points)
4. Optional: 3/4G module, camera, NFC, beacon, thermal printer, magic mirror
Application of digital signage LCD whiteboard
Specification Of Screen
LCD Advertising Displayer Input/Output Interface
About DS
Shenzhen DS Technology Co., Ltd. is established in 2013 in Shenzhen.DS is a high-tech enterprise specialized in development, production and marketing of the special lcd display. Our products are divided into several series: Industrial LCD monitor, Touch screen LCD monitor(55"-98"), LCD video wall(46"-55"), video wall processor ,controller, matrix switcher ,HDMI /VGA splitter and other industrial screen display
Our factory locates in Shenzhen, owning core experienced technology team. We are certificated ISO9001 : 2008 quality management system and ISO14001 : 2004 environmental management system. We have strict quality control process to ensure every product can meet our customer's requirement.
DS believes in profession, honesty and integrity will bring our customer value ,we dedicate our team in providing quality product and service. And we believes that is our brand value.
Our Advantage
1. Experienced engineers and sales with big lcd industry manufacturer and project background
2. ISO 9001 ,CE,ROHS, 3C,FCC Certificated products: touch screen kiosk, smart whiteboard touch screen and seamless bezel video wall
3. Full industrial display chain resources : LCD video wall,touch screen kiosk,all in one pc, interactive whiteboard,touch screen monitor,video wall controller,matrix, video splicing processor, matrix switcher and VGA HDMI cable etc accessories.
4. Original factory lcd screen,Reasonable price ,high quality and good after-sale tech support
5. Low MOQ ,Short delivery time ,flexible payment way
6. Quick response ,provide free training for customers.
Shipping and Payment
1.Payment term : T/T 30% down payment before production,the 70% balance should be paid before shipment after inspection.
2.Warranty: 12 months warranty .Lifetime maintainance.
3.RMA policy: customer bear all the freight and duty charge to factory,and the factory afford retum freight charge.
4.Remark: ROHS, CE & FCC certificates in e-file format are available.
5.PackagE:LCD display touch screen is packed in carton box with EPE protection.And carton will be packed with wooden case in international shipping.
What we do?
DS is decated in LCD video wall projects, we have over than 5 years in doing projects and installment the big size 55" 65" etc big screen video wall project. And we also provide processors, controllers , metal frame for displayer and video wall projects and advertising projects.Accessories like HDMI-VGA cable and converter/adpter which is necessory is also in our catagory to support our customers.
Why Choose us?
1. Experienced engineers and sales with big lcd industry manufacturer and project background
2. ISO 9001 ,CE,ROHS, 3C,FCC Certificated products: touch screen kiosk, smart whiteboard touch screen and seamless bezel video wall
3. Full industrial display chain resources : LCD video wall,touch screen kiosk,all in one pc, interactive whiteboard,touch screen monitor,video wall controller,matrix, video splicing processor, matrix switcher and VGA HDMI cable etc accessories.
4. Original factory lcd screen,Reasonable price ,high quality and good after-sale tech support
5. Short delivery time ,flexible payment way
6. Quick response ,provide free training for customers. Any queries,please contact us freely
Features:
1.Screen Size Optional :55" 65" 75" 86" 98" and 100"
2. 4K resolution A grade touch screen lcd panel
3.Android 6.0 + Windows 10 dual Operating system
4.Infrared 10points touch and writing
5. Interactive whiteboard App etc can be installed
6.Support air mirroring of phone or laptop
7.Making notes/annotations on screen freely
8.TV functions+ 10W big speakers + WIFI connection
9.RAM 1G+4G Storage or 2G+32G system, quick response
10. OPS computer i5, i7 processors 4G+128G optional
11. 2Years Warranty
Functions Of Touch Screen Whiteboard:
1. Built-in Android/Windows system: system will recognize and category different file (audio, office files,pictures etc)
2. One button enter into energy-saving model or power on off or change signal source
3. Support OPS (optional) expand to optimize computer
4. Signal source intelligent identification,when signal input,equipment changed into related channel,no need to adjust manually
5. Black screen green energy saving function:one button turn off the backlight of LCD screen without turning off the power supply,click screen or press any button to wake up backlight,easy control
6. TV function
7. Can be used as advertising machine
8. Built-in audio
9. Interactive Whiteboard function: 10points IR touch ,easy to write and erase(wiping gesture), support 2 points zoom in/out,dragging.
10: Making notes:support to making notes and save as image,pdf file, scan QR code to share,good assistant for speaker. Saving and making meeting memo immediatly.
Optional:
1. Available size: 65" 70" 75" 86" 98"touch screen kiosk,
2. Windows system: supports customized windows 8.1/10 OS
3. Touchscreen: supports customized IR touch (10 points)/capacitive touch (10 points)
4. Optional: 3/4G module, camera, NFC, beacon, thermal printer, magic mirror

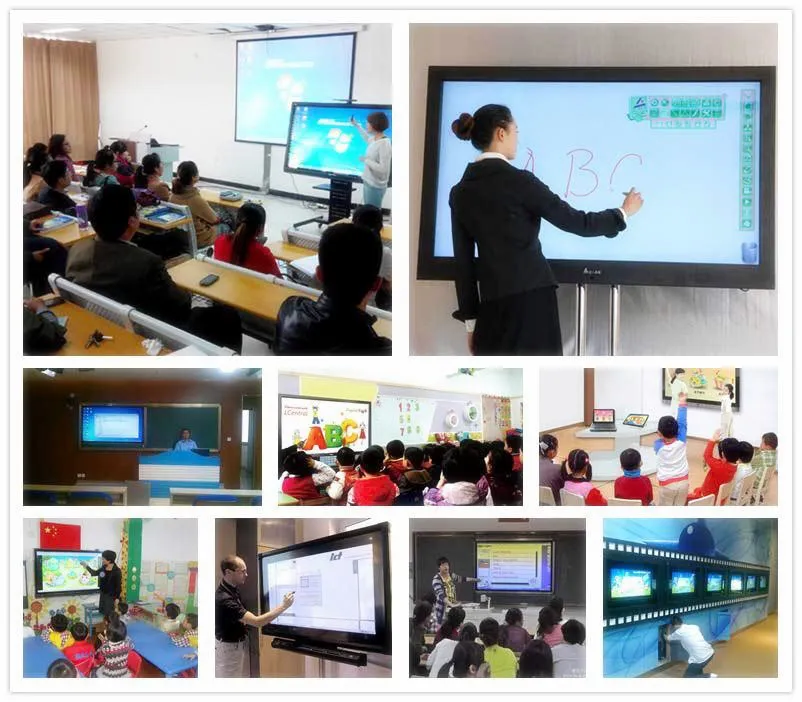

Application of digital signage LCD whiteboard
- Education: school\university\training school
- Conference system: telecommunication-conference system
- Commercial: Outlets\ showroom\ 4S shops\ queen management system\building info. checking system
Specification Of Screen
| Specification | Type | Parameter | |
| Panel | LCD Size | 55" | |
| Light source | LED backlight | ||
| Resolution | 1920 x 1080pixels | ||
| Brightness | 300cd/m²(typ.) | ||
| Contrast ration | 1000:1(typ.) | ||
| Pixel pitch | 0.63mm x 0.63mm | ||
| Frame rate | 60Hz | ||
| Viewing Angle | 178°(H)/178°(V) | ||
| Life | 30,000hrs(min.) | ||
| Color saturability | 68% | ||
| Visual area | 1209.6 (H)mm x 680.4(V)mm | ||
| Color depth | 16.7M | ||
| Android | CPU | Architecture | 64 bit A53 |
| Working frequency | 1.2GHZ | ||
| Number of cores | Dual-cores | ||
| RAM | DDR3: 1G ; eMMC:8G | ||
| System Version | 4.4.2 | ||
| Power | Voltage | Rated 100-240V , Max. 90-264V~50/60Hz | |
| Max. power consumption | ≤130W | ||
| Standby power consumption | <0.5W | ||
| Speaker | 2 x 10W(max) | ||
| Power supply (AC) input | 100-240V | ||

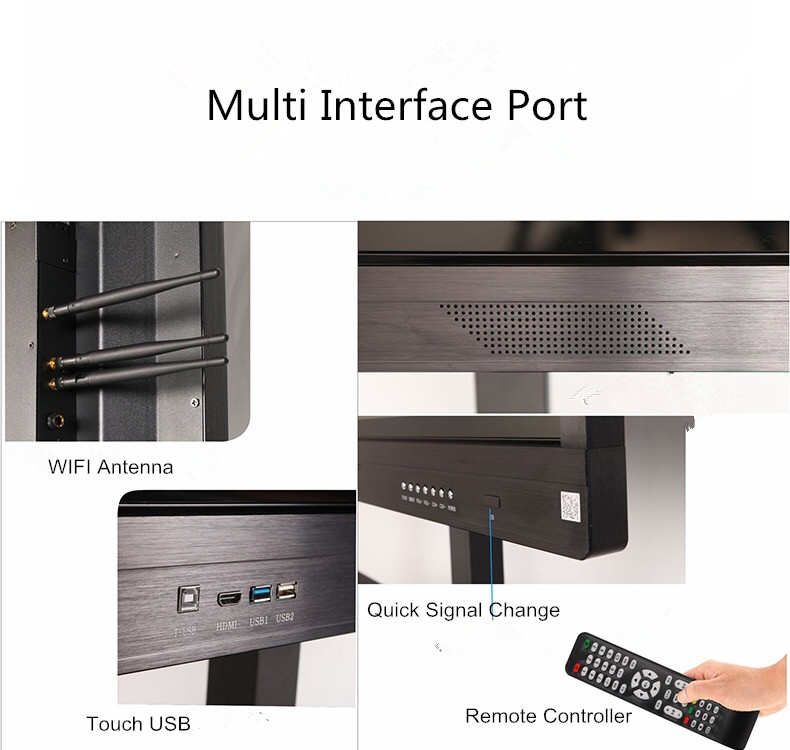

LCD Advertising Displayer Input/Output Interface
| Input Interface | LAN In Interface | 1 |
| DP Interface | 1 | |
| HDMI Interface | 2 | |
| VGA Interface | 1 | |
| PC-AUDIO Interface | 1 | |
| YPBPR Interface | MINI x 1 | |
| AV In Interface | MINI x 1 | |
| USB2.0 | 1 | |
| USB3.0 | 1 | |
| TOUCH-USB | USB2.0 x 1 | |
| Output Interface | AV Out Interface | MINI x 1 |
| EARPHONE Interface | 1 | |
| OPTICAL Interface | 1 | |
| LAN Out Interface | 1 |
About DS
Shenzhen DS Technology Co., Ltd. is established in 2013 in Shenzhen.DS is a high-tech enterprise specialized in development, production and marketing of the special lcd display. Our products are divided into several series: Industrial LCD monitor, Touch screen LCD monitor(55"-98"), LCD video wall(46"-55"), video wall processor ,controller, matrix switcher ,HDMI /VGA splitter and other industrial screen display
Our factory locates in Shenzhen, owning core experienced technology team. We are certificated ISO9001 : 2008 quality management system and ISO14001 : 2004 environmental management system. We have strict quality control process to ensure every product can meet our customer's requirement.
DS believes in profession, honesty and integrity will bring our customer value ,we dedicate our team in providing quality product and service. And we believes that is our brand value.
Our Advantage
1. Experienced engineers and sales with big lcd industry manufacturer and project background
2. ISO 9001 ,CE,ROHS, 3C,FCC Certificated products: touch screen kiosk, smart whiteboard touch screen and seamless bezel video wall
3. Full industrial display chain resources : LCD video wall,touch screen kiosk,all in one pc, interactive whiteboard,touch screen monitor,video wall controller,matrix, video splicing processor, matrix switcher and VGA HDMI cable etc accessories.
4. Original factory lcd screen,Reasonable price ,high quality and good after-sale tech support
5. Low MOQ ,Short delivery time ,flexible payment way
6. Quick response ,provide free training for customers.
Shipping and Payment
1.Payment term : T/T 30% down payment before production,the 70% balance should be paid before shipment after inspection.
2.Warranty: 12 months warranty .Lifetime maintainance.
3.RMA policy: customer bear all the freight and duty charge to factory,and the factory afford retum freight charge.
4.Remark: ROHS, CE & FCC certificates in e-file format are available.
5.PackagE:LCD display touch screen is packed in carton box with EPE protection.And carton will be packed with wooden case in international shipping.
What we do?
DS is decated in LCD video wall projects, we have over than 5 years in doing projects and installment the big size 55" 65" etc big screen video wall project. And we also provide processors, controllers , metal frame for displayer and video wall projects and advertising projects.Accessories like HDMI-VGA cable and converter/adpter which is necessory is also in our catagory to support our customers.
Why Choose us?
1. Experienced engineers and sales with big lcd industry manufacturer and project background
2. ISO 9001 ,CE,ROHS, 3C,FCC Certificated products: touch screen kiosk, smart whiteboard touch screen and seamless bezel video wall
3. Full industrial display chain resources : LCD video wall,touch screen kiosk,all in one pc, interactive whiteboard,touch screen monitor,video wall controller,matrix, video splicing processor, matrix switcher and VGA HDMI cable etc accessories.
4. Original factory lcd screen,Reasonable price ,high quality and good after-sale tech support
5. Short delivery time ,flexible payment way
6. Quick response ,provide free training for customers.
