Product Description

Oway Finger Touch Smart Board FT6 for Education Business & Playground

Product Description

Finger touch portable Interactive Whiteboard system is a positioning system based on the latest laser infrared technology .Use this system you can operate projector and computer easier and achieve more excellent presentation effects by finger.

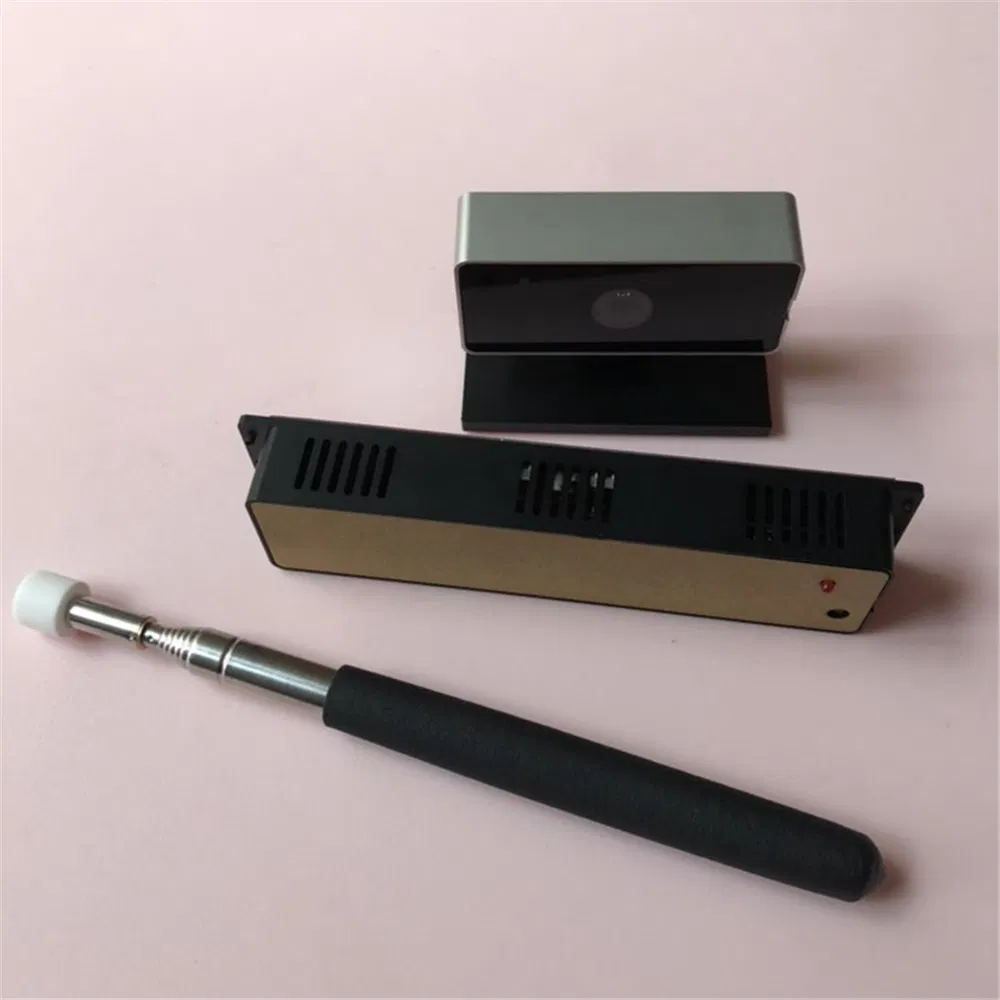

Oway Finger Touch Smart Board FT6 for Education Business & Playground

---------------------------------------------------------------------------------------------------------------------

Function and features introduction

High stability: Use the advanced algorithm to avoid the affect of the light.
Requirement for the board: The only requirement for the board or wall is flat and evenness. The board can be with the frame. The projection screen can closer to the frame, even in the edges of the frame, the finger touch product can work well.

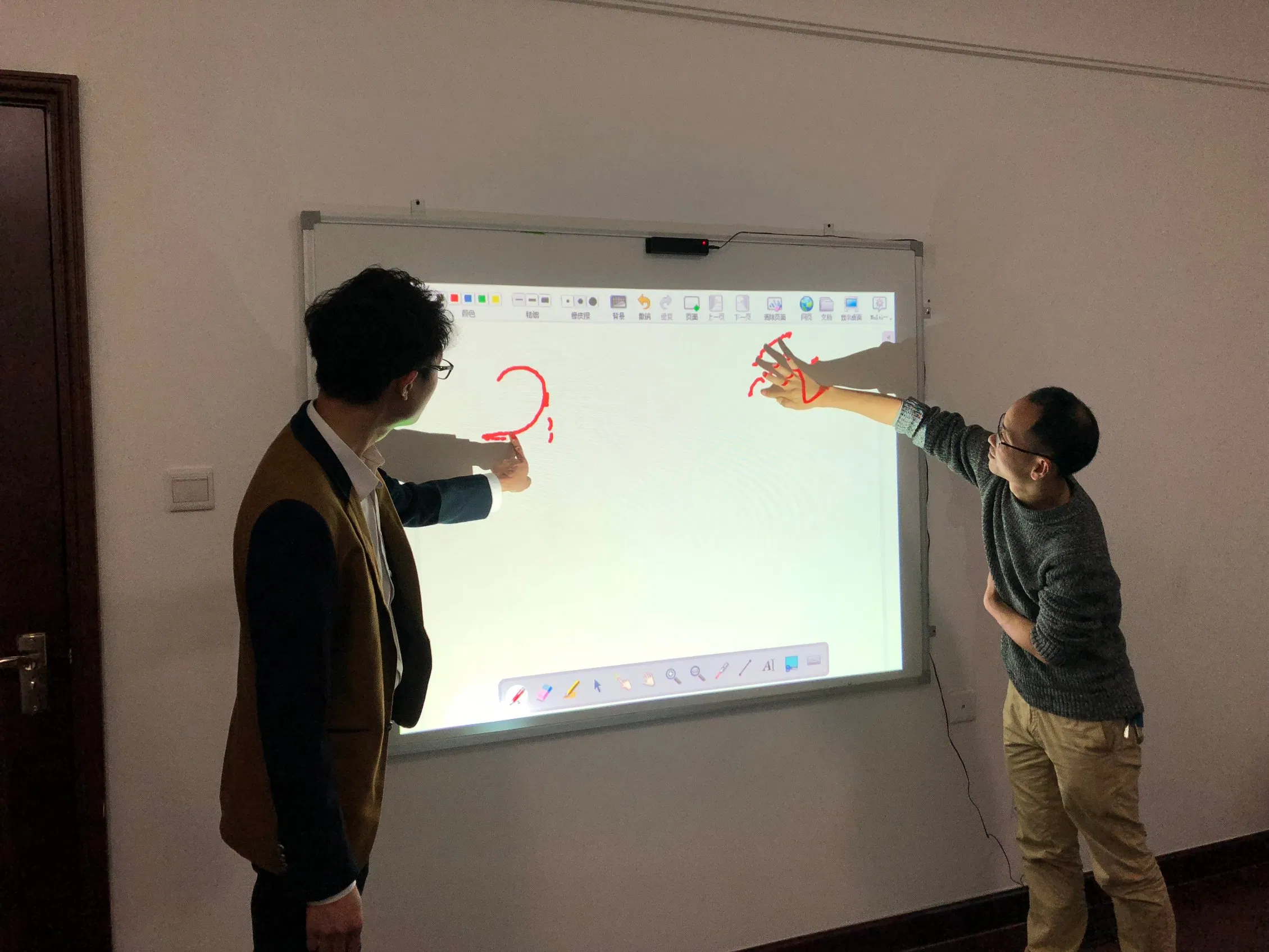

Support plenty of gesture recognition: write with single finger; move with two fingers; eraser with palm; two fingers for zoom in& zoom out; two fingers work as scroll bar and so on.
auto calibration. Infrared technology and Optical technology only support manual calibration. Our auto calibration is much more accuracy and easier to operate.
Support 10 points finger touch (10 people can write together)
Support Larger active size: support 40-100" for the room with sunlight (if the room without sunlight, it can support the active size of 40-120".

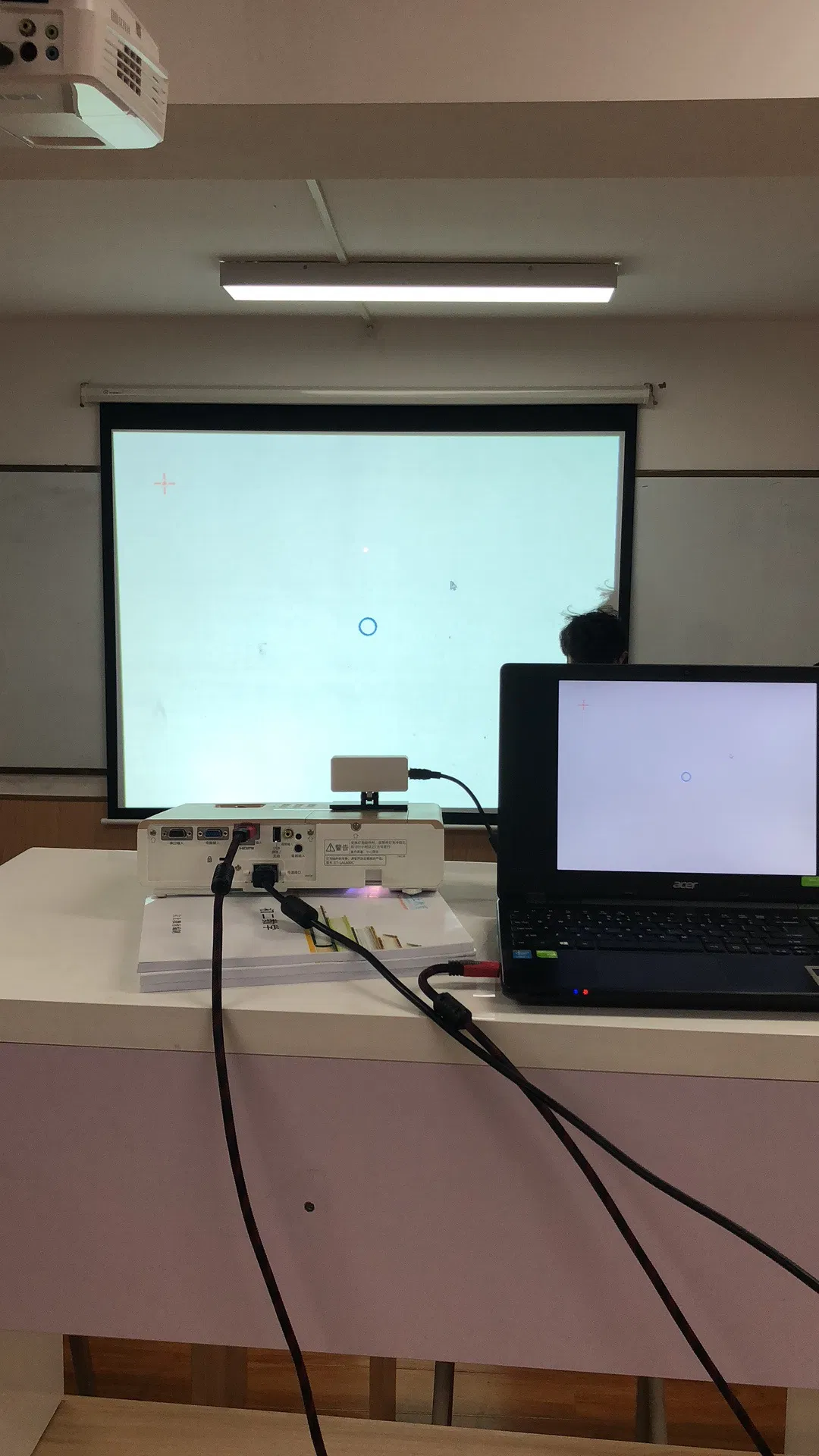

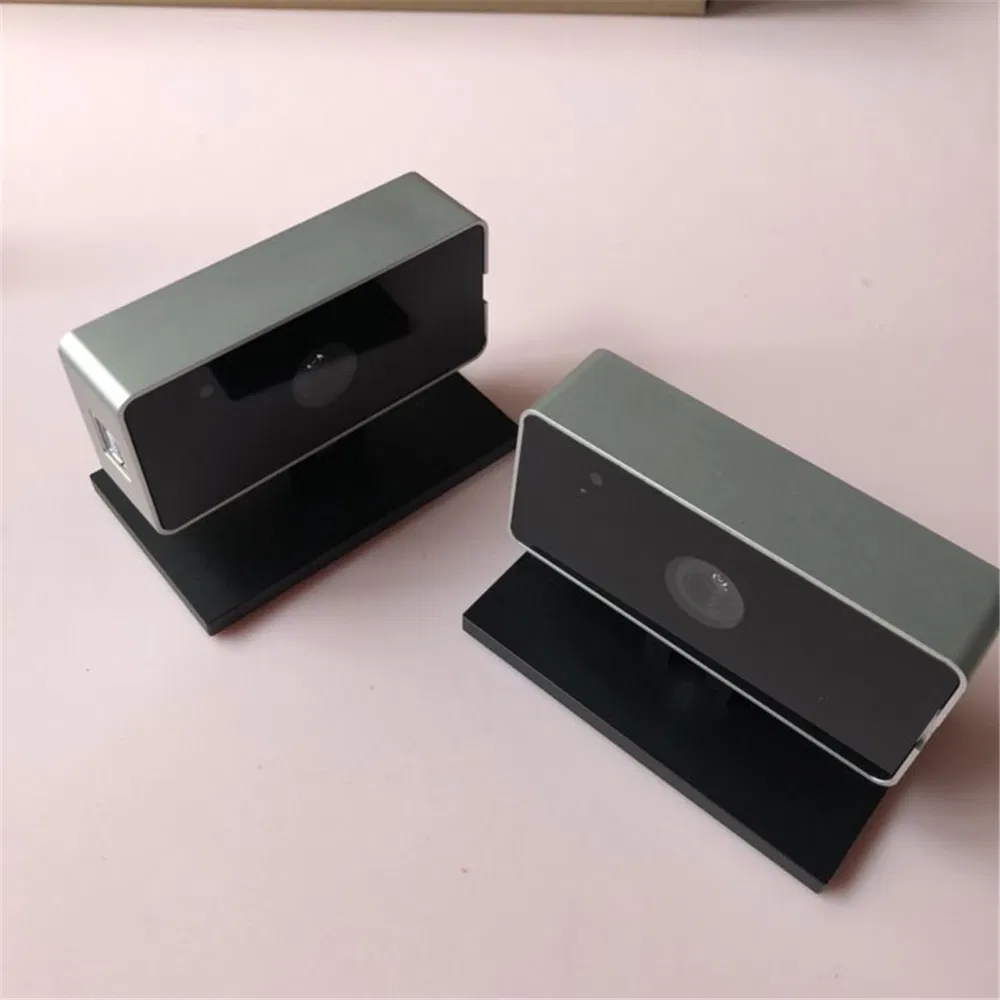

Portable, high integration and easy to install: Total weight is only around 500g. The installation is very easy, just need to put the emitter part on the upper of projection Screen, and the sensor mounted to projector or ceiling, No skill needed.
Sensor with the flash chips: don't need to calibration if you change the computer with the same resolution ratio. It save time, and make the use easier.
The product is smaller. Emitter part size is 3.5cm x 17cm x 2.4cm; it can put on the board directly.
remote control: remote control the emitter on/off.
Sensor's filter with Auto push-pull device: When do auto calibration, the filter will be open; after calibration, the filter will be closed automatically. Such action makes the product more stable to defense the interference light, and the auto calibration success easier.

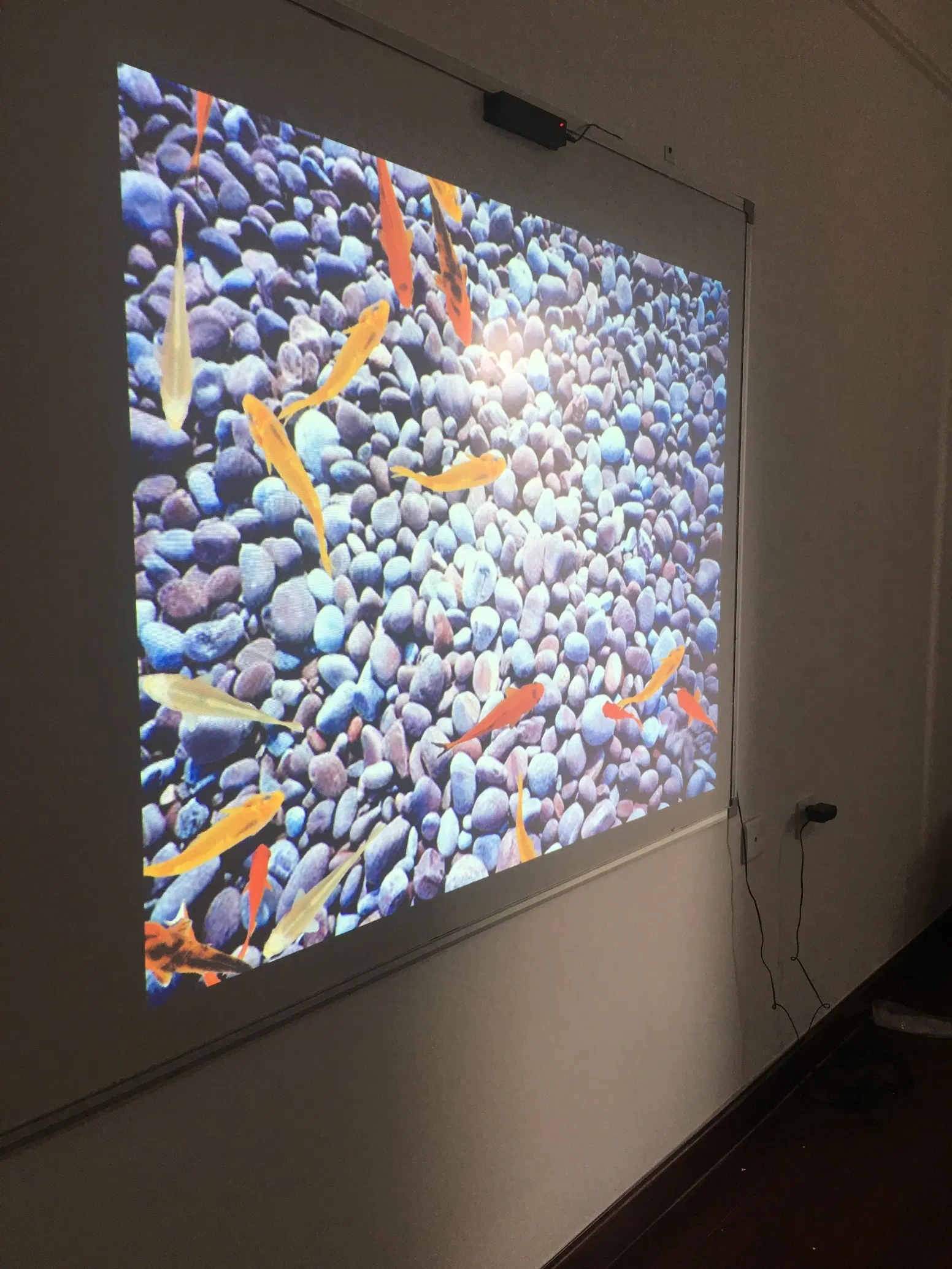

Turn common board or wall to touch board. It can turn any flat surface (whiteboard, wall and so on) into finger touchable.
Any non-transparent object can be used as pen, like a rolled paper. In any active area, any non-transparent object can work instead of the pen and the mouse.

---------------------------------------------------------------------------------------------------------------------

Specification

Finger Touch Portable Interactive Whiteboard - FT6
Calibration	Automatic / Manual (4/15 points)
Multi-touch	Ten points touch
Latency	<20ms
Filter	Software auto-control, enhance stability.
Minimum Active Size	40 inch
Max Active Size	120inch( no sunshine room);100inch( sunshine room)
Technology	Laser Image Calibration Technology
Positional Accuracy	±1 Pixel (Resolution: 4096*4096)
Aspect Ratio	4:3;16:9;16:10
Projector ratio	Long throw:3.0, installation distance:2.15~3.2M.
Laser Beam	Short throw/ Long throw: 3units; Ultra short throw: 3units.
Laser safety	CLASS I (safety laser)
Wave of the laser	808nm
Power	5w
Power of Laser Beam	150mW/unit *3
Power requirements	5V/1.5A
Signal refresh rate	Real 60fps.
Connect	The sensor and computer are connected by USB Cable; Emitter and Sensor are wireless; Emitter just need power.
Weight	0.5kg
OS Requirement	Windows XP, Vista, Windows 7, Windows 8, Windows10
Software	OwaySIWB
Certification	CE, FCC
Warranty	2-year

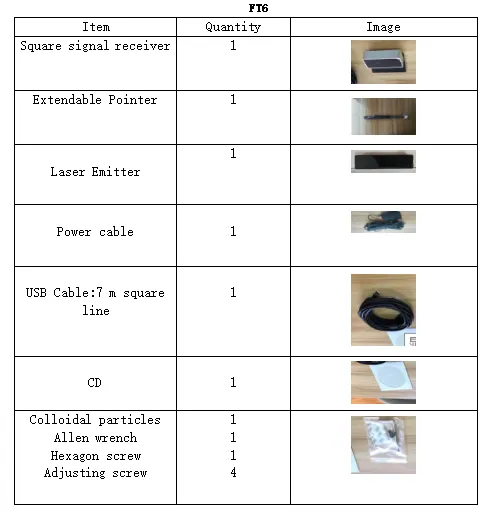

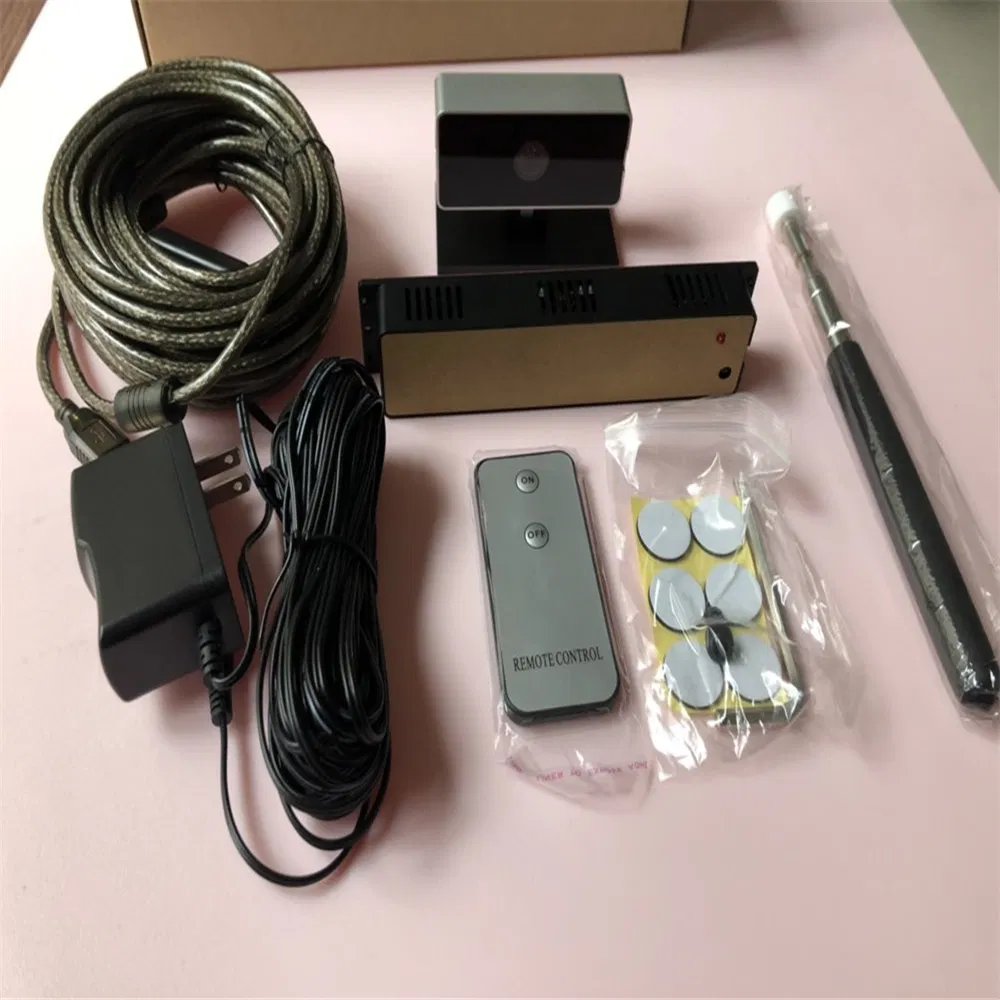

Package	1. Sensor 2.Emitter 3.Remote 4.USB cable (10m) 5.Pionter 6.Power Adaptor 7. Manual

---------------------------------------------------------------------------------------------------------------------

Packing & Delivery

Packaging Details:Single box + carton or customer specified box
Delivery Time:3 working days
