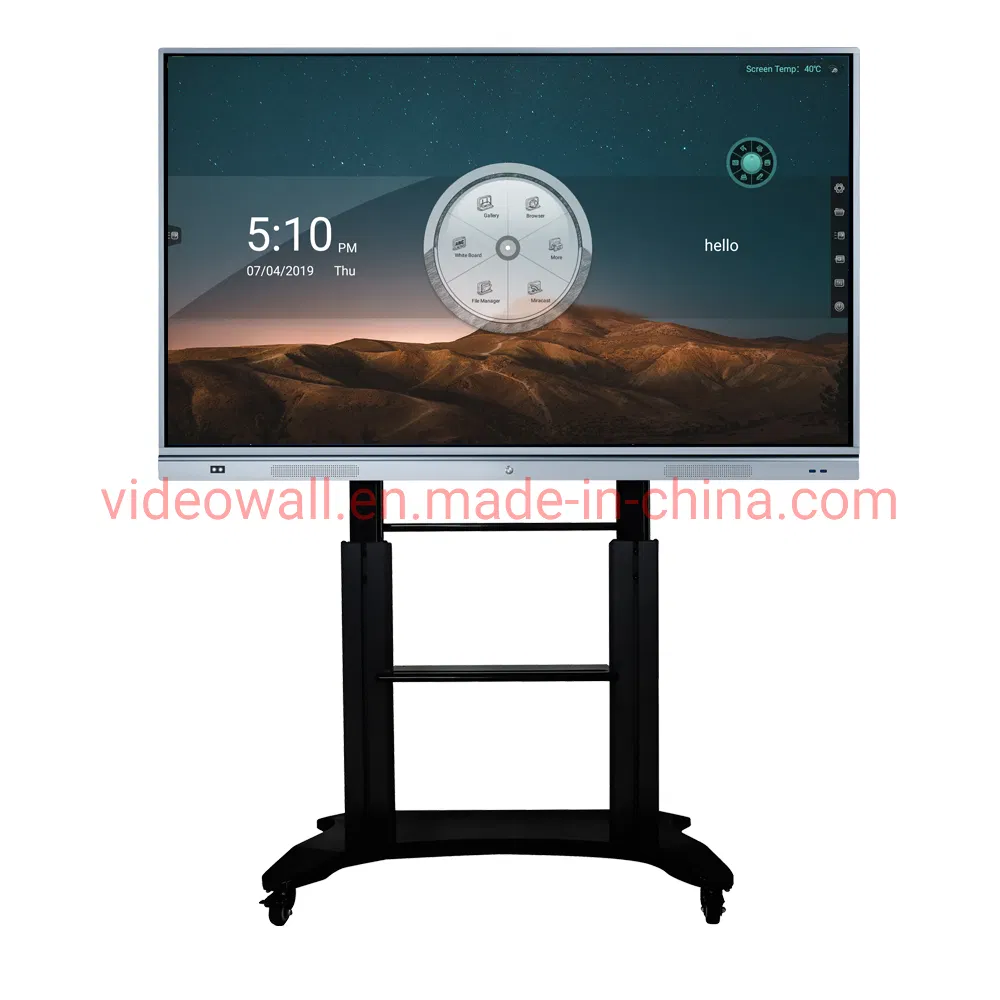

RAM4G+32G Android touch screen panel 85" interactive whiteboard
RAM4G+32G Android touch screen panel 85" interactive whiteboard Major Features:Android 8.0 system: Latest Android system and OPS computer support (Windows system)RAM 4G+32G Storage: Highest configuration Super-narrow bezel:1mm writing distance and 12mm narrow bezel Max 20point touch: Enables m......
Send Inquiry
Product Description

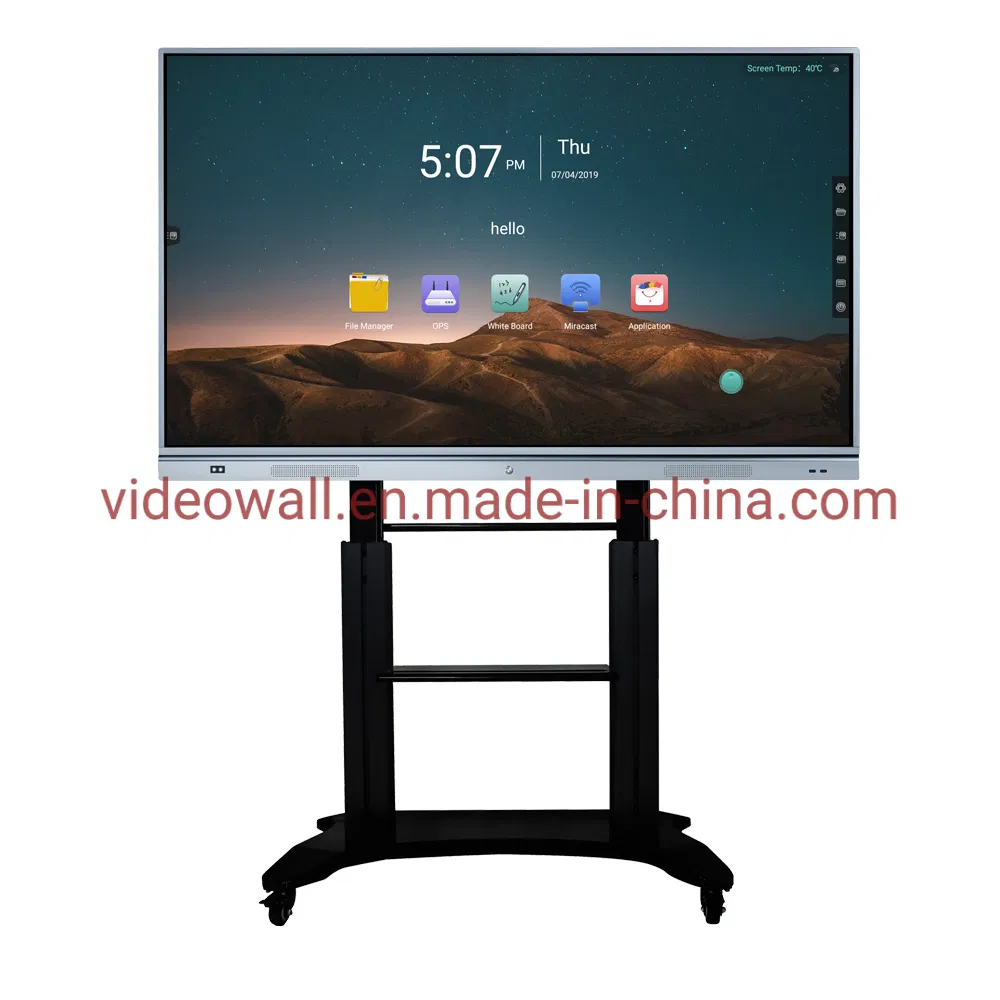

RAM4G+32G Android touch screen panel 85" interactive whiteboard
Major Features:
Android 8.0 system: Latest Android system and OPS computer support (Windows system)
RAM 4G+32G Storage: Highest configuration
Super-narrow bezel:1mm writing distance and 12mm narrow bezel
Max 20point touch: Enables multi-users writing at the same time
Whiteboard App built-in: Providing you efficient Apps for classroom and conference.
Wireless mirroring/Wireless screen function: To project your laptop pc, mobile phone, and tablets without cables projectors. just one click to share your laptop to the smartboard
Quick toolbar, easy to use
Available in 65" 75" 85" and 98"
Functions include:
20point touch, 10point writing, 2points zoom/drag, gesture erase (hand back erase),
Annotation function: making annotations on-screen or during the presentation
Digital whiteboard function: insert and edit files, pictures, making notes, etc
Scan QR code to share annotation/memos
Wireless projection: share laptop, mobile screens to touch screen interactive flat panel without cable, just one click of wireless screen dongle.

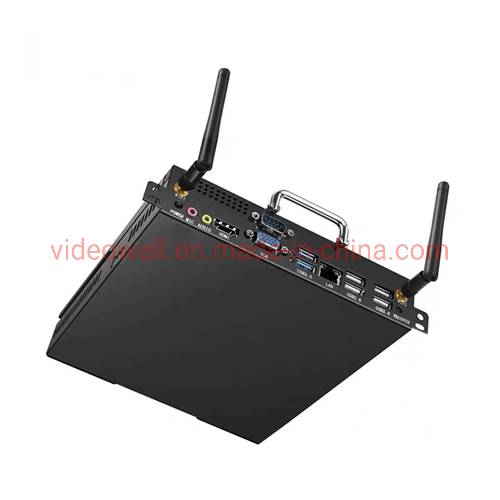

OPS computer: OPS slot-in, support i7, i5 processor Windows system
A quick switch from Android system to the Windows system
Touch USB, USB, HDMI, etc multi-input and output ports
Can connect with the video camera, wireless microphone for video conference system
Specification:
Shipment
About DS tech company
Shenzhen DS Technology Co., Ltd. is established in 2013 in Shenzhen.DS is a high-tech enterprise specialized in the development, production, and marketing of the interactive screen and commercial large size display products. Our products are divided into several series: interactive whiteboard(55" 65" 75" 85" 86" 98"), LCD video wall(46" 49" 55") of Samsung, LG and BOE. We also produce digital signage 43" 46" 49" and 55" for customized commercial screen display.

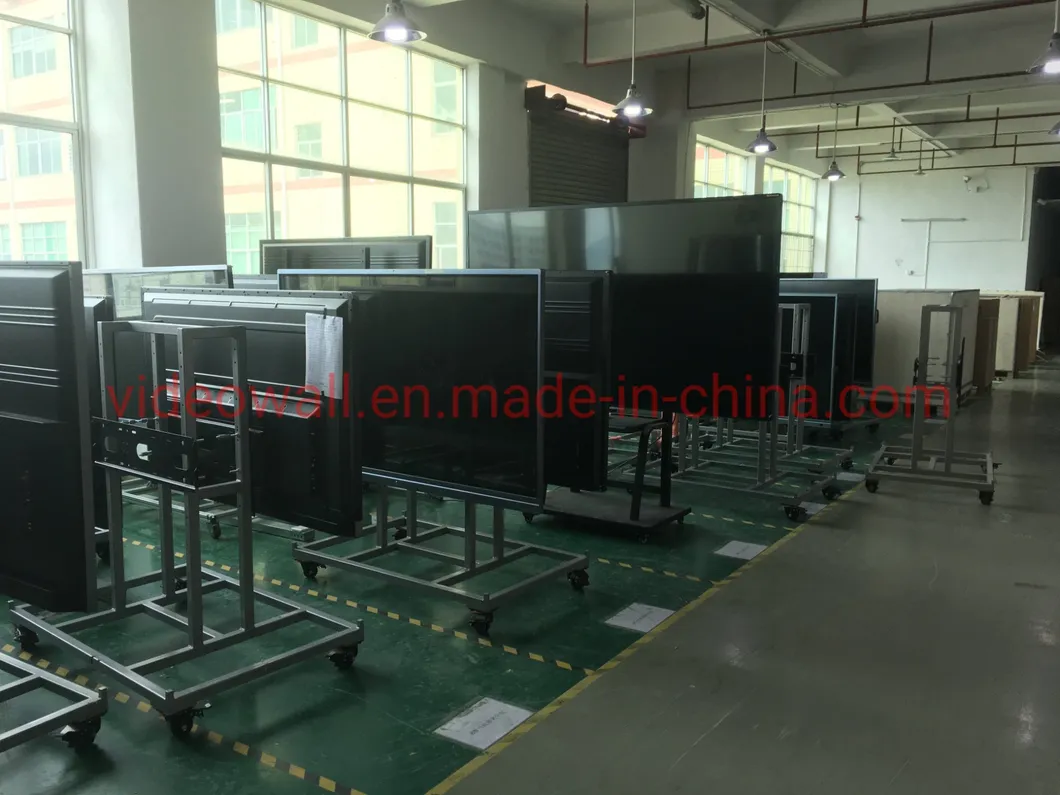

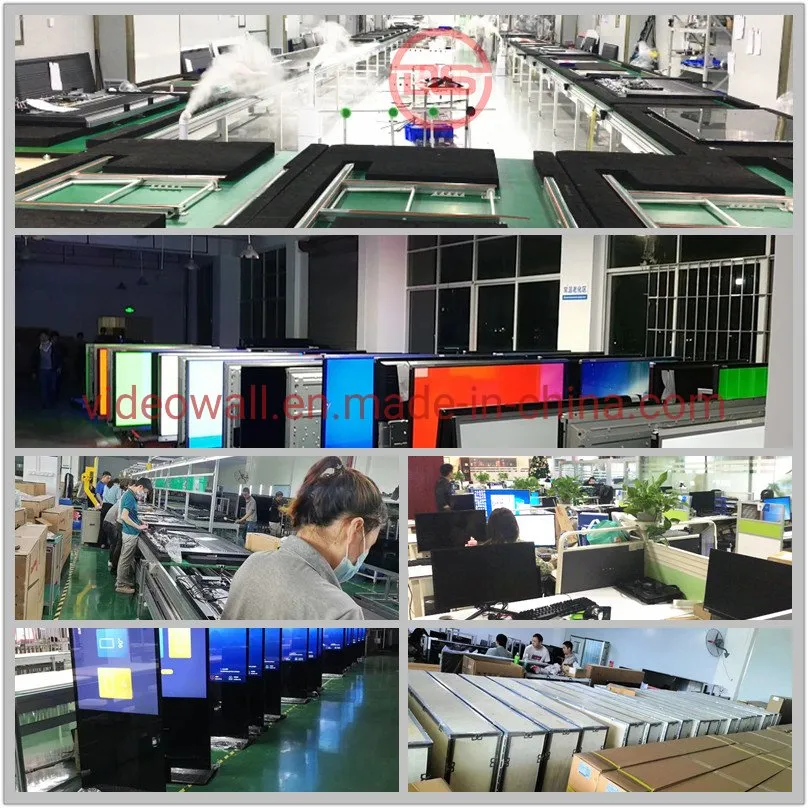

Our factory locates in Shenzhen, 120workers, owning a core experienced technology team of 15engineers.
We are certificated ISO9001: 2008 quality management system and ISO14001: 2004 environmental management system. All products are certificated with CE, ROHS, and FCC.
A strict quality control process and good after-sales support help us win customer trust.
DS tech team believes in professionalism, honesty, and integrity will bring our customer value, we dedicate our team in providing quality products and services. And we believe that is our brand value.
Any queries, feel free to contact us.
Major Features:
Android 8.0 system: Latest Android system and OPS computer support (Windows system)
RAM 4G+32G Storage: Highest configuration
Super-narrow bezel:1mm writing distance and 12mm narrow bezel
Max 20point touch: Enables multi-users writing at the same time
Whiteboard App built-in: Providing you efficient Apps for classroom and conference.
Wireless mirroring/Wireless screen function: To project your laptop pc, mobile phone, and tablets without cables projectors. just one click to share your laptop to the smartboard
Quick toolbar, easy to use
Available in 65" 75" 85" and 98"
Functions include:
20point touch, 10point writing, 2points zoom/drag, gesture erase (hand back erase),
Annotation function: making annotations on-screen or during the presentation
Digital whiteboard function: insert and edit files, pictures, making notes, etc
Scan QR code to share annotation/memos
Wireless projection: share laptop, mobile screens to touch screen interactive flat panel without cable, just one click of wireless screen dongle.
OPS computer: OPS slot-in, support i7, i5 processor Windows system
A quick switch from Android system to the Windows system
Touch USB, USB, HDMI, etc multi-input and output ports
Can connect with the video camera, wireless microphone for video conference system
Specification:
| Model | DSY-65DV18 | DSY-75DV18 | DSY-85DV18 |
| Backlight | LED | LED | LED |
| Active display size (diagonal) | 65" | 75" | 85" |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Product dimension (mm) | 1479.9*911.1*109.4mm | 1699.2*1038.2*104mm | 1940.2*1176.9*106.2mm |
| Slime frame | 13 mm | 13 mm | 13 mm |
| Dynamic Contrast Ratio | 4000:1 | 4000:1 | 4000:1 |
| Resolution | 3840*2160 (4K) | 3840*2160 (4K) | 3840*2160 (4K) |
| Colors | 8 bit / 1.07 billion colors | 8 bit / 1.07 billion colors | 8 bit / 1.07 billion colors |
| Brightness | 350cd/m2 | 350cd/m2 | 350cd/m2 |
| Response time | 8 ms | 8 ms | 8 ms |
| View Angle | 178°, 178° | 178°, 178° | 178°, 178° |
| Dot pitch (mm) | 0.124 mm x 0.372 mm | 0.4298 mm x 0.4298 mm | 0.4875 mm x 0.4875 mm |
| Panel life expentance | ≥50000 hrs | ≥50000 hrs | ≥50000 hrs |
| LCD quality | Grade A | Grade A | Grade A |
| Speakers | 15W x 2 | 15W x 2 | 15W x 2 |
| OPS Slot | Yes (42mm,80Pin) | Yes (42mm,80Pin) | Yes (42mm,80Pin) |
| Power consumption | Maximun< 220W | Maximun<300W | Maximun< 350W |
| Power voltage | 100V - 240VAC, 50/60Hz 15W x 2 | 100V - 240VAC, 50/60Hz 15W x 2 | 100V - 240VAC, 50/60Hz 15W x 2 |
| Work environment | TEMP: 0ºC ~ 40ºC / Humidity: 20% ~ 80% | TEMP: 0ºC ~ 40ºC / Humidity: 20% ~ 80% | TEMP: 0ºC ~ 40ºC / Humidity: 20% ~ 80% |
| Storage environment | TEMP: -10ºC ~ 60ºC / Humidity:10% ~ 60% | TEMP: -10ºC ~ 60ºC / Humidity:10% ~ 60% | TEMP: -10ºC ~ 60ºC / Humidity:10% ~ 60% |
| Maximum continue working time | 18 hours*7 days | 18 hours*7 days | 18 hours*7 days |
| Android System (Default) | |||
| System configuration | Android 8.0, RAM 4G + 32GB, chipboard: Hi3751ARBCV8110D0N , | ||
| Interface Inputs / Outputs | HDMI in*2, HDMI out *1, USB2.0*2,SD-TF*1, AV input*1 , YPbPr*1, RJ45*2, SPDIF output*1, VGA input*1, Touch USB*3, Audio input*1, DP IN*1, USB Extend *2, RS232*1, SD*1, AV output*1, earphone *1, MIC*1, wifi *4 | ||
| Model | DSY-65DV18 | DSY-75DV18 | DSY-85DV18 |
| Touch Screen Parameter | |||
| Glass surface | 4 mm Tempered glass | ||
| Technology | Infrared touch (IR touch) | ||
| HID support | Yes | ||
| Touch supported | 10 points touch /max 20 points touch | ||
| Writing tools | finger or any opaque object | ||
| Positioning accuracy | 2 mm | ||
| Response Time | ≤ 5ms | ||
| Connection Interface | USB | ||
| Detachable IR frame | Yes | ||
| Software | Yes | ||
| Touch Life Expectancy | ≥ 60,000,000 times | ||
| OPS (optional) | |||
| Chipset | InteI H110 Express | ||
| CPU | i3 Intel Skylake | i5 Intel Skylake | i7 Intel Skylake |
| Storage | 4G DDR4 RAM / SSD128G | ||
| Graphics | InteI InteIHD | InteI InteIHD | NIVIDA GT1030 2G (i7) |
| Interface | USB2.0*4, USB 3.0*2, RJ45*1, HDMI*1, DP output*1, LINE output*1, MIC input*1, WIFI, COM (option) | ||
| OS | Windows10 | ||
| Packing Details | |||
| Package list | Remote controller*1, Power cable 1.5m*1, User manual*1, Wall Mount Bracket*1. | ||
| Packing Dimension (mm) | 1600*215*1025mm | 1870*220*1150mm | 2110*240*1315mm |
| Net Weight (kg±4) | 48.5kg | 64kg | 98kg |
| Gross Weight (kg±4) | 57.2kg | 75kg | 115kg |
Shipment
About DS tech company
Shenzhen DS Technology Co., Ltd. is established in 2013 in Shenzhen.DS is a high-tech enterprise specialized in the development, production, and marketing of the interactive screen and commercial large size display products. Our products are divided into several series: interactive whiteboard(55" 65" 75" 85" 86" 98"), LCD video wall(46" 49" 55") of Samsung, LG and BOE. We also produce digital signage 43" 46" 49" and 55" for customized commercial screen display.
Our factory locates in Shenzhen, 120workers, owning a core experienced technology team of 15engineers.
We are certificated ISO9001: 2008 quality management system and ISO14001: 2004 environmental management system. All products are certificated with CE, ROHS, and FCC.
A strict quality control process and good after-sales support help us win customer trust.
DS tech team believes in professionalism, honesty, and integrity will bring our customer value, we dedicate our team in providing quality products and services. And we believe that is our brand value.
Any queries, feel free to contact us.
