                            T6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic Whiteboard
                            • T6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic WhiteboardT6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic Whiteboard
                            • T6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic WhiteboardT6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic Whiteboard
                            • T6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic WhiteboardT6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic Whiteboard
                            • T6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic WhiteboardT6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic Whiteboard

                            T6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic Whiteboard

                            Product DescriptionT6 Series Nesting 86 inch SKD 4k infrared touch screen online interactive whiteboard with built-in Camara and MicrophoneAbout T6M86C:1.Ultra-narrow black border design with 9.9mm;2.Ultra-thin infrared solution, and the thinnest part is 26.9mm;3.Mold stamping hardware backplate, go......

                            Send Inquiry

                            Product Description

                            Product Description

                            T6 Series Nesting 86 inch SKD 4k infrared touch screen online interactive whiteboard with built-in Camara and Microphone

                            T6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic Whiteboard
                            About T6M86C:

                            1.Ultra-narrow black border design with 9.9mm;
                            2.Ultra-thin infrared solution, and the thinnest part is 26.9mm;
                            3.Mold stamping hardware backplate, good strength, stable quality, good heat dissipation, strong anti-interference ability;
                            4.The left and right bottom corners of the backplate are injection molded by plastic molds, and the backplate is designed to be seamlessly spliced with the backplate;
                            5.The V-shaped rib design of the backplane makes the product stronger and safer, and the quality is guaranteed;
                            6.8 million cameras, 6 array microphones, 8 meters pickup;
                            7.Ultra-thin infrared height, with only 7.5mm from the surface of the tempered glass to the surface of the profile frame;
                            8. Windows and Android Dual system or Android only;
                            9.Sandblasting process, high metallic texture.

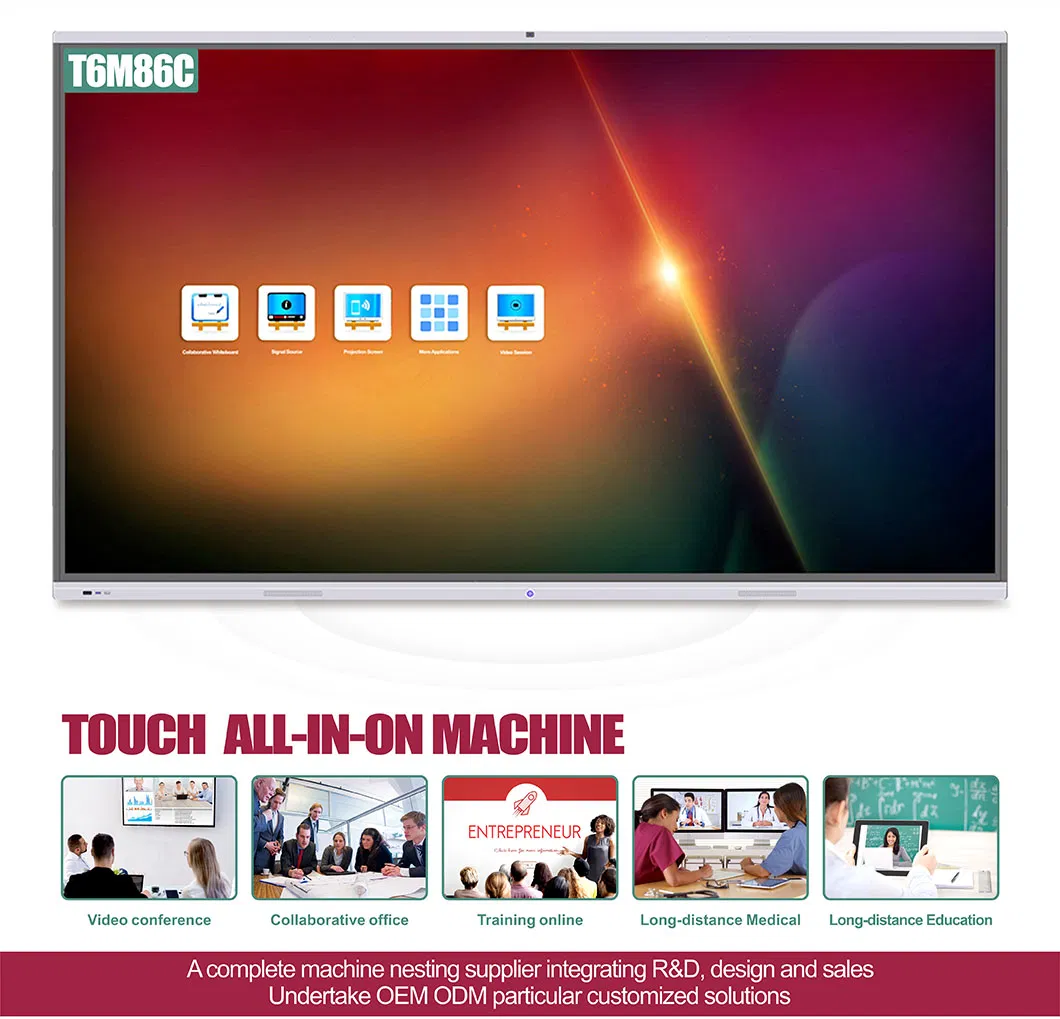

                            1. Six In One Design: computer, whiteboard, projector, TV, speaker, Tablet,multifunction in one equipment.
                            2. Support 10 points IR touch ( 20 points touch option): Adopt super sensitive touch panel, increase the touch accuracy, and it can stand more than 35 million time secure touch without any uncontrolled space. Touch easily and control perfectly.
                            3. Full-size standard mold back plate: Compared with traditional sheet metal CNC laser products, the product has better consistency and high strength. The back plate is strong enough to support the front profile frame and tempered glass, and the quality is stable, and it is fully mechanized. Production, high output.
                            4. 4mm explosion-proof Anti-glare tempered glass: 4mm Ultra-Thin rating 7 glass can protect screen effectively, and Turn the reflective surface of the original glass into a matte non-reflective surface
                            5. Infrared touch screen with aluminum plate, small heat, fast heat dissipation, which can effectively extend the life of panel.

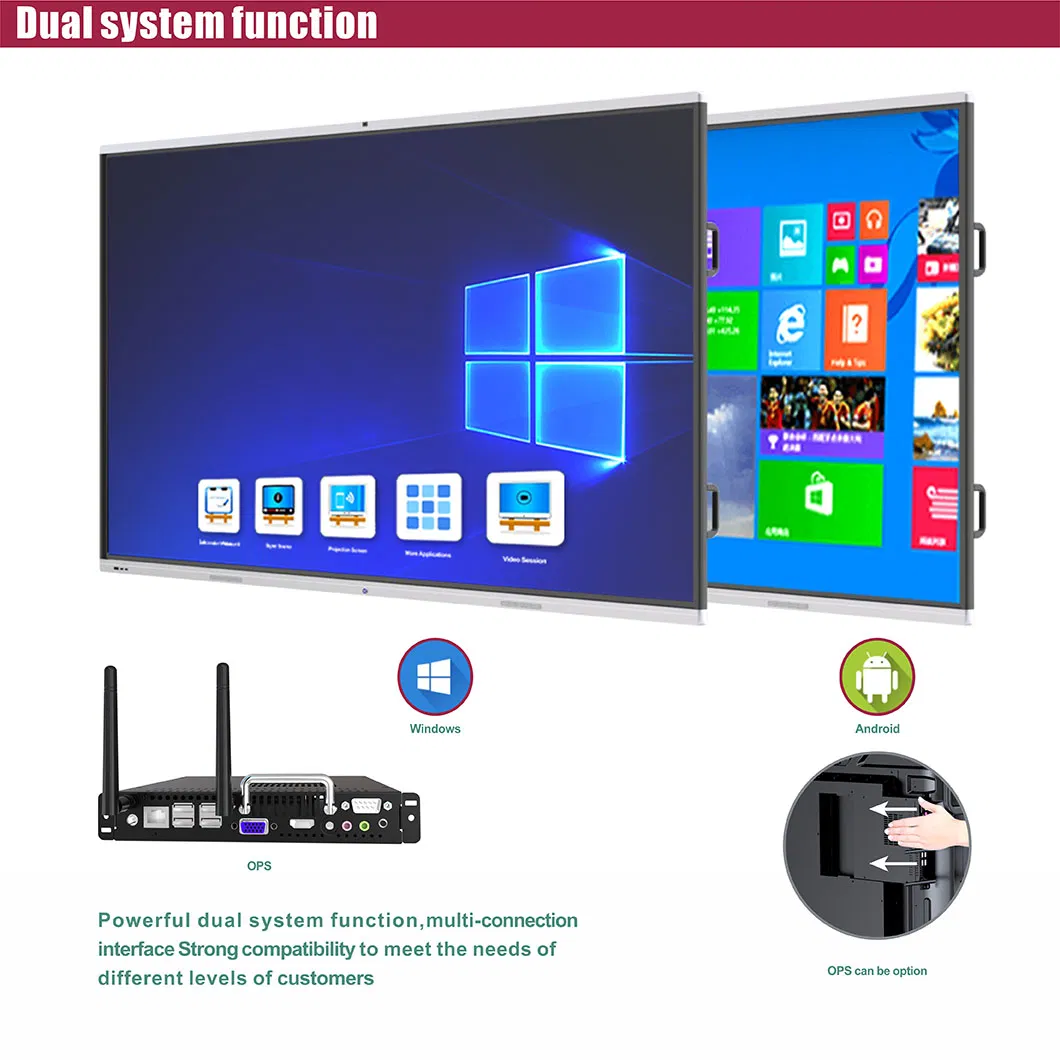

                            6. Dual core processor windows and android dual system built-in design. Both systems can achieve whiteboard writing and multimedia playing.
                            7. Fast response speed0.8ms fluent writing and demonstration. More convenient courseware management. Accurate, fast touch, no delay.
                            8. Intelligent operationFreely write, annotate and screen shot. Automatically recognize input channel. Intelligent eye protection. Light sensor with automatic brightness control. Energy save & intelligent awake.
                            9. Intelligent writing & Touch controlthe writing function interface can realize the functions of writing, magnifying, shrinking, erasing, dragging, and the like.
                            10. Screen-mirroring with android phone, iphone, ipad, computer,etc.
                            T6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic Whiteboard

                            T6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic WhiteboardT6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic WhiteboardT6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic WhiteboardT6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic WhiteboardT6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic Whiteboard

                            Detailed Photos

                            T6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic Whiteboard


                            Certifications

                            T6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic Whiteboard


                            Packaging & Shipping

                            T6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic WhiteboardT6m86c SKD 86inch 4K IR Touch Android-Windows Dual System Best Digital Electronic Whiteboard

                            Product Parameters
                            ModelT6M86C
                            Name86inch smart conference tablet
                            Display
                            Parameters
                            display size1895.04(H)*1065.96V) (mm)
                            image sacale16:9
                            brightness350cd/m2
                            contrast ratio1200:1
                            color10bit TureColor(16.7M)
                            backlighting typeDLED
                            Max.viewing angle178°
                            Resolution3840 * 2160
                            Machine
                            Parameters
                            Video standardPAL/NTSC/SECAM
                            Audio systemDK/BG/I
                            Power of audio system2X10W
                            overall power consumption≤500W
                            Stand-by power consumption≤0.5W
                            life times30000 hours
                            input power100-240V, 50/60Hz
                            Proudct dimensions1953(L)*1164(H)*92.0(T)mm
                            1953(L)*1164(H)*126.6(T)mm(with hanger)
                            Packing size2101 (L)*1338(H)* 250(T)mm
                            N.W67KG
                            G.w83KG
                            working environmentworking temperature:0ºC ~ 50ºC;
                            working humidity:10%RH
                            ~ 80%RH;
                            storage environmentstorage temperature:-20ºC ~ 60ºC;
                            storage humidity :10%RH
                            ~ 90%RH;
                            input interfacefront interface :USB2.0*1  USB3.0*1
                            back interface:HDMI*2, USB2.0*1, USB3.0*1, TFCard*1, TOUCH-USB*3,
                            RS232*1,RJ45*1, VGA*1, AUDIO*1, MiniAV*1, MiniYPBPR*1
                            (DP option)
                            output interfaceRJ45out*1, LineOut*1, COAX*1, HDMIout*1
                            WIFI2.4+5G
                            BluetoothNone
                            Andrion system
                            Parameters
                            CPUHi3751 V811(Dual-core A73 and dual-core A53 /1.5G)
                            GPUQuad-core MaliG51
                            RAM4G
                            FLASH32G
                            Android versionAndroid 8.0
                            OSD languageChinese    English
                            OPS
                            Parameters
                            CPUI5 / I7 option
                            Memory4G DDR4
                            Hard disk128G SSD/256G SSD option
                            Operating systemwindow10
                            interfaceHDMI*1, USB2.0*4, USB3.0*2, VGA*1, Earphone*1, MIC*1
                            RS232*RJ-45, network interface*1, Power botton, Recovery botton
                            WIFISupport 802.11 b/g/n
                            Touch frame
                            Parameters
                            Touch typeinfrared touch
                            installation methodBuilt-in front disassembly
                            Touch screen sensing methodFingers, writing pens, or other non-transparent objects ≥ Ø8mm
                            Resolution32767*32767
                            Touch system communication portUSB 2.0+UART
                            responding speed≤8 ms
                            positioning accuracy≤±2mm
                            Light resistance88K LUX
                            multi-touch technology20 points touch
                            Number of touchesMore than 60 million times in the same location
                            Touch support operating systemWIN7,WIN8,WIN10,LINUX,Android,MAC
                            Camera
                            Parameters
                            Pixel800W
                            Image Sensor1/2.8 inch CMOS
                            camera lensFixed focus lens, effective focal length 4.11mm
                            PerspectiveHorizontal viewing angle 68.6 degrees diagonal 76.1 degrees;
                            Main camera focusing methodfocus
                            Video outputMJPG YUY2
                            Maximum number of frames30
                            driveFree drive
                            Video resolution (resolution)3840*2160
                            Microphone
                            parameters
                            Microphone typeArray microphone
                            Number of marks6
                            level of sensitivity-38db
                            Signal to noise ratio63db
                            Pickup distance8 meters
                            Number of samples16/24bit
                            Sampling Rate16kHz-48kHz
                            drivewin10 free drive
                            Echo cancellationSupport
