20X Zoom HDMI HD 1080P Live Streaming Video Conference Camera for Church
Product Description20x zoom HDMI HD 1080P live streaming video conference camera for churchNV20A PTZ camera has USB 2.0, HDMI, SDI 3 video outputs. It is equipped with a 1/3 inch HD color CMOS and 2.38 megapixel effective CMOS sensor achieved 1080p & 1080i high-quality images.The superior 20x op......
Send Inquiry
Product Description

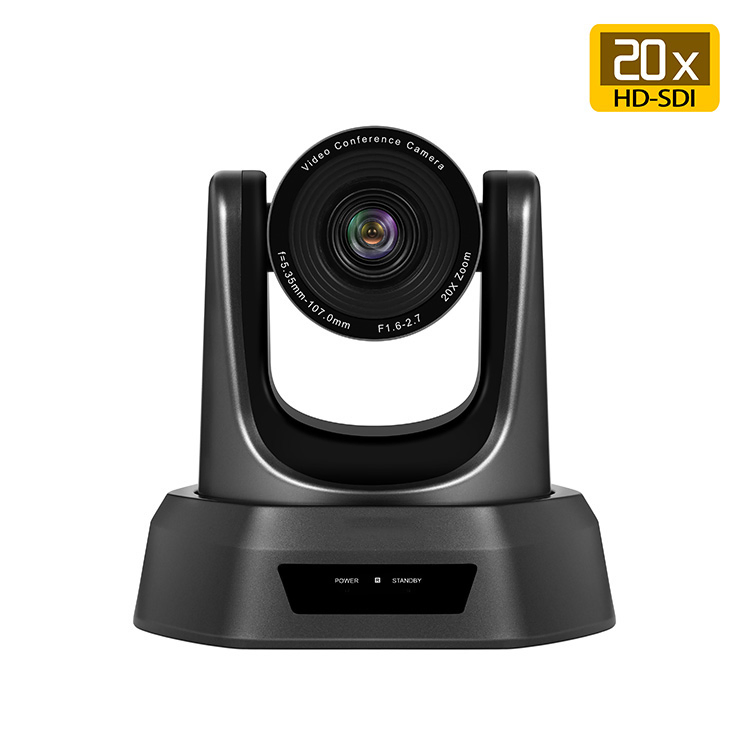

20x zoom HDMI HD 1080P live streaming video conference camera for church

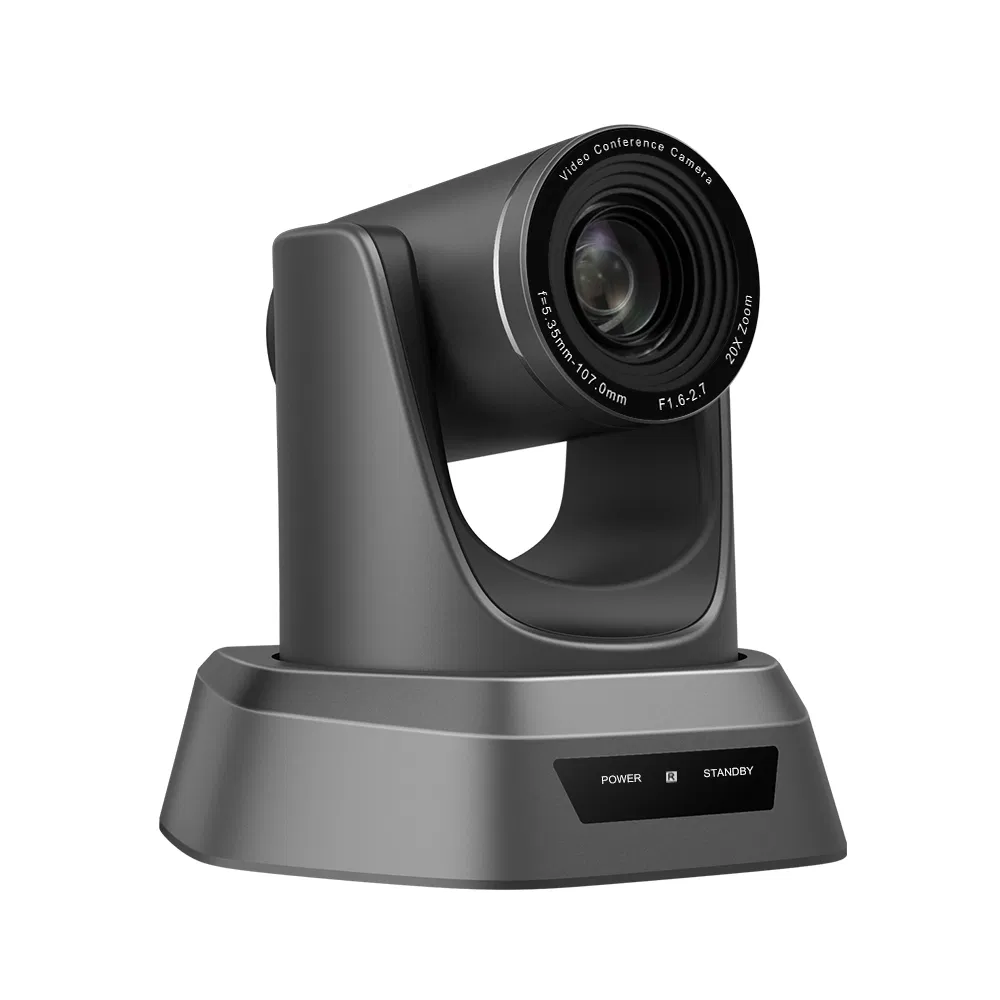

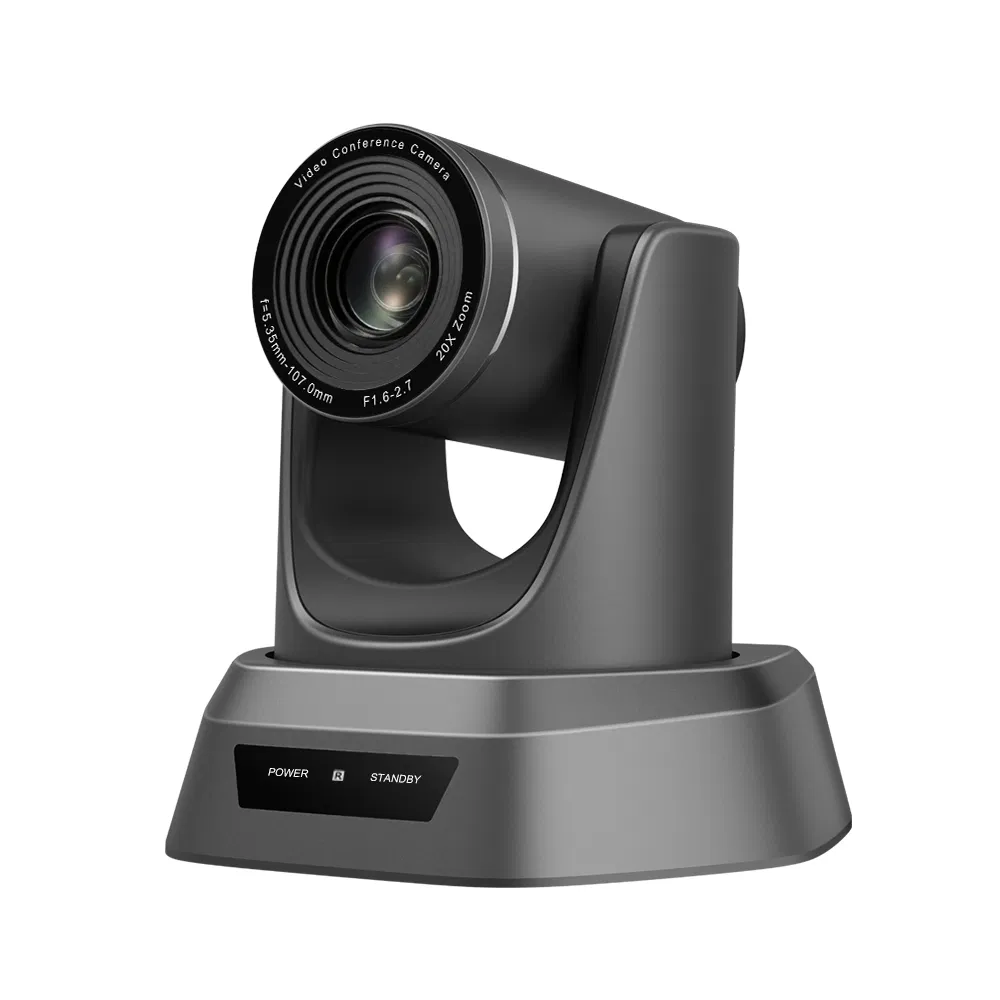

NV20A PTZ camera has USB 2.0, HDMI, SDI 3 video outputs. It is equipped with a 1/3 inch HD color CMOS and 2.38 megapixel effective CMOS sensor achieved 1080p & 1080i high-quality images.
The superior 20x optical zoom lens, excellent white balance, and exposure mode deliver a clear image even in low light or the extreme contrast of brightness and darkness in a conference room.

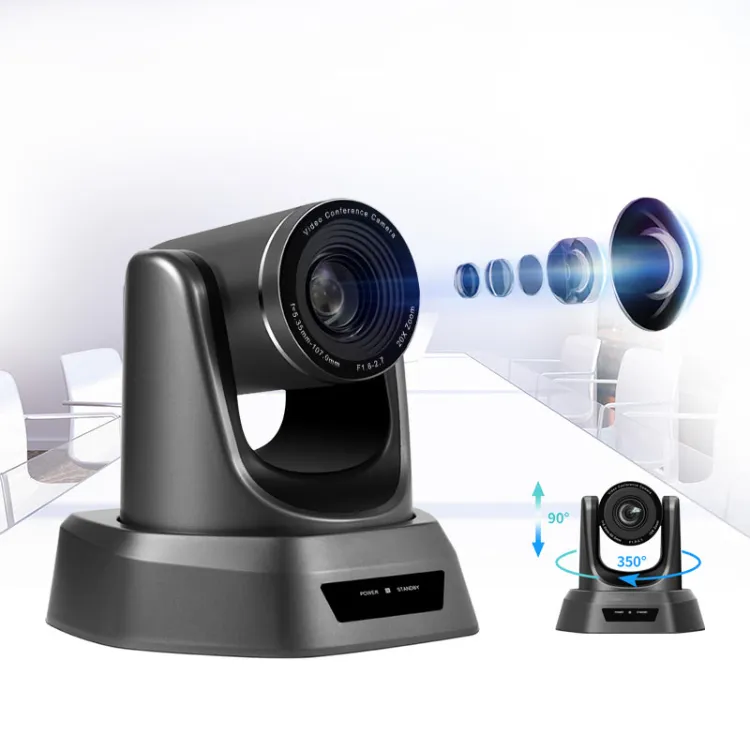

The camera covers a wide shooting angle and achieves high-speed, quiet, and precise positioning with smooth PTZ operations.

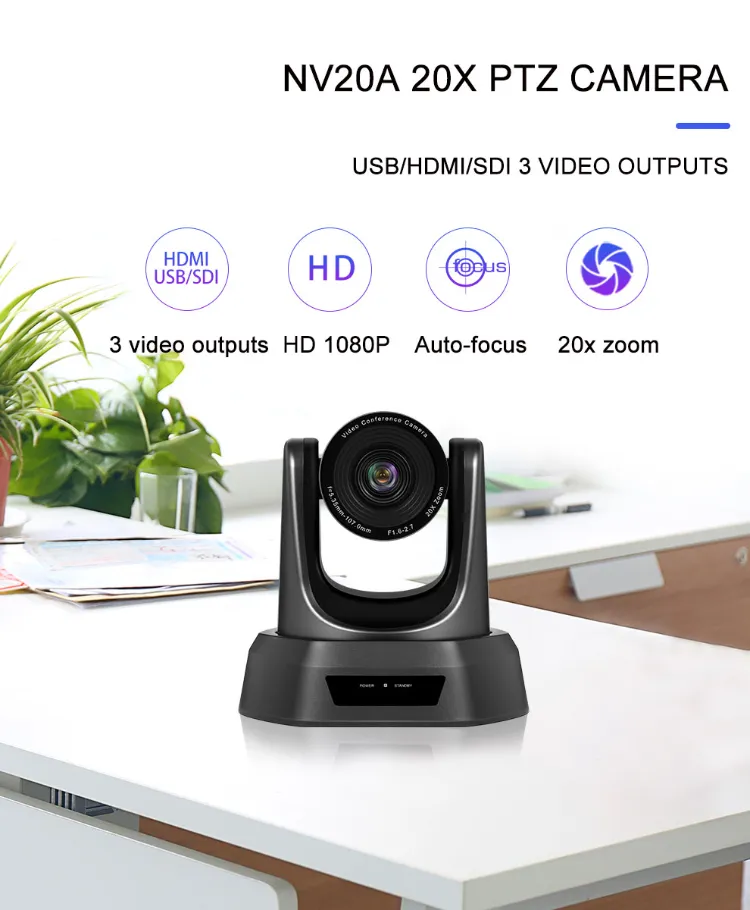

20x zoom with HDMI & SDI ideally suitable for medium size conference rooms, it connects with any Web conferencing system in Windows and MAC OS.
Technical specifications: NV20A 10x zoom video conference camera
| Model No | NV20A |
| Image Sensor | 1/3 inch HD CMOS |
| Effective Pixel | 2.38 megapixel |
| Horizontal Resolution | 1080P60/50/30/25,1080i60/50,720P60/50 |
| Focal Length | 138 degree fixed focus wide angle |
| Signal Standard | NTSC/PAL |
| Zoom | Auto focus |
| Horizontal View Angle | Near-end 54.7°~Far-end 3.3° |
| Gain Control | Auto/Manual |
| SNR Ratio | 8 to 1/10000s (auto) |
| Preset Position | IR remote control supports 9 presets, PELCO Protocol supports 255 presets; VISCA Protocol supports 64 presets |
| Pan/Tilt Movement Range | Pan: +-175°(max speed 80°/S), Tilt: -35°~+55°(max speed 60°/S) |
| Control Protocol | VISCA,PELCO-D,PELCO-P (RS-232,RS485) |
| Control Terminal | USB, RS-232, RS-485 |
| Video Output | USB 2.0, SDI, HDMI |
| Noise Reduction | 2D/3D |
| Work Temperature | -10°~50° |
| Work Humidity | -20°~60° |
| Baud Rate | 38400/9600bps |
| Address Set | 1~255 |
| Decoder | Built-in decoder |
| Installation | Support desktop, Tripod, Wall mount and ceiling mount |
| Video Compression Format | YUV, MJPEG,H.264 |
| Accessories | DC 12V power adaptor, IR remote control, manual, ceiling brackets and screws. |
| Size: | 182*182*182mm/262*233*220(before/ after packing) |

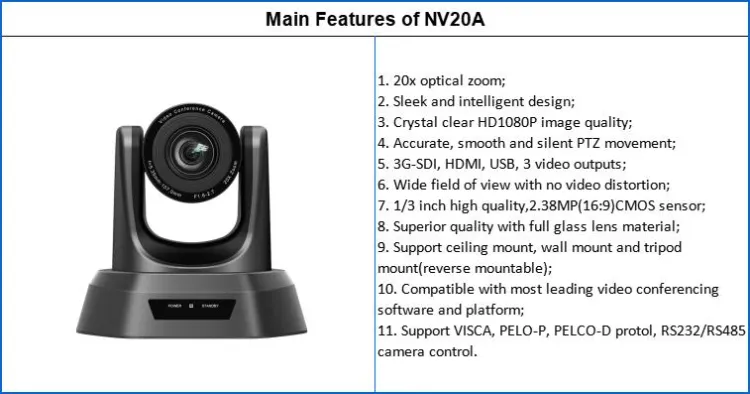

1.Main features of NV20A 20X zoom video conference camera
20x optical zoom; Sleek and intelligent design; 1/3inch high quality, 2.38MP (16:9) CMOS sensor;
3G-SDI, HDMI USB Video Output; Superior quality with Full Glass Lens Material;
Crystal clear HD1080P image quality; Accurate, smooth and silent PTZ Movement;
compatible with all popular applications and cloud system;

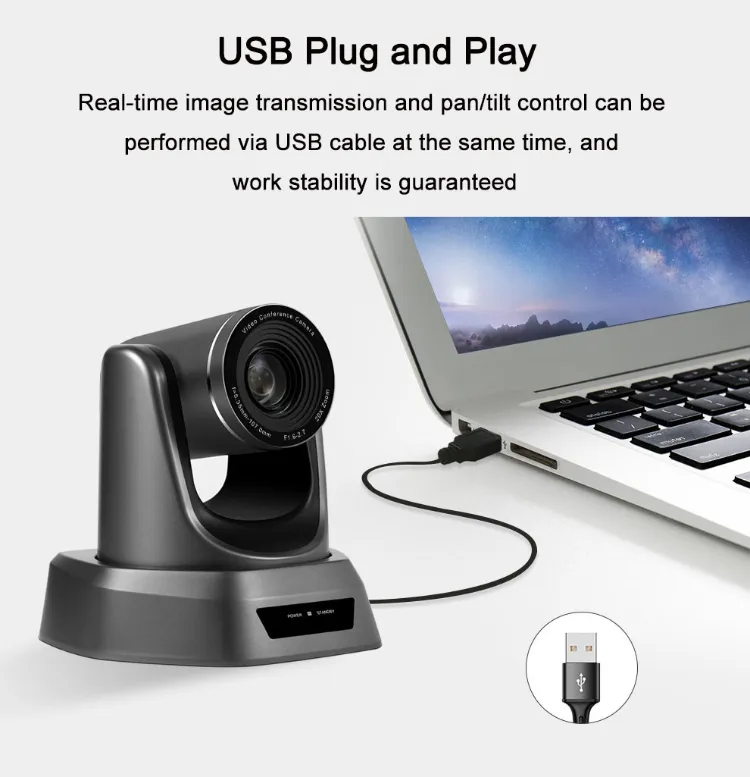

plug and play USB connectivity; Crystal clear full HD 1080p image quality;
Support ceiling mount, wall mount and tripod mount (Reverse mountable)
Preset function: select 1-9 to recall the saved position;

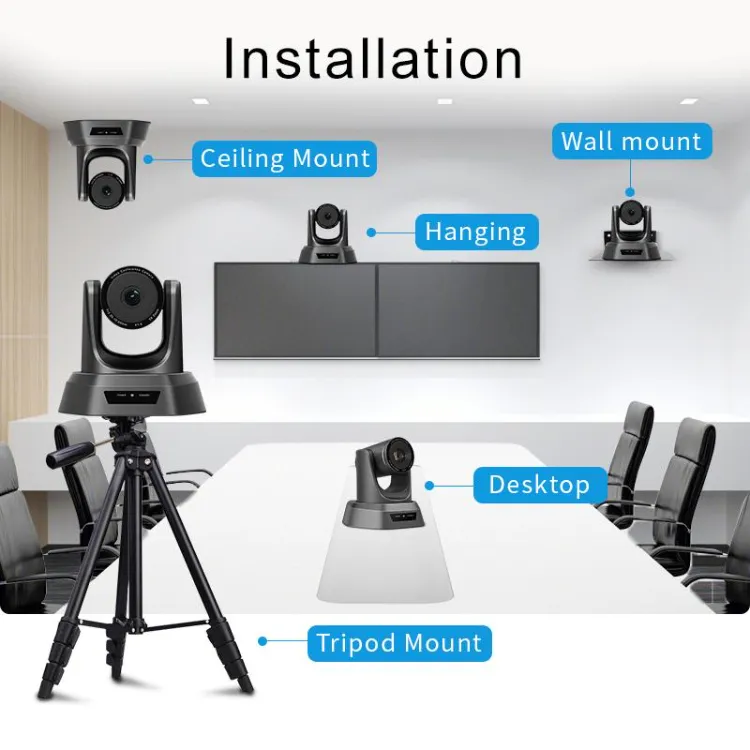

Installation:
The camera can set up on ceiling mount; hanging; wall mount; tripod mount and desktop;
Simple operation: No need driver, fast connection;Compatible with Zoom, Skype, MS team, Vmix, OBS, and other conferencing systems;
Compatible with Windows, MAC, and Android system;

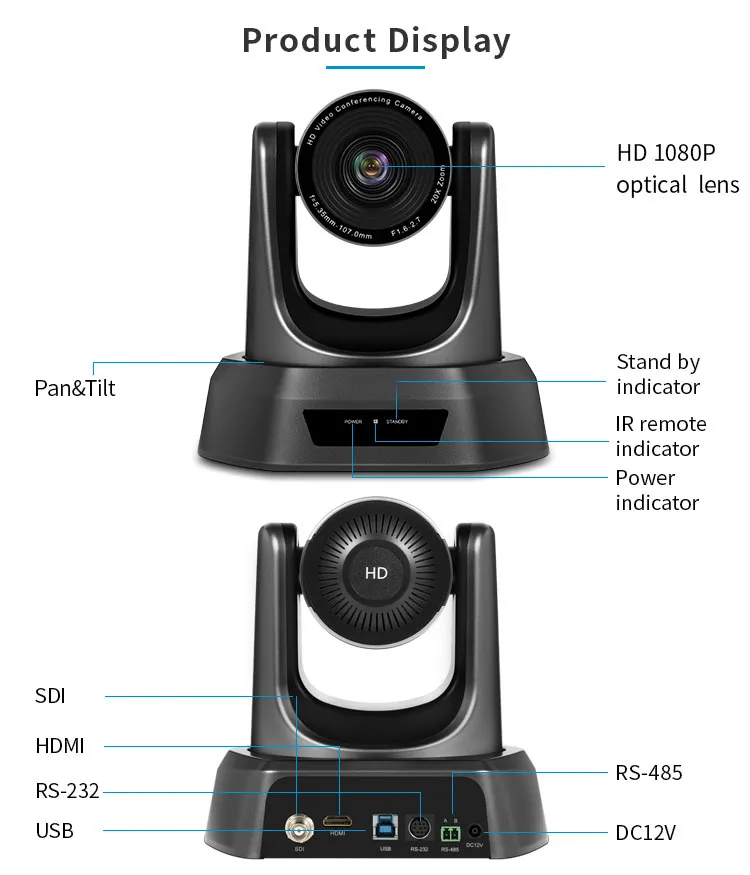

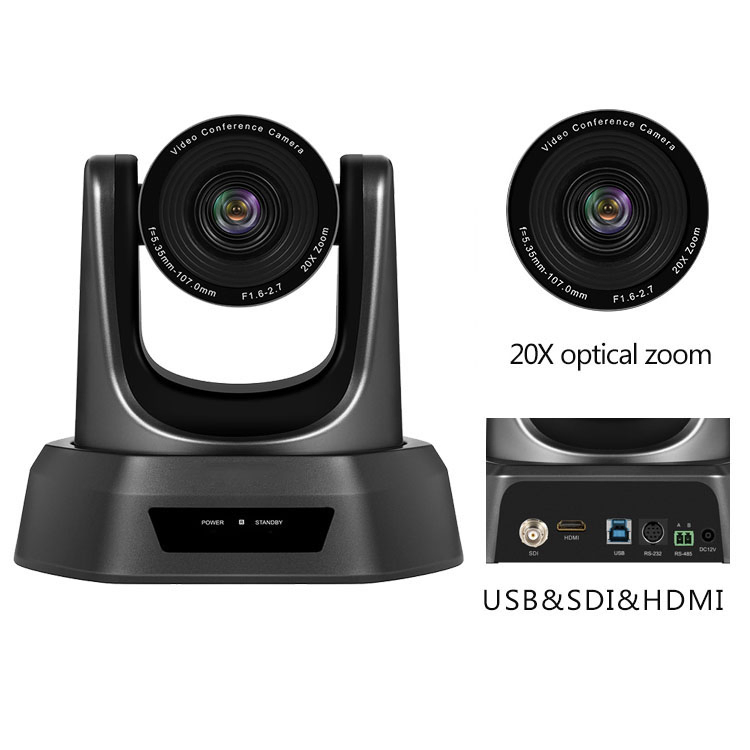

2.Main details of NV20A 20X zoom video conference camera:

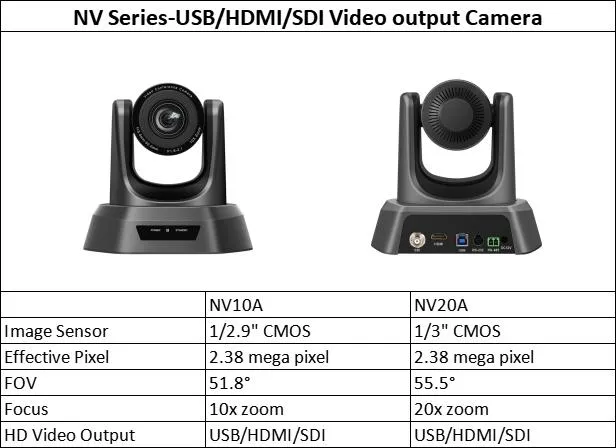

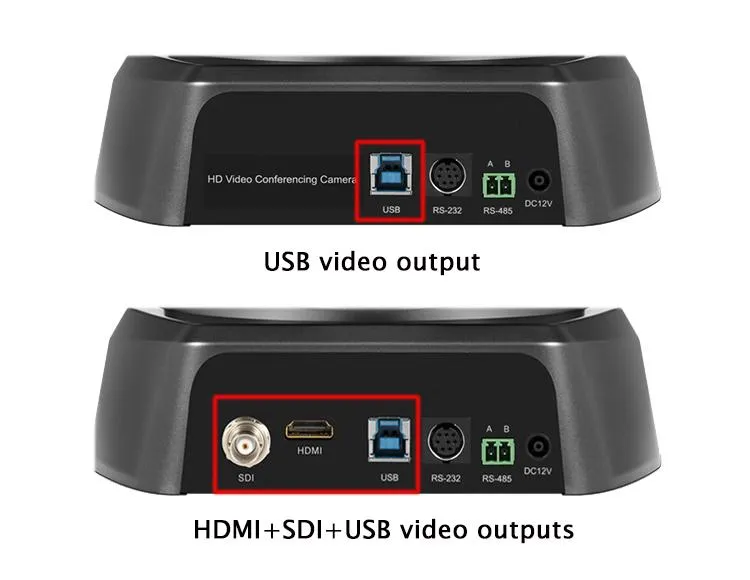

3.Main difference between NV20A and NV20U video conference camera:
4.NV series USB/HDMI/SDI 3 video outputs camera:
5.Main application of NV20A video conference camera:
1.Delivery:
For sample orders, we have products in stock; same-day shipping when we get the order;
For purchase order, we will ship within 3-7 working days;
2.Packaging:
Foam packaging inside; standard carton packaging outside.
1.Who we are?
Due to our extensive partner network, Tongveo can play a decisive role in international or global video conferencing projects. We focused on developing and implicating the technology of video conferencing products, SD, HD PTZ video conference camera and omnidirectional conference microphone speakers. We are professional and we have a good reputation in product development, production, sales and after service. We can design produce and sell directly in order to ensure the most competitive price and excellent quality under control. All of our products are compliant with CE, FCC and Rosh standards. We have established a sound sales & service network. Offices have been set up in Shenzhen, Hongkong, Beijing, Guangzhou, Xi'an,etc. We also successfully sold our products to many foreign countries. We are sincere to make any meeting better and easier! Welcome your OEM/ODM orders.
2. What we do?
We design, tool, produce and sell directly in order to ensure the most possible competitive price and excellent quality under Control. Our Product: Video conference camera, Video conference omnidirectional microphone, video Conference software product Video conference system, audio conference system, Network Conference system, Education system, Tele-medicine system, Courtrooms, Public safety system, Financial facility, Airports, Prisons, Highways, Port, Forest Fire Prevention, Schools and Customs systems.
2) 72 hours of the pre-delivery aging test. We own our independent aging test lab and all products undergo 72-hour aging tests before shipment.
2. Warranty We provide 24 months warranty guarantee, replacement within 3 months, and 24 months of free maintenance. Enjoy lifetime technical support service. (firmware upgrade service etc )
3. Qualified Certificates. Our products are produced in strict compliance with international standards ( CE, FCC, RoHS, VCCI, ISO 9001 ).
4. Japanese Production Guide. Completely follow the strict Japanese production standards to guide production.
About certificate:
We have got CE, ROHS, FCC and IS9001 certificates. We will make the production strictly according to the rules.
FAQ:
01. What kind of camera and microphone should l use?
Most laptops and monitors come with built-in cameras and microphones-these work great for Tenveo software. For meeting room spaces, we have video conferencing cameras and speakerphones that are specifically designed for small huddle rooms, conference and boardrooms, and large auditorium spaces. You can check our service guide for more information on different meeting room systems.
02. Is it easy to operate?
Yes, Setting up a conference room with TONGVEO doesn't require a technology degree - just connect the camera to a TV and the internet, give it power and pair it to your account to start making calls. There simply isn't a more powerful or easier-to-use video conferencing solution available.
03. Can I bring more than one person into a call at the same time?
Yes. We currently offer group calling for up to 500 different participants, which could be 500 people dialing in from their laptops, pad or mobile phones,500 different video conferencing systems full of people, or some mix of individuals and video conferencing systems depending on your preferences, there are some different layout options for how you want to view those larger group calls.
04. What is the resolution of your cameras?
We have 1920x1080p@60fps progressively output, and 1080p@30fps also 720p@30fps.
05. What is the Video Connector?
There are USB 2.0, HDMI HD-SDI, and USB Video output.
06. What is the zoom of your video conference cameras?
Support fixed focus, 3x 10X, 20X,30X optical zoom.
07. How to control this Camera?
There are RS232, RS485 PTZ Control, and also support VISCAPELCO-P, PELCO-D to control through your Codec or PC through RS232, and support IR remote control.
