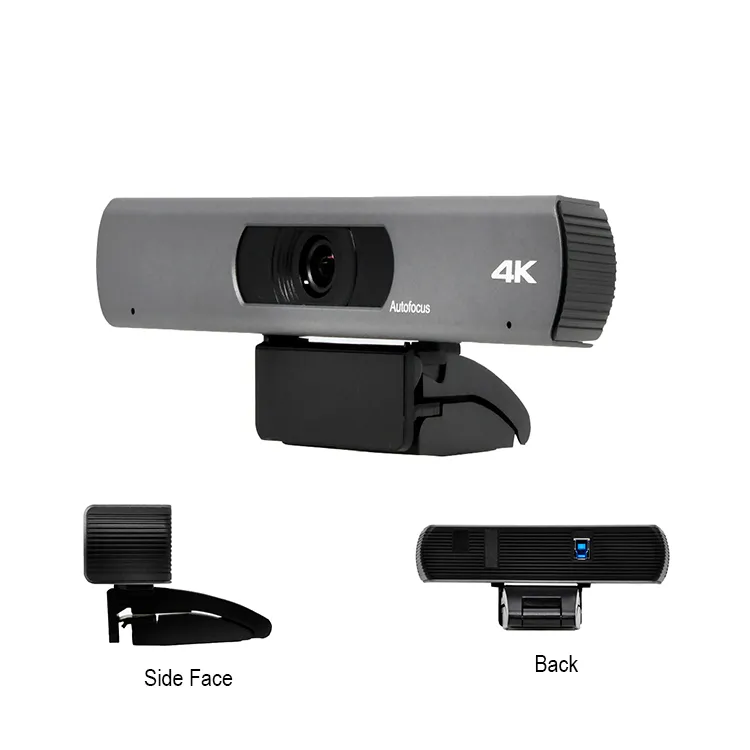

4K Ultra HD Auto Focus Camera USB 3.0 Built-in Microphone
Conferencing System Hardware 4K UHD 3.0USB Zoom Camera Main Features Ultra 4K HDSupport 4K Ultra HD with super resolution up to 4K@30fps/25fps encoding output, and down compatible with 1080p,720p.USB 3.0Full functional USB, 3.0 connection,power supply,video and audio all in one and support 2 streami......
Send Inquiry
Product Description

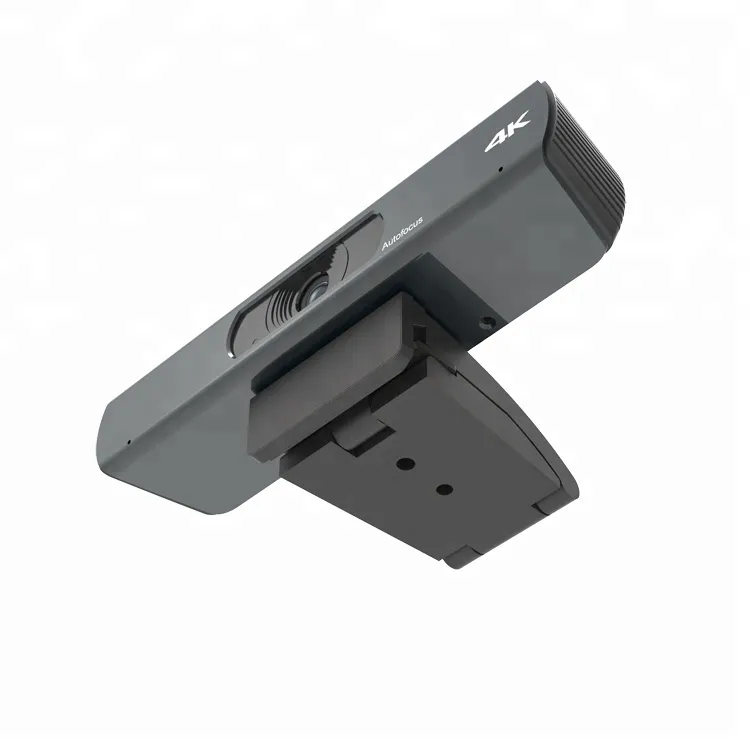

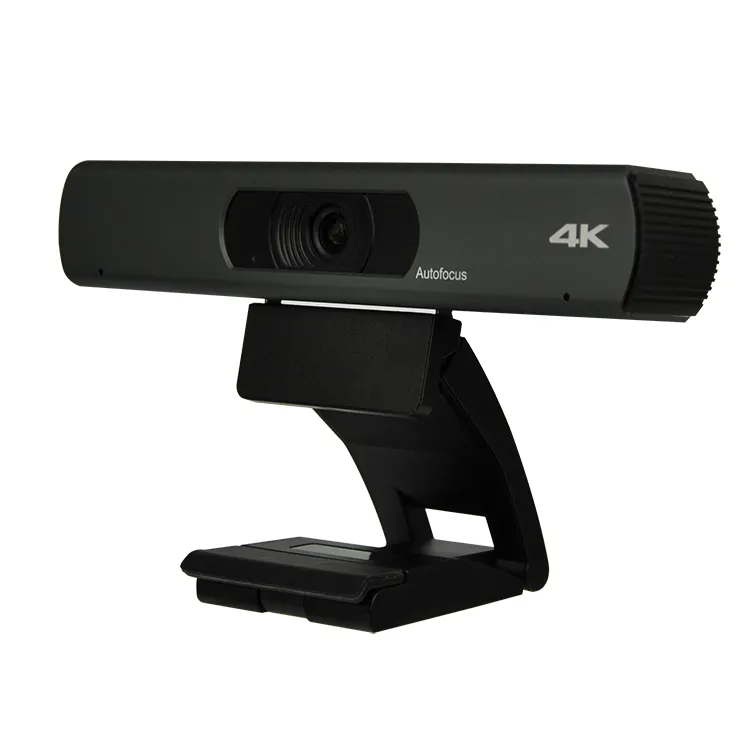

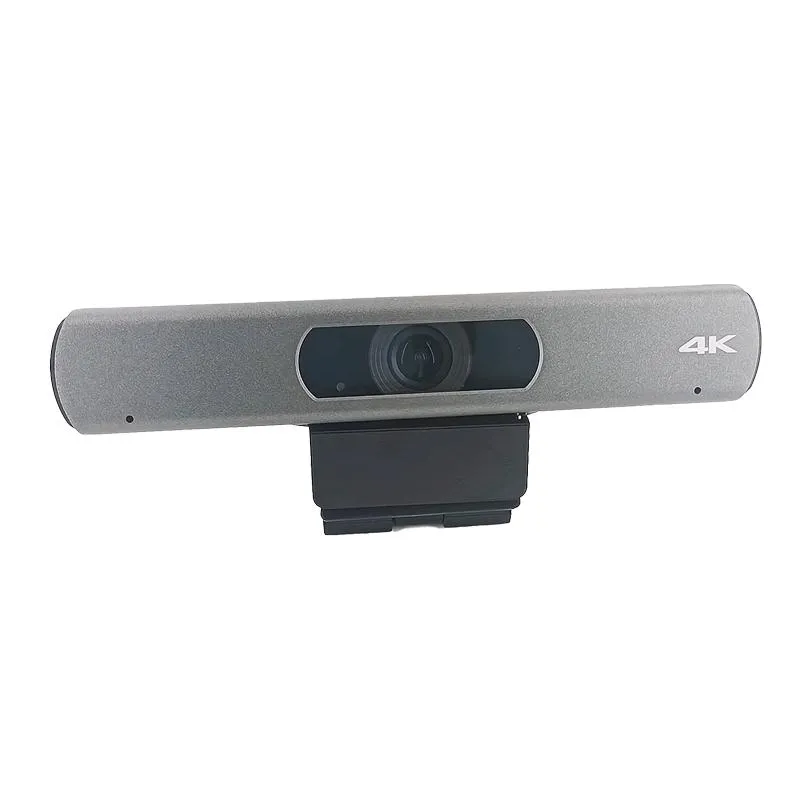

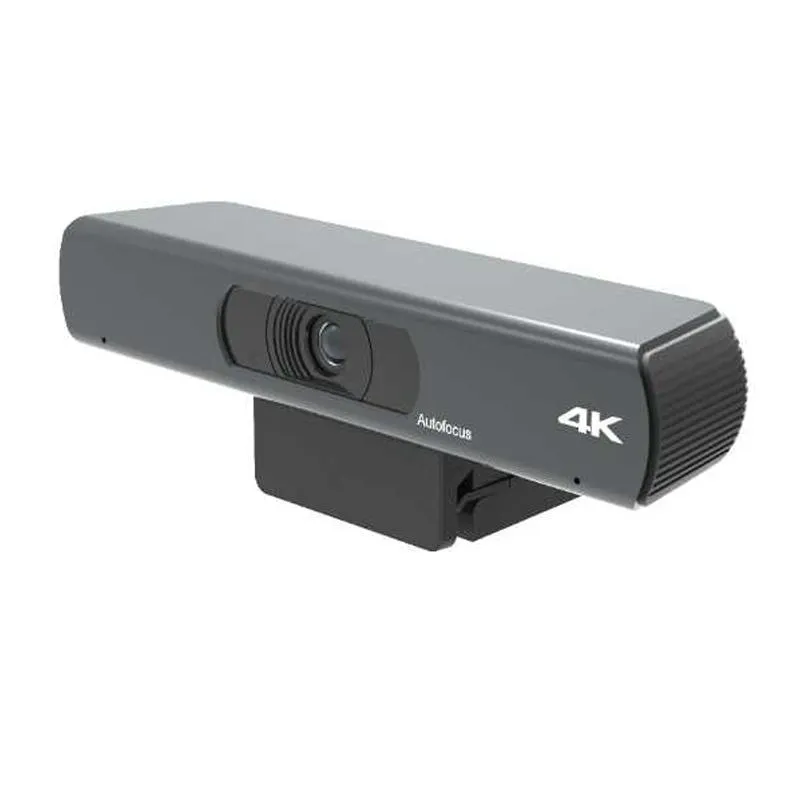

Conferencing System Hardware 4K UHD 3.0USB Zoom Camera
| Main Features | Ultra 4K HD Support 4K Ultra HD with super resolution up to 4K@30fps/25fps encoding output, and down compatible with 1080p,720p. USB 3.0 Full functional USB, 3.0 connection,power supply,video and audio all in one and support 2 streaming USB video signal(option) and one auido source. Lens Wide angle up to 84°(support autofocus)/120°. At the same time, it supports EPTZ to make it more biger and visible. Built in Microphone Built in microphone array,omnidirectional pickup, pickup distance up to 12 meters, noise suppressing algorithm with excelent sound. WDR Support WDR, can handle different lighting environmemt. Low Light Star-level ultra-high noise ratio of the new CMOS image sensor can effectively reduce the low noise in the case of image noise, while the application of 2D and 3D noise reduction algorithm, significantly reducing the image noise, even under low light conditions, still keep the picture Clean and clear, the image signal to noise ratio up to 55dB or more. Easy Installation Equiped with damping rotary shaft bracket, to meet the market almost 100% of the display, easy to install, stable and reliable. |
| Model | GT-JX1700US |
| Name | 4K Ultra HD USB Camera |
| Camera | |
| Sensor | 1/2.5'', CMOS, Effective Pixel: 8.29M |
| Scanning Mode | Progressive |
| Lens Mount | M12 |
| Lens 1(Default) | Focus: f=3.5mm, FOV: 84° |
| Lens 2 | Focus: f=2.8mm, FOV: 120° |
| Autofocus | Support(84°) |
| Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual |
| Camera bracket | bracket with damper |
| Digital Noise Reduction | 2D,3D digital noise reduction |
| Backlight Compensation | Support |
| USB Features | |
| Operate System | Windows® 7 (1080p and under only), Windows 8.1, Windows 10 or higher |
| macOS™ 10.10 or higher | |
| Google™ Chromebook™ Version 29.0.1547.70 or higher | |
| Linux | |
| 2.4 GHz Intel® Core 2 Duo processor or higher | |
| 2 GB RAM or more | |
| USB 2.0 port (USB 3.0 required for 4K) | |
| Color System / Compression | H.264 / MJPEG/YUY2/NV12 |
| Video Format | 4k@30fps/25fps, 1080p@30fps/25fps, 720p@30fps/25fps, 960x540p@30fps/25fps, 640x360p@30fps/25fps etc |
| USB Video Communication Protocol | UVC 1.0 |
| UVC PTZ | Support(EPTZ) |
| Input/Output Interface | |

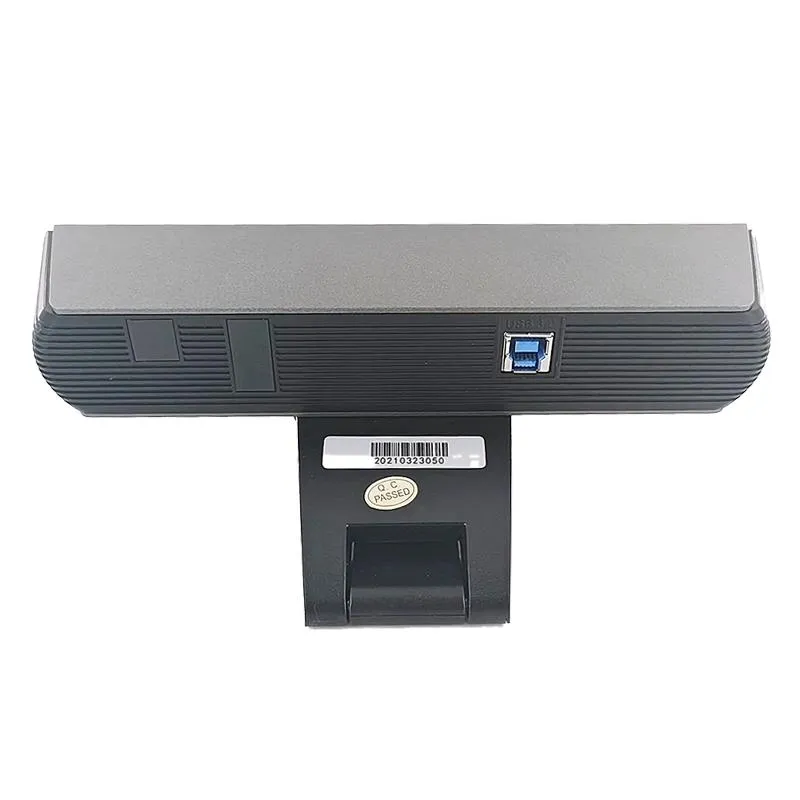

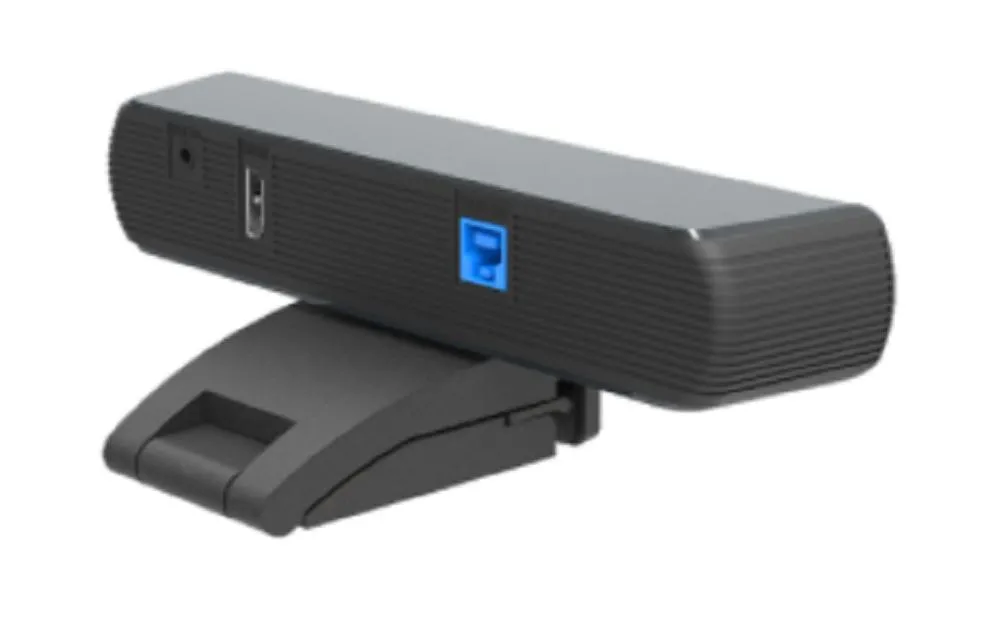

| USB Interface | 1xUSB 3.0: Type B, famale |
| General specification | |
| Input Voltage | 5V (USB power supply) |
| Current Consumption | 600mA(MAX) |
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) |
| Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Power Consumption | 3.0W(MAX) |
| Size | 194mm x 34mm x 42mm (without bracket) |
| Net Weight | 0.5KG |
| MTBF | 30000h |

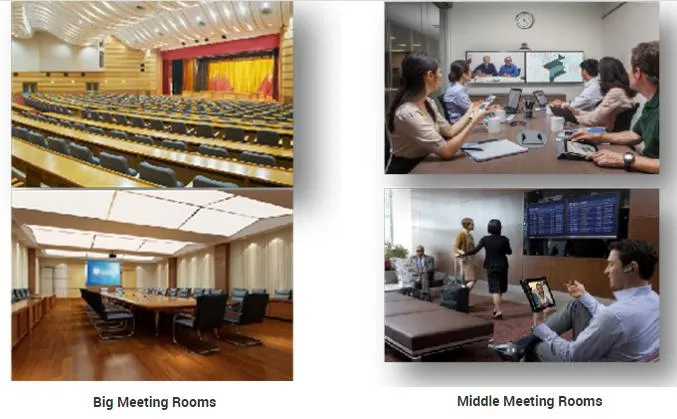

Applications

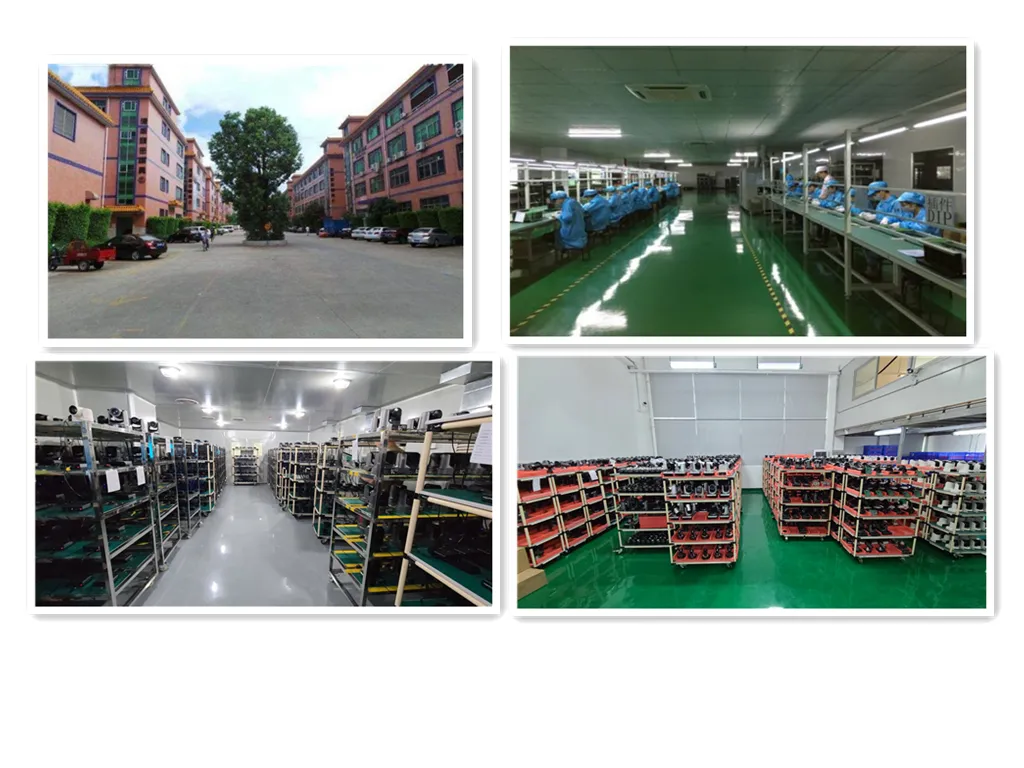

About GT Camera
Shenzhen Grandtop Electronics was established in 2005,a member of Grandtop Group, we are ISO9001,ISO13485,IATF16949 certified and UL approved factory, GT Camera is a professional AV integration and conference solution provider, since it's founded in 2008, GT Camera has been focusing on the high-definition video camera and its accessories. Its products range from HD video conferencing camera, to 4K cameras with intelligence analysis capabilities, MCU, All-in-one camera, microphone and etc.
GT Camera's core competence lies in deep understanding of the industry user needs, many years of experience in video communication, ability to convert advanced technologies into product, sincere customer service, and flexible business model.
We welcome customers from all over the world! OEM/ODM available!
Certifications
A: Manufacturer with more than 10 years experience.
2. Q: What's your main products?
A: We have been focusing on the production of HD&4K video cameras and its accessories since 2008.
3. Q: Can you do OEM / ODM for us?
A: Of cause. Let us know what you need, we'll do it for you.
4. Q: Can we visit your factory?
A: Yes, warmly welcome to visit our factory anytime, our factory is only half an hour driving from the Shenzhen Airport.
5. Q: If there is any problem about your products, should we have a refund or replacement?
A: If there is any problem within one year, you will get a brand new replacement.
6. Q: What is your delivery time?
A: For samples, within 1-3 working days after payment received. For bulk order,it depends on your quantity and requirements on OEM / ODM.
