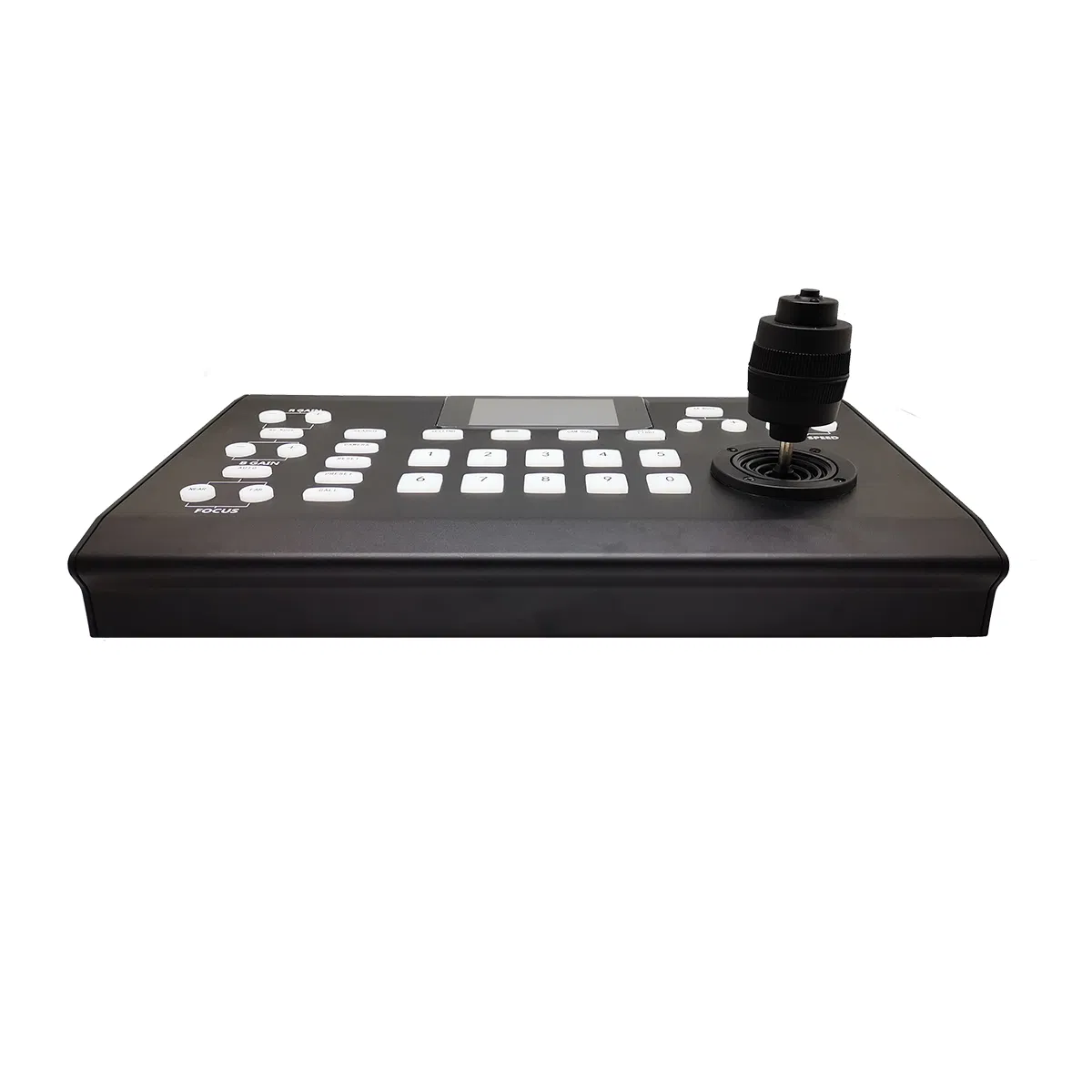

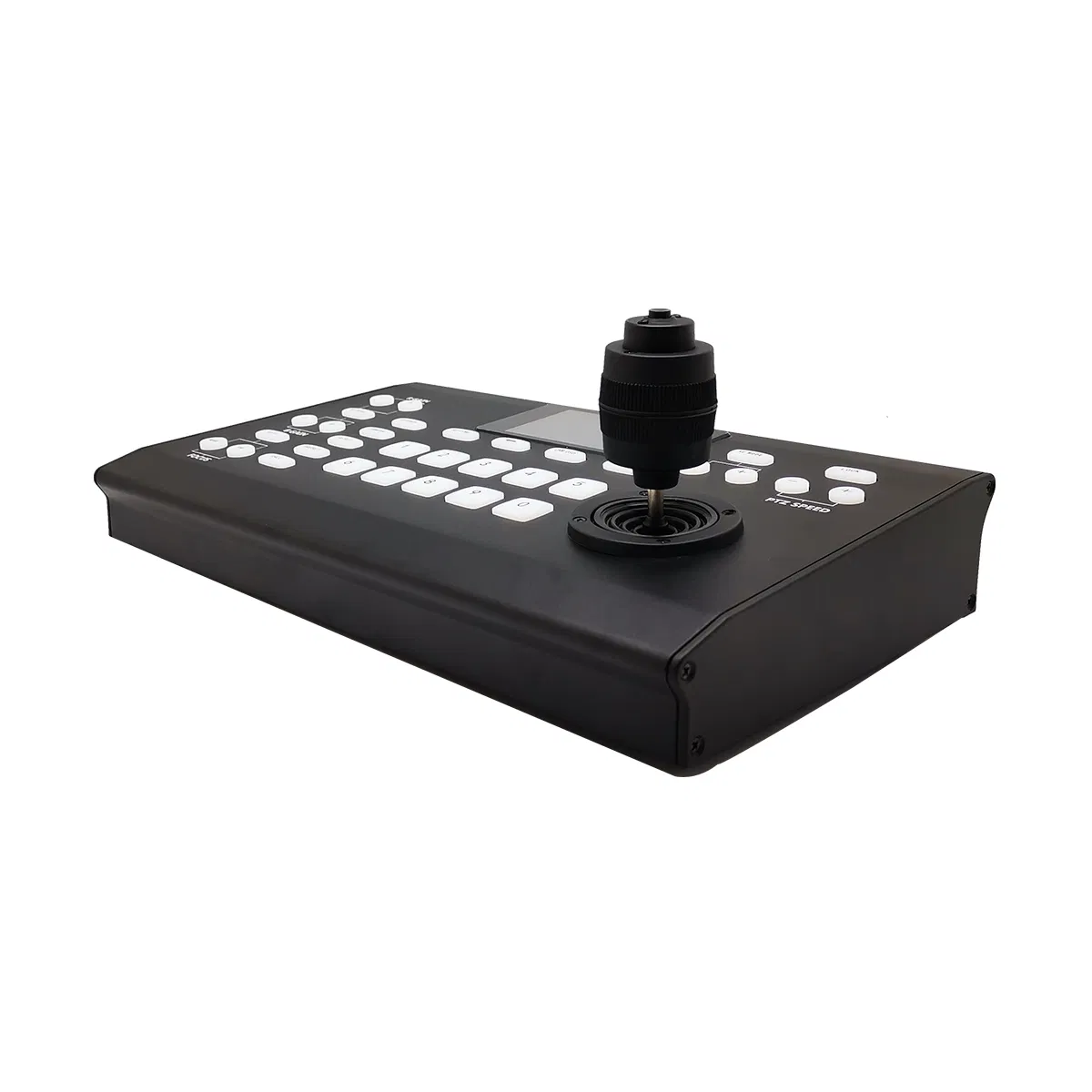

CCTV PTZ Camera Controller Keyboard Joystick for video Conference
Function introduction:1. Support agreement: VISCA, PELCOD, PELCO-P2. Baud rate: 2400, 4800, 9600, 19200, 384003. VISCA protocol address is automatically assigned, with automatic camera address search function.4. It can be used with cameras of different brands at the same time, automatically switch t......
Send Inquiry
Product Description
Function introduction:
1. Support agreement: VISCA, PELCOD, PELCO-P
2. Baud rate: 2400, 4800, 9600, 19200, 38400
3. VISCA protocol address is automatically assigned, with automatic camera address search function.
4. It can be used with cameras of different brands at the same time, automatically switch the protocol and baud
rate.
5. Control lever:
(1) Direction control: More than 8 direction control, 24 direction speed parameters,
(2) Zoom control: Rotate the zoom button ZOOM: 7-level zoom speed parameters;
(3) Real-time control: the joystick can control the direction and zoom at the same time.
Tech Parameters:
1. Support agreement: VISCA, PELCOD, PELCO-P
2. Baud rate: 2400, 4800, 9600, 19200, 38400
3. VISCA protocol address is automatically assigned, with automatic camera address search function.
4. It can be used with cameras of different brands at the same time, automatically switch the protocol and baud
rate.
5. Control lever:
(1) Direction control: More than 8 direction control, 24 direction speed parameters,
(2) Zoom control: Rotate the zoom button ZOOM: 7-level zoom speed parameters;
(3) Real-time control: the joystick can control the direction and zoom at the same time.
Tech Parameters:

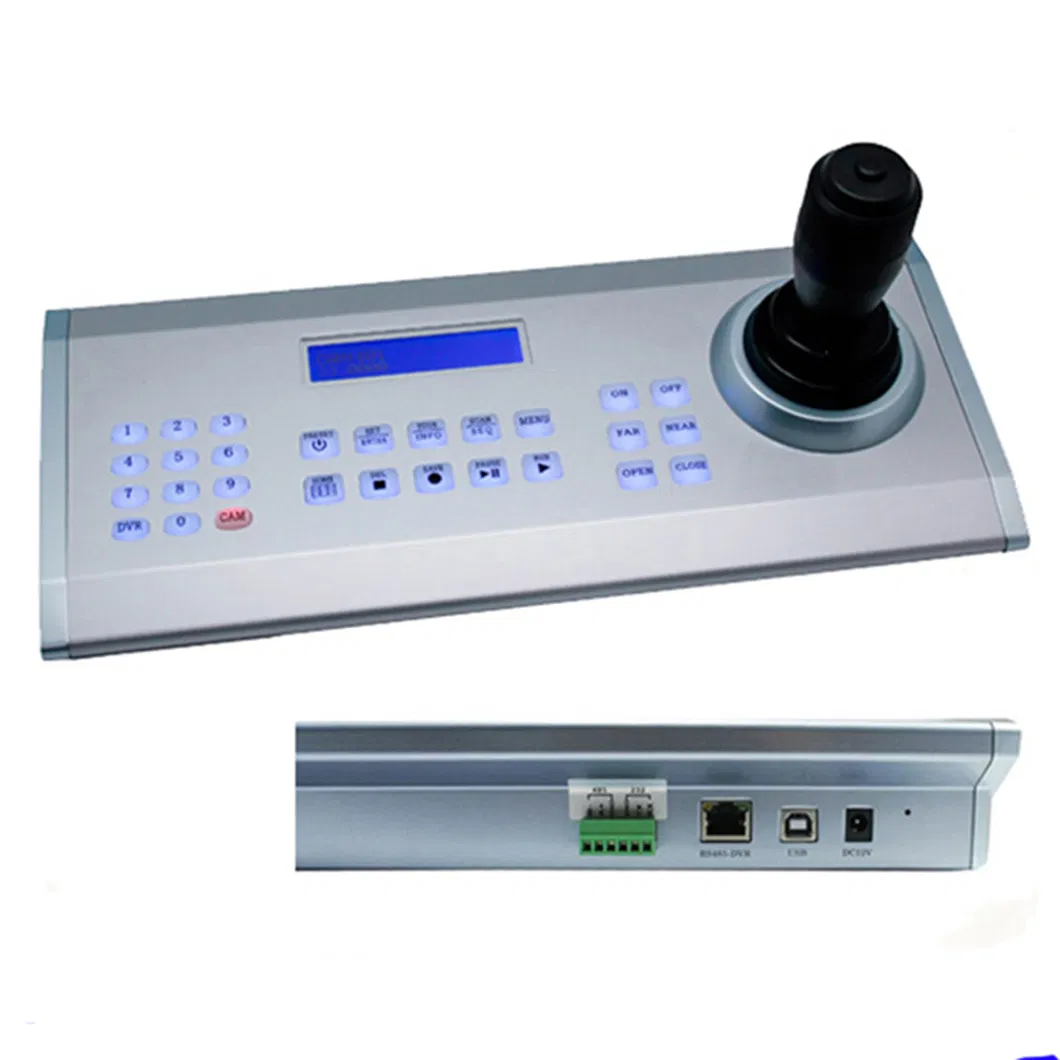

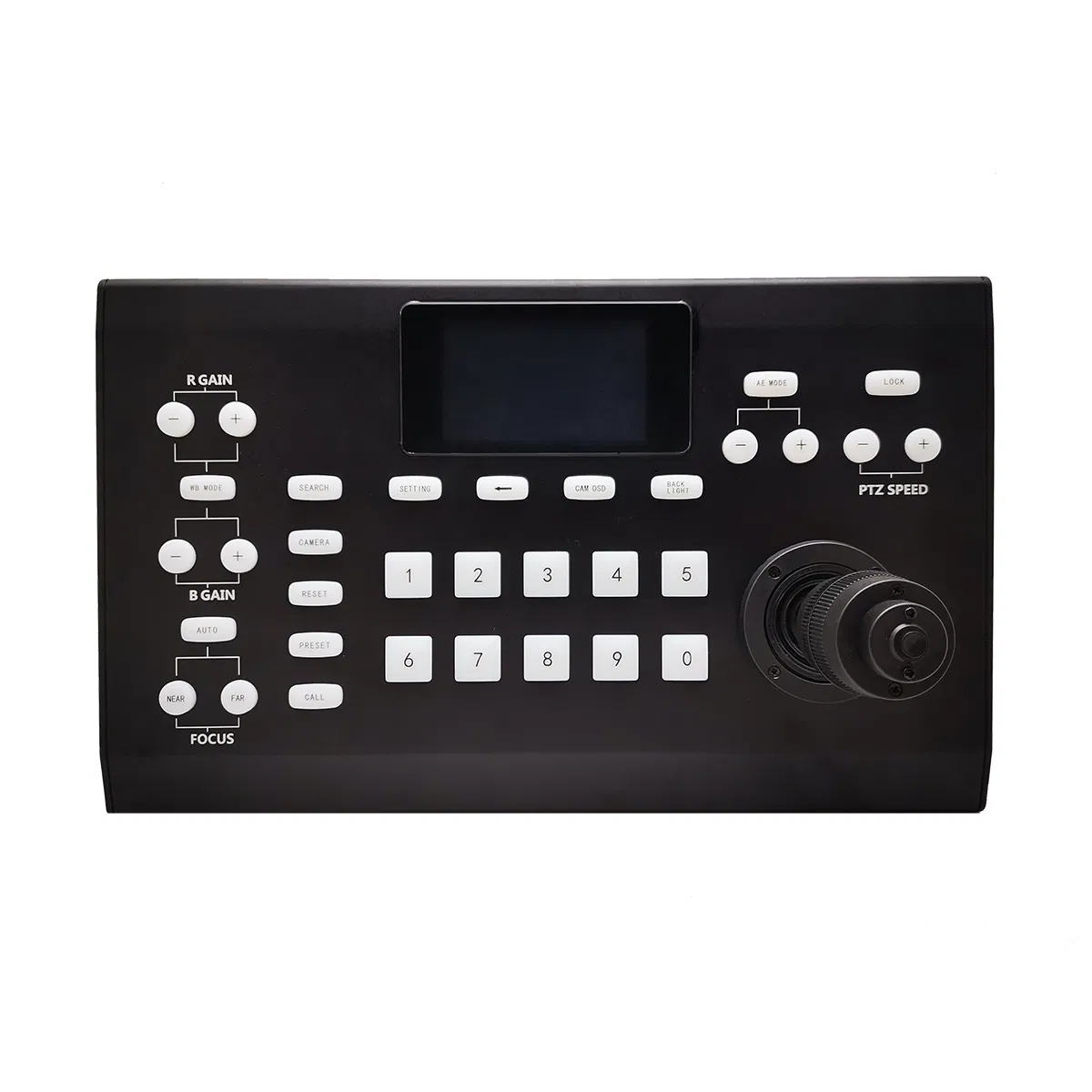

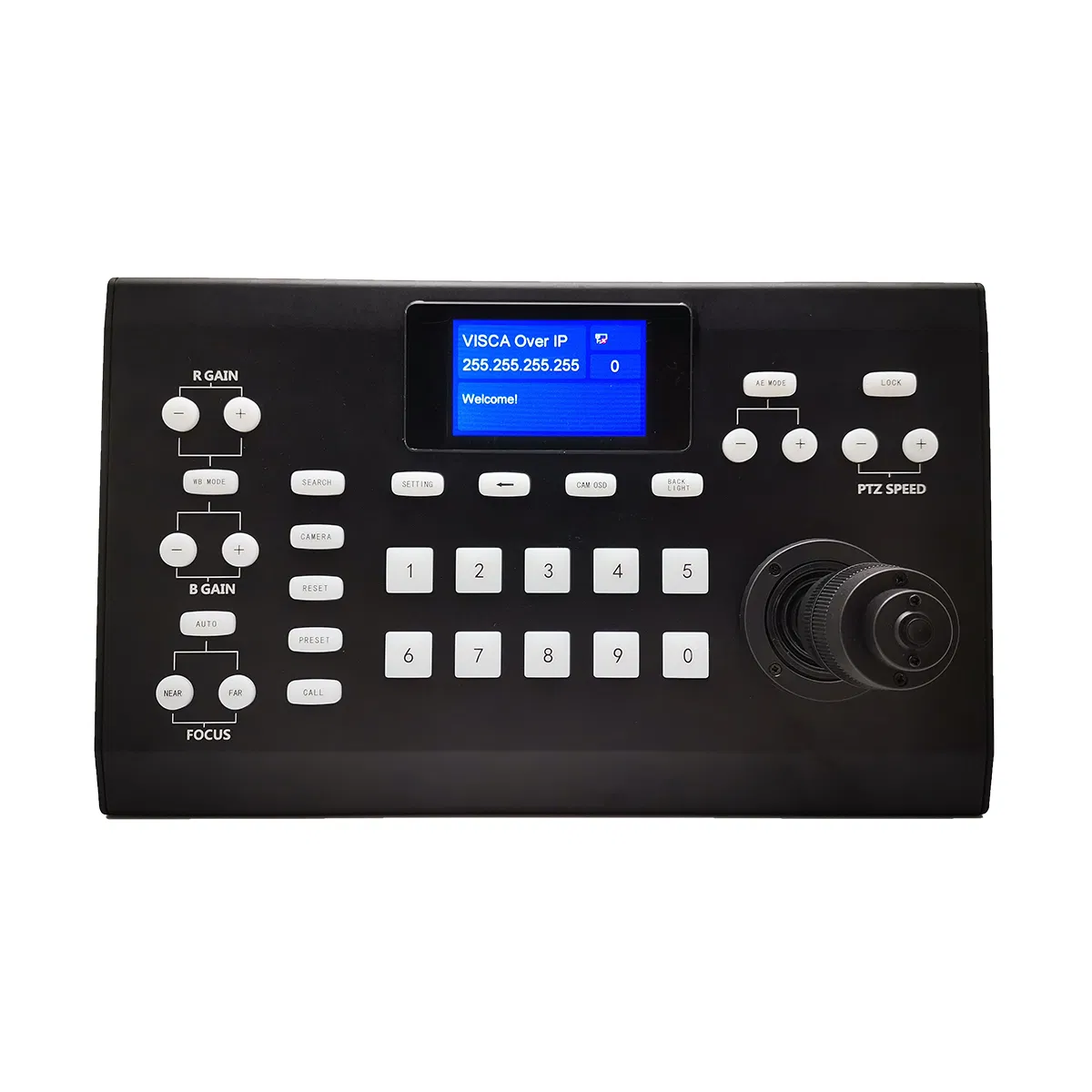

| Joystick | 3 axis + 1 button |
| Buttons | 23 silicone buttons, monochrome backlight, non-adjustable brightness |
| Display | 160*32 resolution, blue backlight |
| Dimensions | 290(L) *189(W)*40(H)mm |
| Weight | 1.60kg (net weight without configuration) |
| OeratingTmperature | -10°C -40°C |
| Humidity | 30%-80%(w/o condensation) |
| Adapter | AC100-240V-12VDC/3000mA |
| Power consumption | 3.6W(not loaded line) |

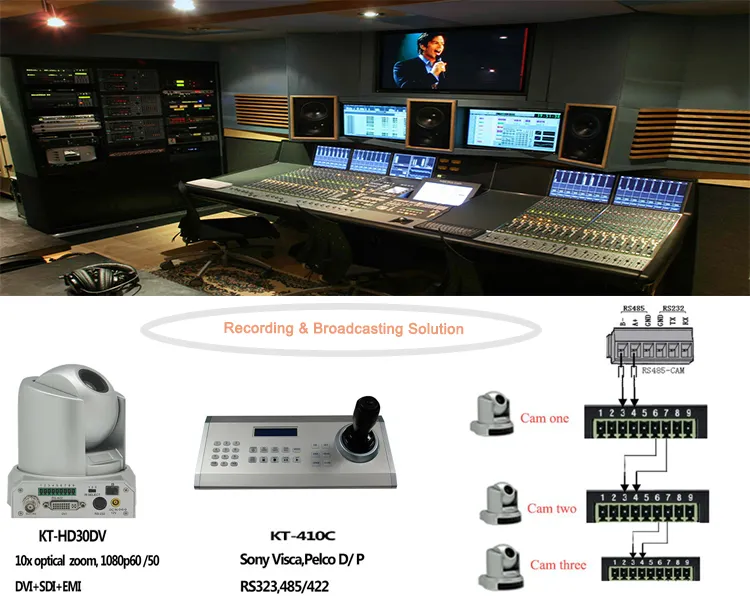

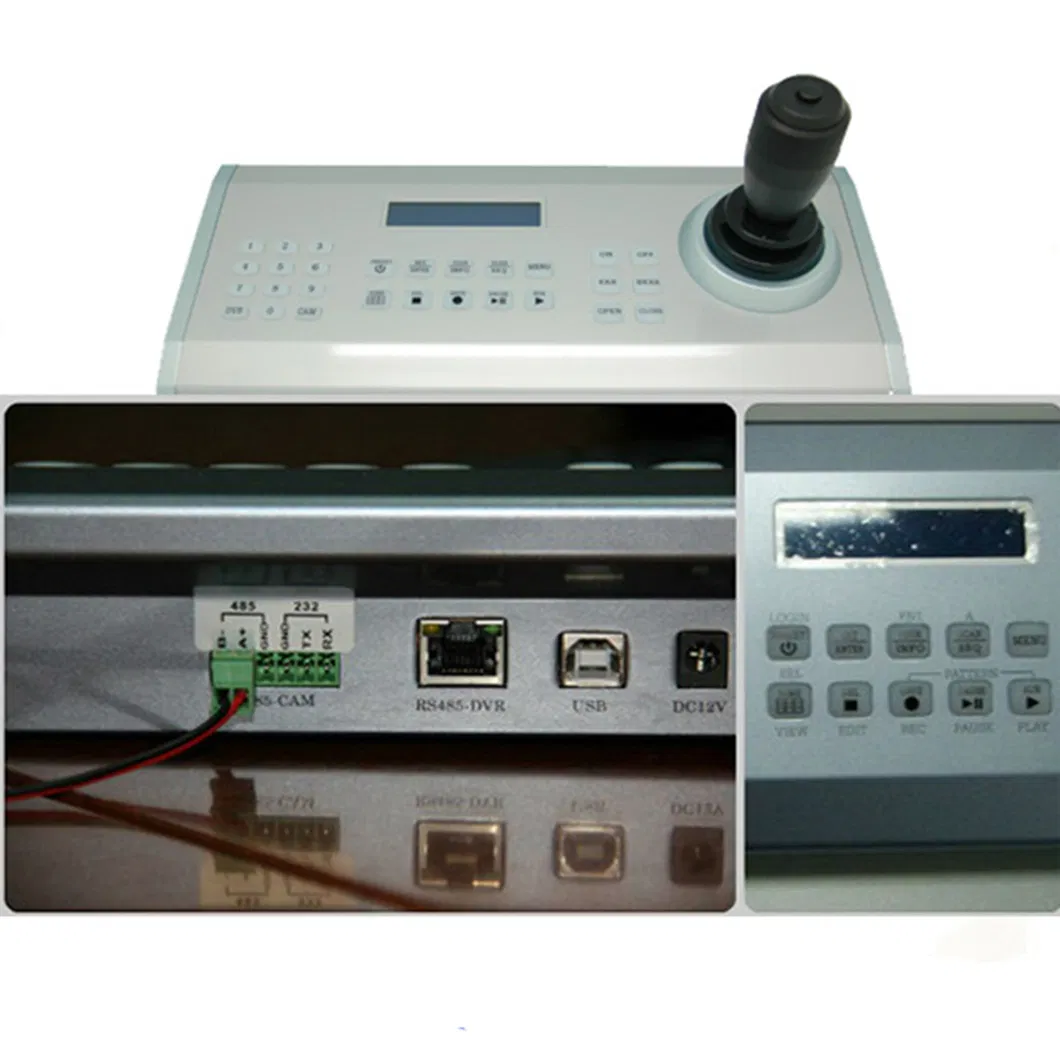

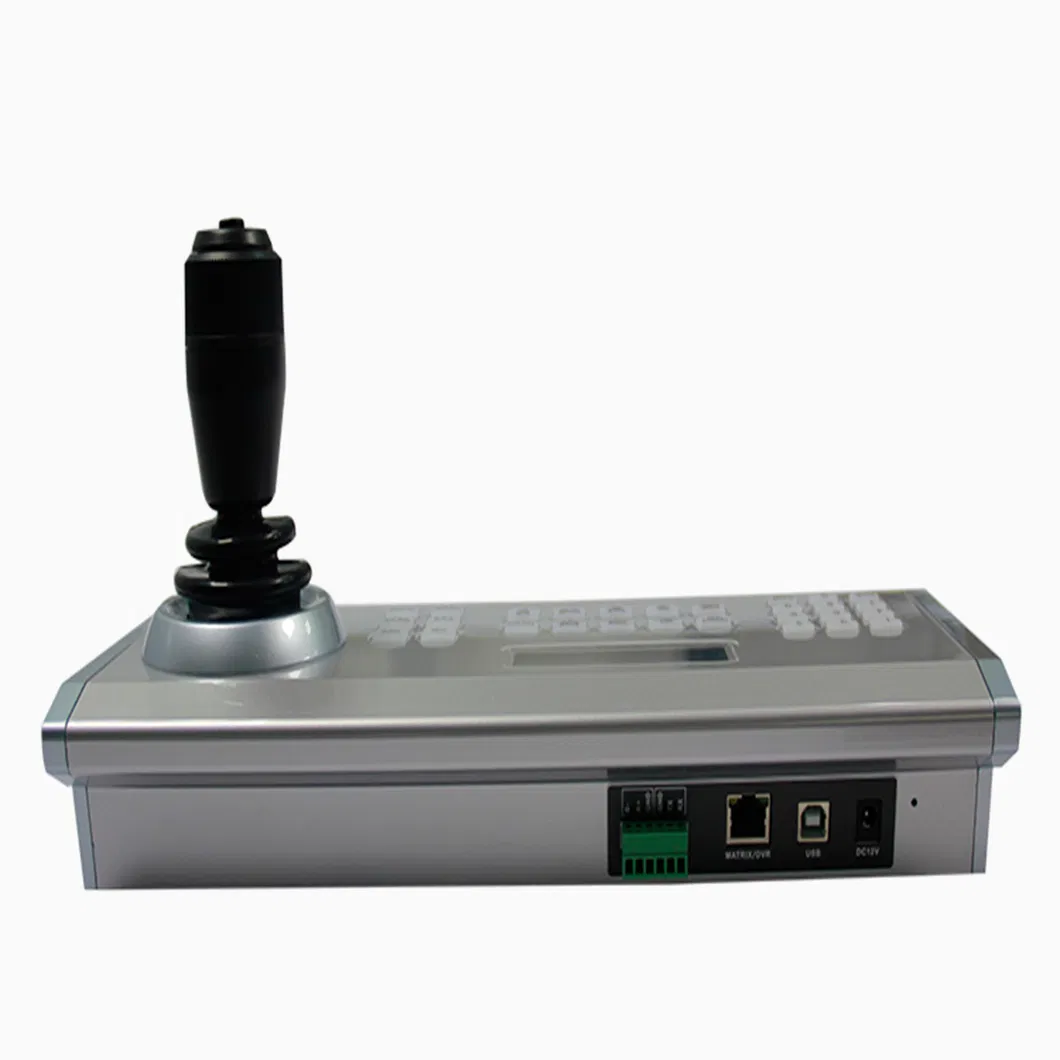

| Connectors | (1) RS485:Connect to camera, equivalent to RS422 sending port, 2000M distance |
| (2) RS232:Connect the camera, the camera used for RS232 communication | |
| (3) USB-D: USB2.0 is used to connect to computer, server, NVR, (optional interface requires protocol customization), etc. |

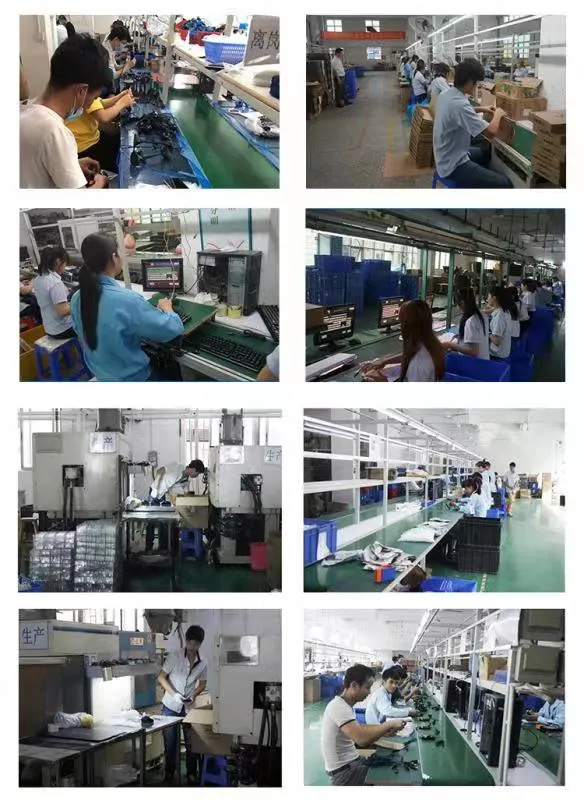

Q1. How does your factory do regarding quality control?
A: Quality is priority. In order to control quality better, all of our products are inspected for 4 times by QC
staff before delivery. The first time for raw material, second time for finished products, third for
products appearance and fourth for function.
Q2. What's your main product?
A: The main product in our company is for computer game accessories, such as PTZ webcam, normal
webcam,keyboard and mouse, etc .
Q3. What's the universal lead-time for order delivery?
A: 1-3 working days for small order, by International express: DHL, UPS. 3-7 working days for bulk
order. Mass order: by sea, 11-40 days (According to the port of destination of each country different,
the ETA Date will be different)
Q4.Is it possible for OEM?
A: Yes
Q5.About the payment?
A: We suggest paying in Bank(T/T), and also you can pay by other way.
Q6.Can I get a cheaper price?
A: In order to making both of us are win-win, so we can give you a better price after you test your
market, and place a significant quantity.
Welcometo contact us!
