Gonsin Conferencia Digital Equipos Sistema De Conferencias Votacion Electronica Microfono Gooseneck Inalambrico Con Video camera
DCS-1021 Wireless Congress SystemMain FeaturesSupport 2.4 G / 5.8G dual-band communication to ensure system stability;Microphone sensitivity can be adjusted from level 0 to 4;With offline 8 in 1 out SD video tracking matrix, HD camera is supported;Terminals can be uniformly shutdown by server after ......
Send Inquiry
Product Description
DCS-1021 Wireless Congress System
Main Features
Support 2.4 G / 5.8G dual-band communication to ensure system stability;
Microphone sensitivity can be adjusted from level 0 to 4;
With offline 8 in 1 out SD video tracking matrix, HD camera is supported;
Terminals can be uniformly shutdown by server after the conference;
With timing function, when the timing ends, the server can be used after reauthorization;
System capacity can be up to 450 units of terminals;
CD-quality sound;
Multiple systems work simultaneously under same environment
Main Features
Support 2.4 G / 5.8G dual-band communication to ensure system stability;
Microphone sensitivity can be adjusted from level 0 to 4;
With offline 8 in 1 out SD video tracking matrix, HD camera is supported;
Terminals can be uniformly shutdown by server after the conference;
With timing function, when the timing ends, the server can be used after reauthorization;
System capacity can be up to 450 units of terminals;
CD-quality sound;
Multiple systems work simultaneously under same environment
without disturbing each other.

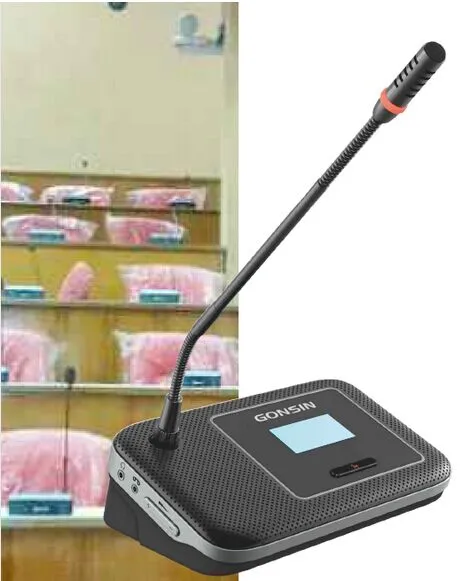

wireless congress terminal
Features
Support 2.4 G/ 5.8G dual-band communication;
CD-quality sound;
Terminal battery duration (speaking state ≥ 14 hours;
Highly resistant to mobile phone interference
Pluggable MIC stem;
Metal material, high texture;
Microphone sensitivity can be adjusted from level 0 to 4.

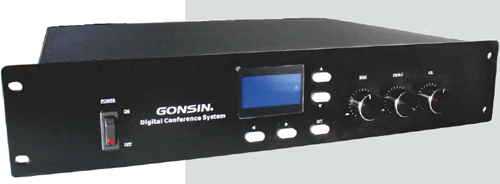

Congress server
Features
The congress server platform is based on Linux operating system, applicable for any large convention center requiring strict working conditions;
Fully digital technology for audio signal processing and transmission, which complies with the IEC 60914 international standards for conference systems;
High performance DSP solution optimized for digital audio processing;
Unified Server Shutdown function.
Functions
Each server has a globally unique ID number ,which is easy for installation and orderly management;
Supports 8 x 1 SD / 8 x 8 HD automatic camera tracking function;
Two microphone modes: AUTO / FIFO;
Up to 4 microphones can be active simultaneously (1 chairman terminal +1/2/3 delegate terminal);
The server comes with an LCD panel and navigation buttons, which are for all function setup operation;
Terminal ID number can be wrote through the server, more convenient for device management;
Unified terminals shutdown function hens effectively reduce the work;
Sound pickup sensitivity of the terminals can be adjusted individually or collectively via the server;
Technical Specifications
Capacity Single wireless AP.150Terminals;
can be extended to 450 terminals with extra wireless AP
Frequency response 30Hz~20KHz
Signal to noise ratio ≥75dB
Distortion Degree ≤0.5%(50HZ~8KHZ)
System stability Communication distance 30m
LCD panel 128×64 dot matrix
Main supply AC110~220V± 10%50~60Hz
Audio Output +20dBu
Ports 1×8pin(to connect interpreter console)
2×audio output
1×RJ-45(to connect a wireless AP/PC)
1×RS-232(to connect camera tracking switcher)
1×RS-485(to connect camera)
Mounting 19*standard cabinet
Dimensions(W×H×D) 485mm×90mm×325mm
Weignt 7.2kg
Operating temperature 0~45°C
Storage temperature -20~50°C
Charging Cabinet
wireless congress terminal
Features
Support 2.4 G/ 5.8G dual-band communication;
CD-quality sound;
Terminal battery duration (speaking state ≥ 14 hours;
Highly resistant to mobile phone interference
Pluggable MIC stem;
Metal material, high texture;
Microphone sensitivity can be adjusted from level 0 to 4.
Congress server
Features
The congress server platform is based on Linux operating system, applicable for any large convention center requiring strict working conditions;
Fully digital technology for audio signal processing and transmission, which complies with the IEC 60914 international standards for conference systems;
High performance DSP solution optimized for digital audio processing;
Unified Server Shutdown function.
Functions
Each server has a globally unique ID number ,which is easy for installation and orderly management;
Supports 8 x 1 SD / 8 x 8 HD automatic camera tracking function;
Two microphone modes: AUTO / FIFO;
Up to 4 microphones can be active simultaneously (1 chairman terminal +1/2/3 delegate terminal);
The server comes with an LCD panel and navigation buttons, which are for all function setup operation;
Terminal ID number can be wrote through the server, more convenient for device management;
Unified terminals shutdown function hens effectively reduce the work;
Sound pickup sensitivity of the terminals can be adjusted individually or collectively via the server;
Technical Specifications
Capacity Single wireless AP.150Terminals;
can be extended to 450 terminals with extra wireless AP
Frequency response 30Hz~20KHz
Signal to noise ratio ≥75dB
Distortion Degree ≤0.5%(50HZ~8KHZ)
System stability Communication distance 30m
LCD panel 128×64 dot matrix
Main supply AC110~220V± 10%50~60Hz
Audio Output +20dBu
Ports 1×8pin(to connect interpreter console)
2×audio output
1×RJ-45(to connect a wireless AP/PC)
1×RS-232(to connect camera tracking switcher)
1×RS-485(to connect camera)
Mounting 19*standard cabinet
Dimensions(W×H×D) 485mm×90mm×325mm
Weignt 7.2kg
Operating temperature 0~45°C
Storage temperature -20~50°C
Charging Cabinet
Features
Real time management of battery and charging current
Green/Red LED indicator lights for charging status
Charging contacts are designed to prevent wrong-way Insertion
Functions
Real time management of battery and charging current,extending battery lifetime ;
With an independent modular design for the charging circuit, the battery can detect automatic;without inserting the batteries, charging module will not work ;
Smart charger for 10 Li-ion battery packs,with 6-hour charging time ;
Green/Red LED indicator lights for charging status.
Technical Specifications
Real time management of battery and charging current
Green/Red LED indicator lights for charging status
Charging contacts are designed to prevent wrong-way Insertion
Functions
Real time management of battery and charging current,extending battery lifetime ;
With an independent modular design for the charging circuit, the battery can detect automatic;without inserting the batteries, charging module will not work ;
Smart charger for 10 Li-ion battery packs,with 6-hour charging time ;
Green/Red LED indicator lights for charging status.
Technical Specifications
Main supply AC100~240V , 50~60Hz
Power 150W
Charging time 6 hours
Weight 6.7Kg(net weight)/8.7Kg(ful load)
Dimensions 415×344×87mm
Operating temperature 0~45°C
Storage temperature -20~50°C
Company informations
Power 150W
Charging time 6 hours
Weight 6.7Kg(net weight)/8.7Kg(ful load)
Dimensions 415×344×87mm
Operating temperature 0~45°C
Storage temperature -20~50°C
Company informations
GONSIN is Established in 2003, Gonsin Conference Equipment Co.,LTD. is the industry leader in R&D, manufacturing and sales of digital conference equipment. It is a state-level high-tech enterprise in China and a proud member of International Congress and Convention Association (ICCA).
