China Gonsin High Anti-Interfere Wireless Delegate Unit Meeting Room Gooseneck Microphone Conference Mic

Product Description

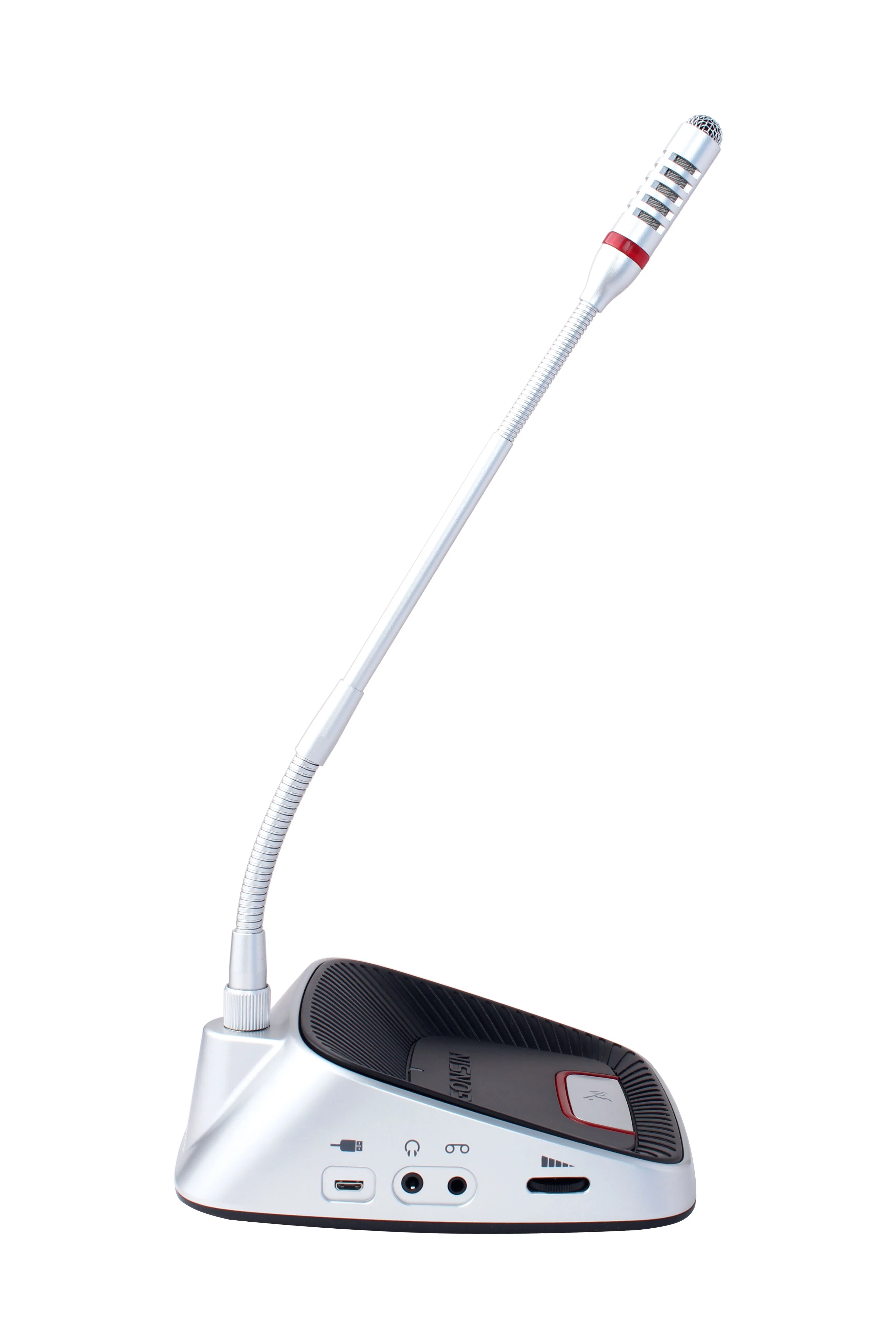

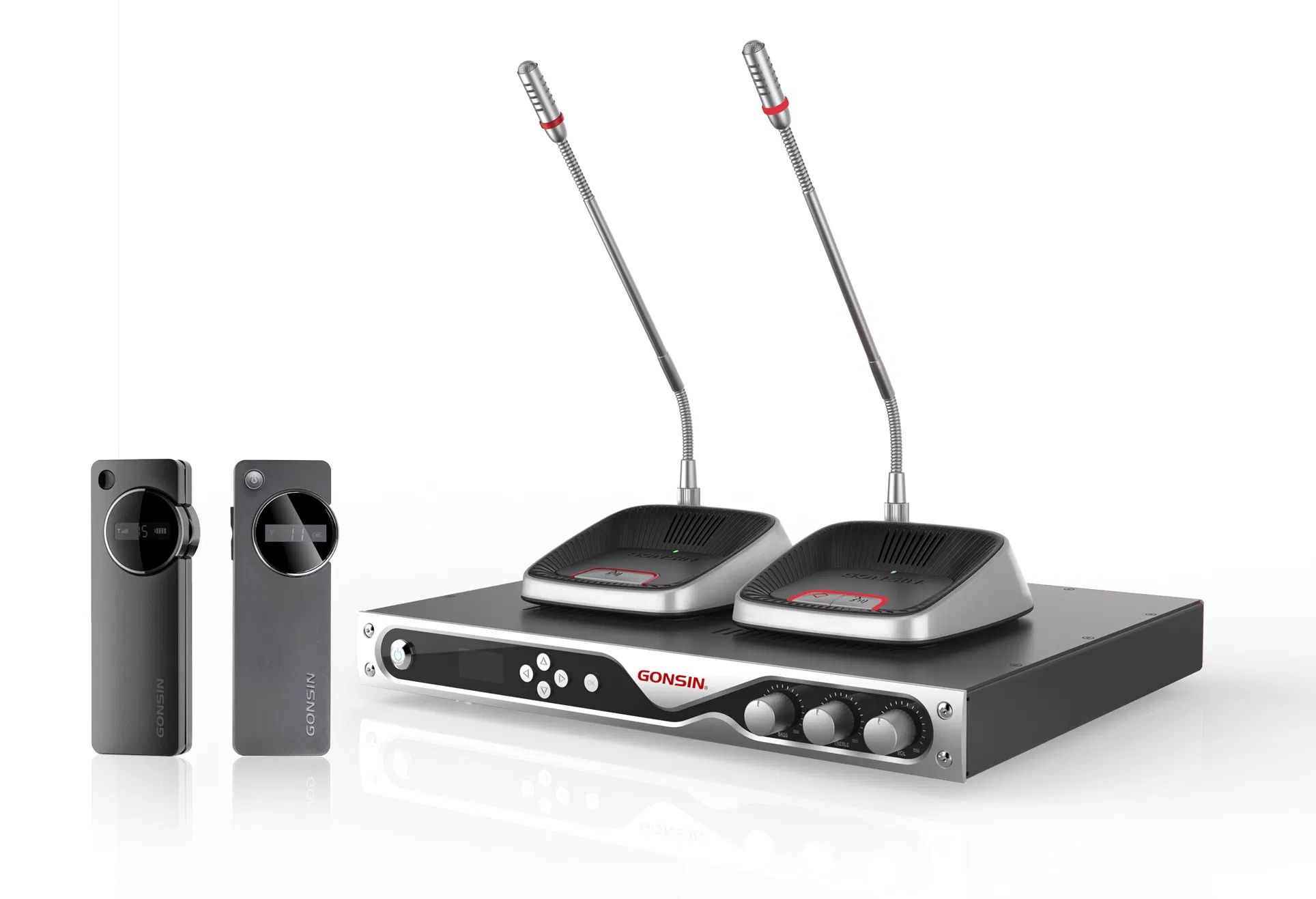

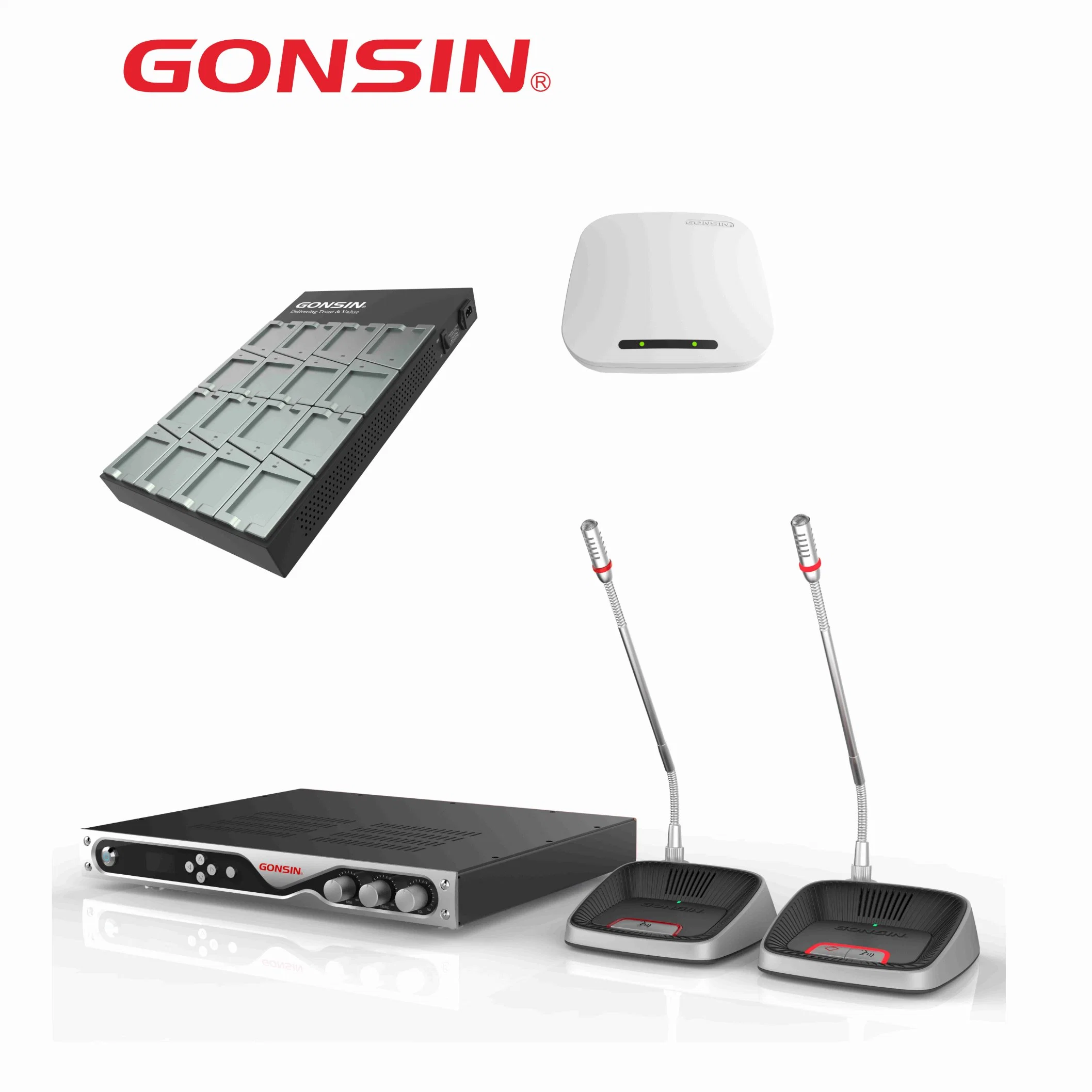

DCS-3021 wireless congress microphone

offers convenient wireless conference solution, saving cabling, and suitable for all kinds of events.

Gonsin High Anti-Interfere Wireless Delegate Unit Meeting Room Gooseneck Microphone Conference Mic

Basic function:

**2.4GHz frequency-hopping spread spectrum technology allows the server to auto-detect available 2.4GHz RF; when working with supporting software, the server adopts reliable hopping mechanism to avoid co-channel interference;

**Digital audio lossless compression technology improves wireless carrier utilization rate, and avoids interference if multiply systems are used within the same building;

** Support 8 x 1 SD/ 8 x 8 HD automatic camera tracking;

**AUTO and FIFO microphone modes;

**Max. four microphones can be activated at the same time (1 chairman mic and 1/2/3 delegate mic);

**Volume/tone adjustable;

**ID number writing available, to facilitate mic management;

**Mic can be shut down via server.

Basic Functions

2.4 GHz frequency- hopping spread spectrum technology allows the server to auto-detectavailable 2.4GHz RF; when working with supporting software, the server adopts a reliablehopping mechanism to avoid co-channel interference;

Digital audio lossless compression technology improves wireless carrier utilization rate,

and avoids interference if multiple systems are used within the same building;

Support 8×1 SD /8×8 HD automatic camera tracking;

AUTO and FIFO microphone modes;

Max four microphones can be activated at the same time (1 chairman terminal and 1/2/3 delegate terminals);

Volume/tone adjustable;

ID number writing available, to facilitate terminal management;

Terminals can be shut down via server.

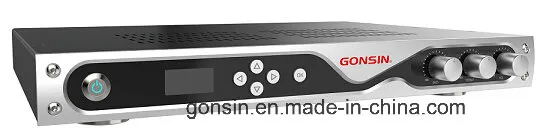

Technical Indicators

Capacity	500 terminals
Effective communication distance	30 m
Frequency response	60Hz~15KHz
Signal to noise ratio	≥75 dB (A-weighting)
Distortion	≤ 0.5% (total harmonic distortion: 50Hz~8KHz)
Max. audio output	LINE OUT: +20dBu
Interfaces	eight-pin socket x 1 (for connecting to WAP device) balanced audio output (XLR connector) x 1 non-balanced audio output (RCA connector) x 2 RJ-45 interface x 1 (for connecting to PC) RS-232 interface x 1(for controlling camera tracking video matrix)
Power supply	AC110/220V±10%, 50~60Hz
Enclosure	19-inch standard cabinet
Dimensions	1U (340mm×420mm×45mm)
Weight	4 kg
Working temperature	0~45°C
Storage temperature	-20~50°C

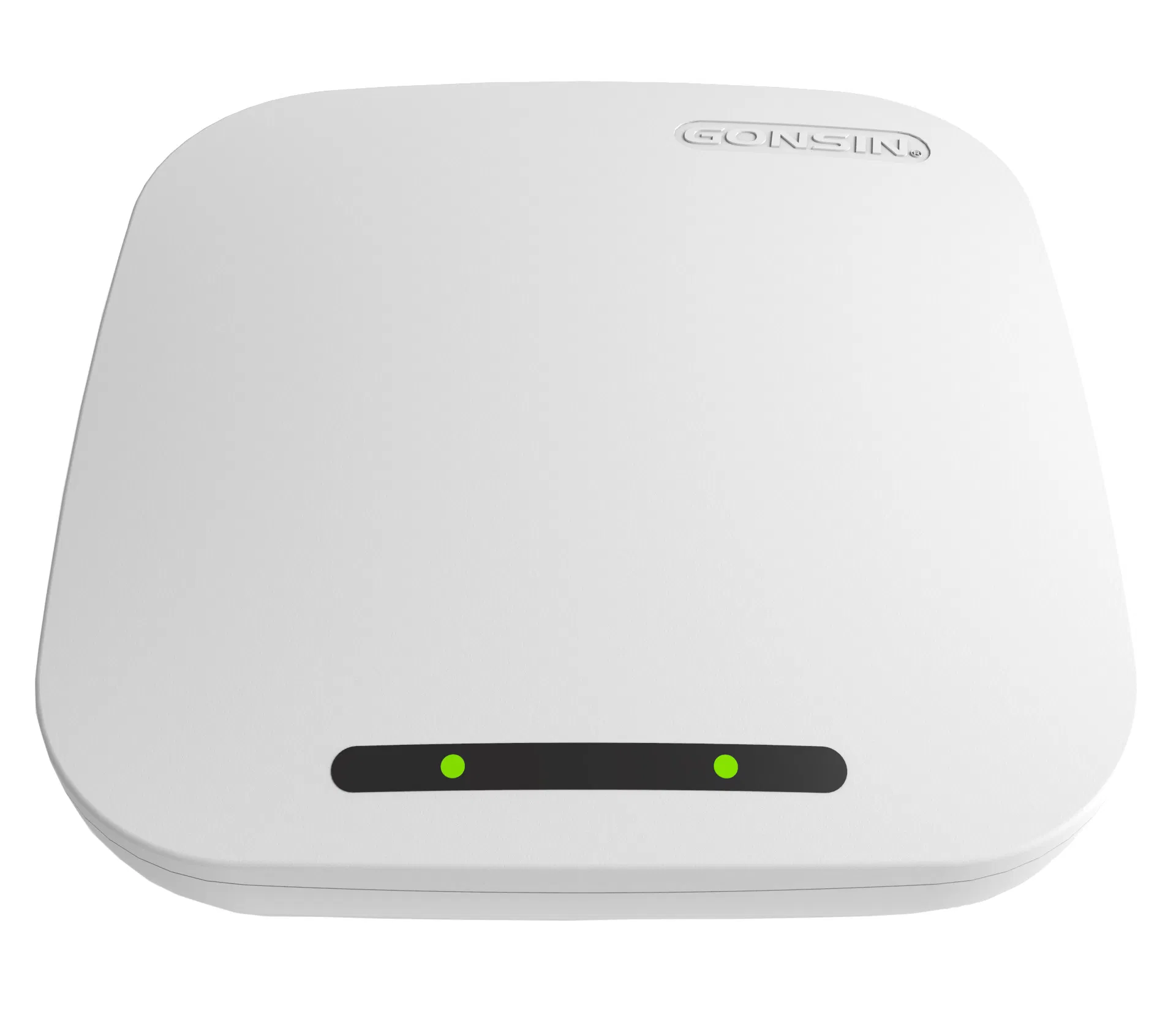

WAP-30 Wireless Access Point

Main Features

2.4 GHz frequency- hopping spread spectrum;

Strong signals to ensure communication;

No interference if multiple systems are used at the same time.

Basic Functions

Gonsin High Anti-Interfere Wireless Delegate Unit Meeting Room Gooseneck Microphone Conference Mic

Indicators to show working status;

Power is supplied via the server;

In support of wall mounting, rack installation, ceiling mounting, etc.

Technical Indicators

Communication means	2.4 GHz frequency- hopping spread spectrum
Interfaces	Eight-pin interface x 1 (for connecting to the server) Six-pin interface x 1 ( for cascading interpretation system WAP)
Power supply	DC24V
Wireless signal coverage	30 m
Dimensions	260mm×260mm×68mm
Weight	1.2 kg
Working temperature	0~45°C
Storage temperature	-20~50°C
