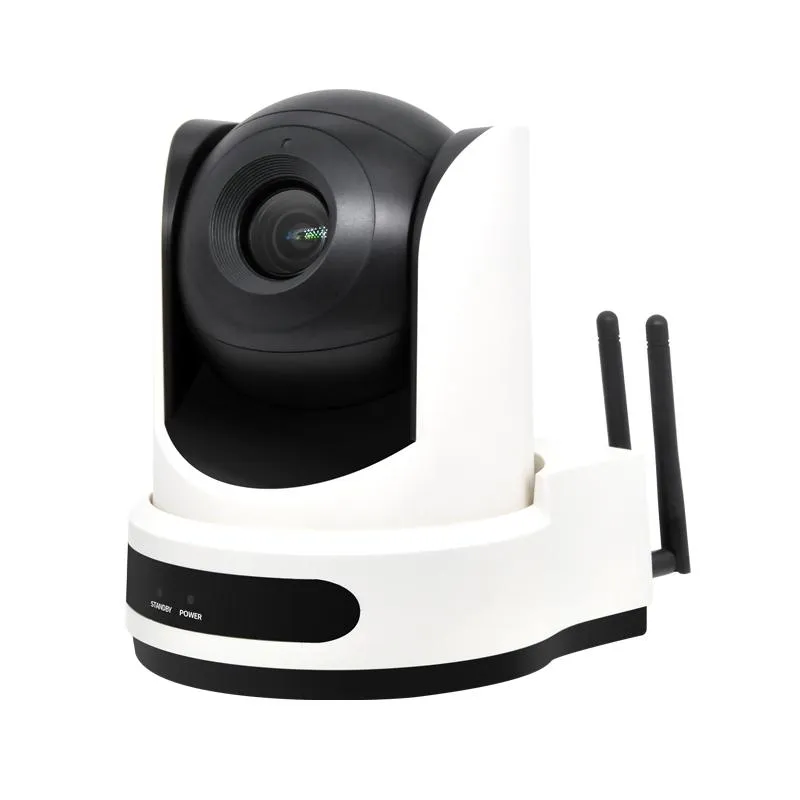

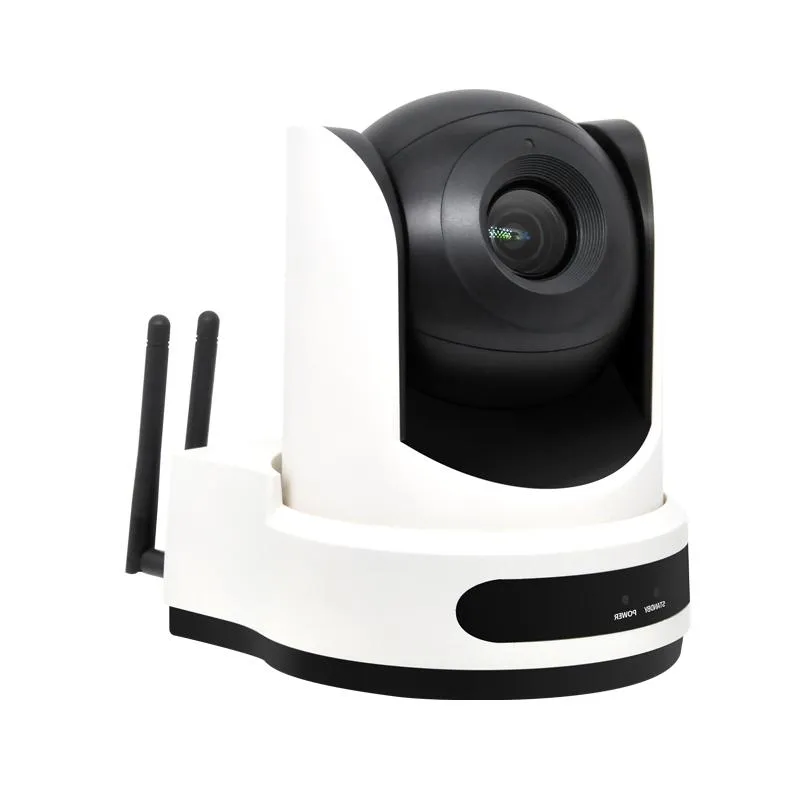

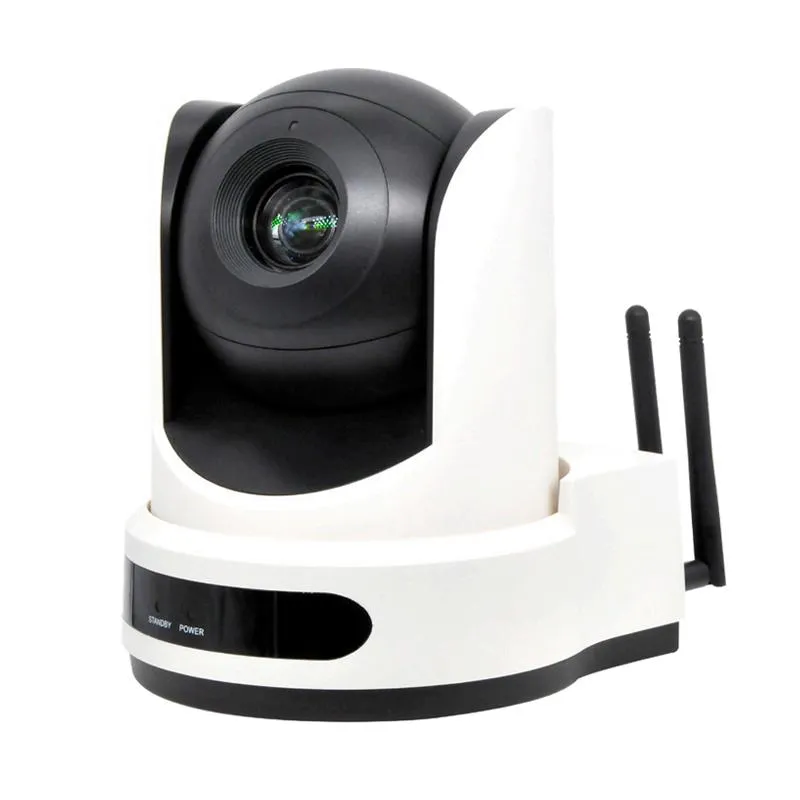

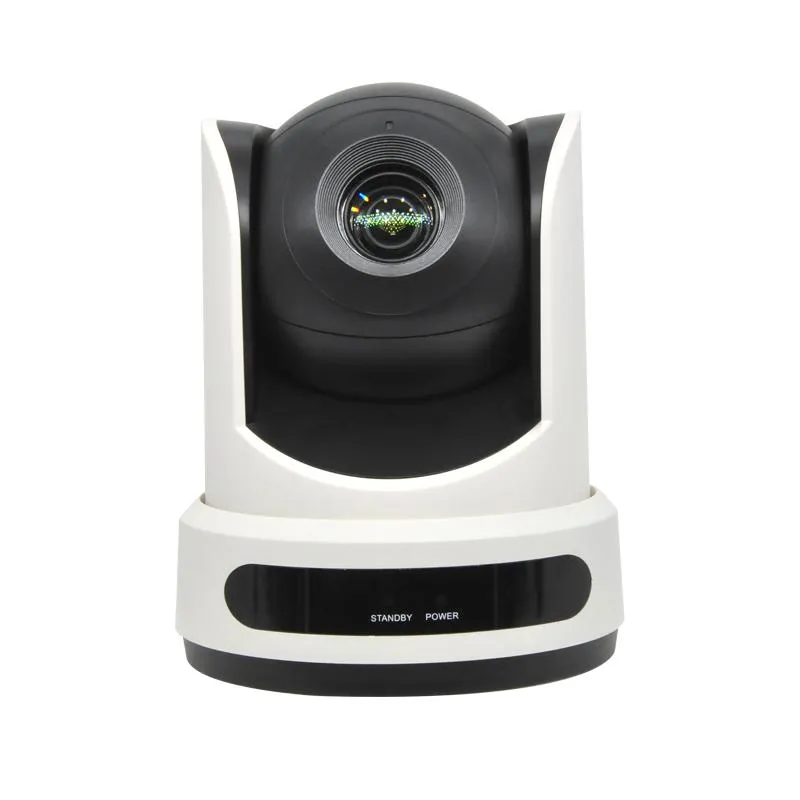

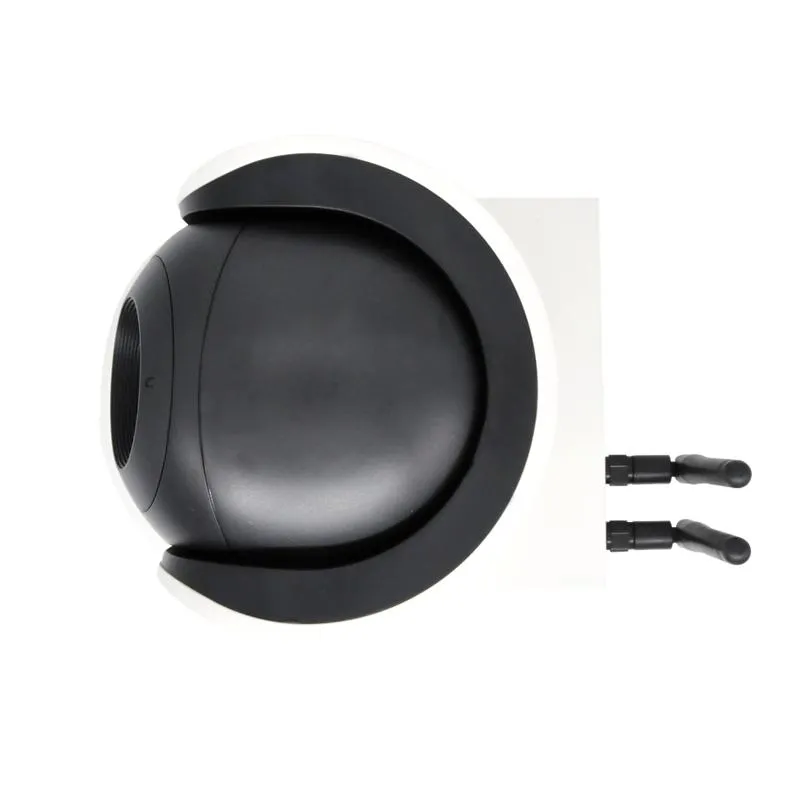

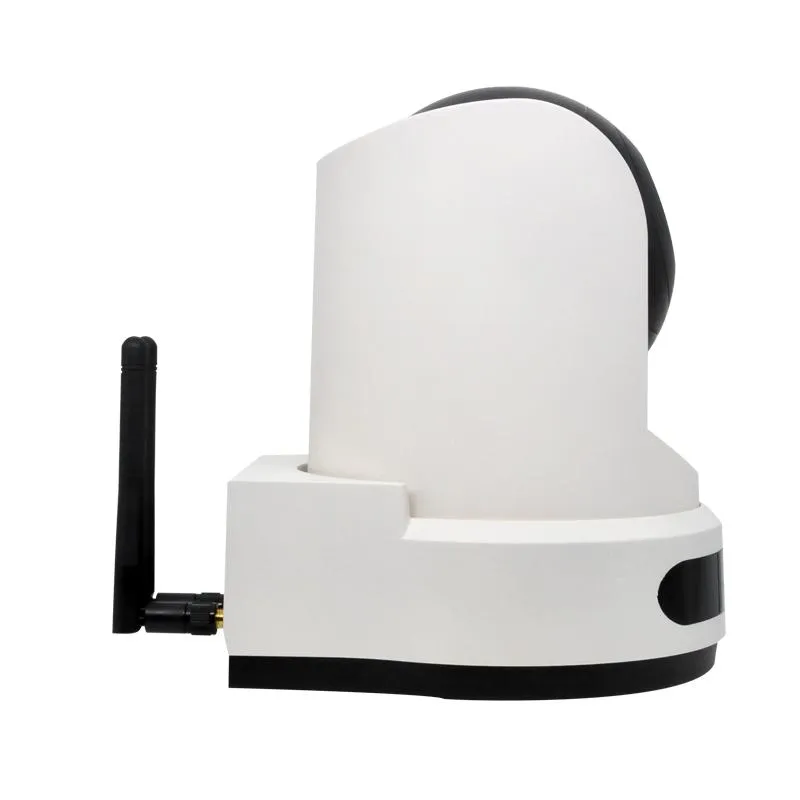

China Meetup Video Conferencing System, Ultra HD 4K/1080P/720p, 3 Microphones/Adjustable Speakers, Wide Field of View 120° , PC/Mac/Laptop/MacBook/Tablet - Black

Product Description

Key Specifications/Special Features:

Name: 4K Ultra HD USB Camera
Sensor: 1/2.5'', CMOS, Effective Pixel: 8.29M
Scanning Mode: Progressive
Lens Mount: M12
Lens 1(Default) Focus: f=3.5mm, FOV: 84°
Lens 2 Focus: f=2.8mm, FOV: 120°
Autofocus: Support(84°)
Minimal Illumination: 0.5 Lux (F1.8, AGC ON)
Shutter: 1/30s ~ 1/10000s
White Balance: Auto, Indoor, Outdoor, One Push, Manual
Camera bracket: bracket with damper
Digital Noise Reduction: 2D,3D digital noise reduction
Backlight Compensation: Support
Operate System: "Windows® 7 (1080p and under only), Windows 8.1, Windows 10 or higher
macOS™ 10.10 or higher
Google™ Chromebook™ Version 29.0.1547.70 or higher
Linux"
Hardware: "2.4 GHz Intel® Core 2 Duo processor or higher
2 GB RAM or more
USB 2.0 port (USB 3.0 required for 4K)"
Color System / Compression: H.264 / MJPEG/YUY2/NV12
Video Format: 4k@30fps/25fps, 1080p@30fps/25fps, 720p@30fps/25fps, 960x540p@30fps/25fps, 640x360p@30fps/25fps etc
USB Video Communication Protocol: UVC 1.0
UVC PTZ: Support(EPTZ)
USB Interface: 1xUSB 3.0: Type B, famale
Input Voltage: 5V (USB power supply)
Current Consumption: 600mA(MAX)
Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption: 3.0W(MAX)
Size: 194mm x 34mm x 42mm (without bracket)
Net Weight: 0.5KG
MTBF: 30000h

_{Camera Specifications}

Sensor: 1/2.5", CMOS, Effective Pixel: 8M
Scanning Mode:Progressive
Lens Mount: M12
Lens 1: Focus: f=7.35mm, FOV: 46°
Lens 2(Default): Focus: f=3.5mm, FOV: 84°
Lens 1: Focus: f=2.8mm, FOV: 120°
Autofocus: Support
Minimal Illumination: 0.05 Lux (F1.8, AGC ON)
Shutter: 1/30s ~ 1/10000s
White Balance: Auto, Indoor, Outdoor, One Push, Manual
Digital Noise Reduction: 2D, 3D digital noise reduction
Camera bracket: Optional
Backlight Compensation: Support
PoE: Support
Local Storage: Support
Auto Tracking Function: Teacher mode / Student mode (optional)

Network Features

Video Compression: H.265 / H.264 / MJEPG
Video Stream: Main Stream, Sub Stream
Main Stream Resolution:3840x2160, 1920x1080, 1280x720, 1024x576 etc.
Sub Stream Resolution:1920x1080, 720x576, 720x480, 320x240 etc.
Video Bit Rate:128Kbps ~ 20480Kbps
Bit Rate Type:Variable Rate, Fixed Rate
Frame Rate:50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps
Audio Compression:AAC
Audio Bit Rate:96Kbps, 128Kbps, 256Kbps
Support protocols:TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.

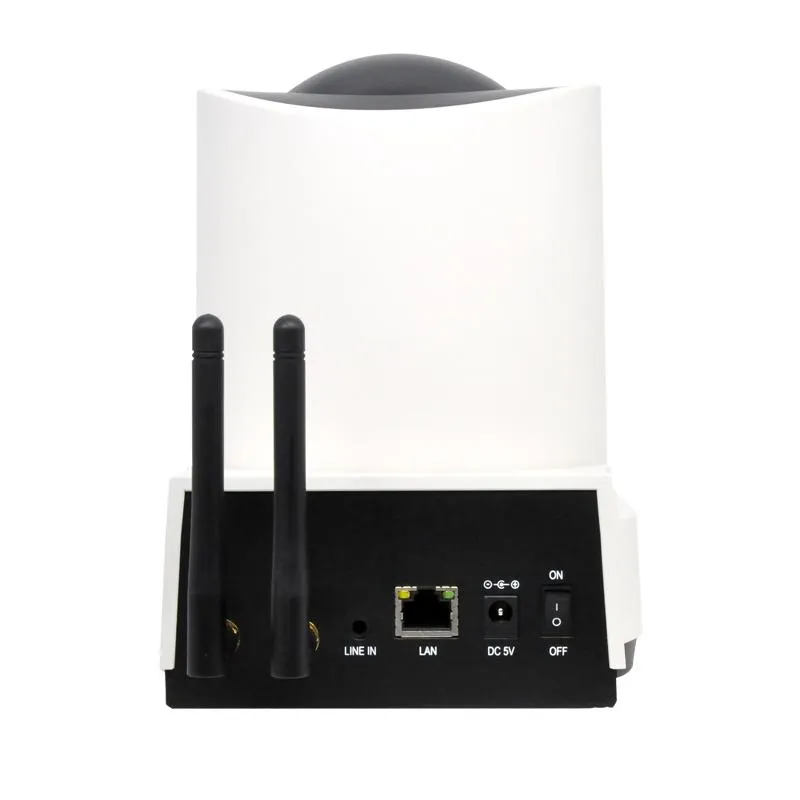

Input/Output Interface

Network Interface:1xRJ45: 10M/100M/1000M Ethernet Interface & 1xWireless Wi-Fi (optional)
USB Interface:1xUSB 2.0: Type A, famale

General specification

Input Voltage:DC 12V / PoE (802.3af)
Operating Temperature:'-10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature:'-40°C ~ 60°C (-40°F ~ 140°F)
Size:194mm x 34mm x 42mm (without bracket)
MTBF30000h

Our Advantages

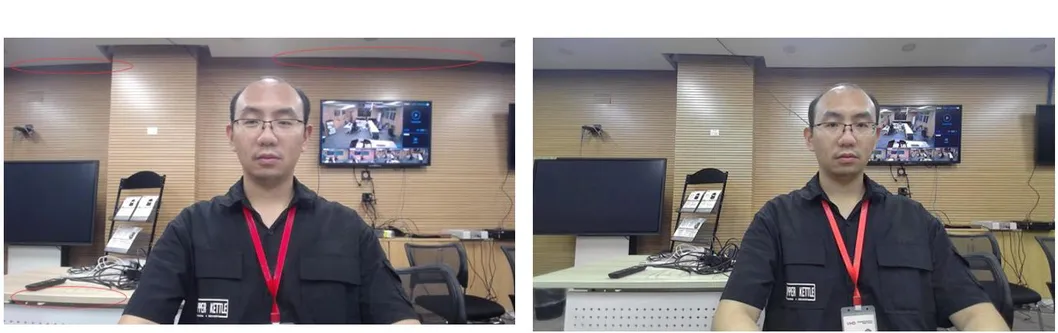

Distortion

1080P Ultra Wide Angle USB Camera Webcam Video Conference Camera

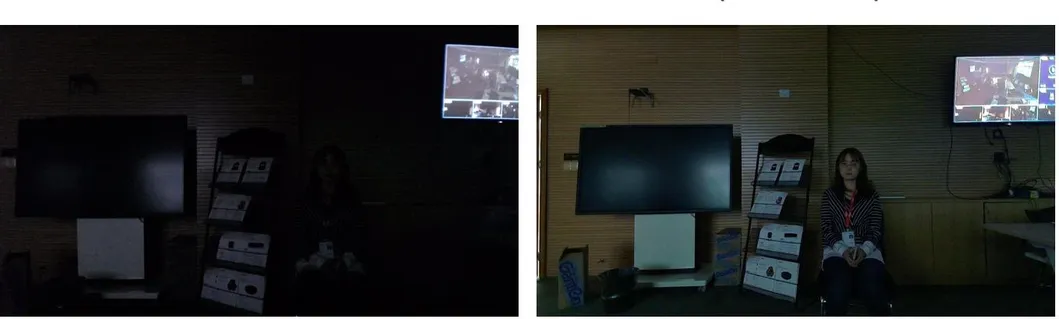

Low Illumination

Certificate

Why choose us?

Shenzhen Jiacheng Electric Co., Ltd. (hereinafter referred to as Jiacheng, abbreviated as JC), was established in 2005 with a registered capital of 100 million RMB. JC is an internationally renowned company focusing on the electronic equipments, industrial automobile and wire harness products. JC builds on its own hardware and plastic technology development department, it contributes on developing high-tech and value-added business, JC's business is throught the Middle East, Euorpe, Central Asia, North America and other countries. We hold on the service concept of satifying each client's demands and pursing long cooperation partners, finally achiveve a win-win situation. Choose us and let us enjoy our happy journey now!
