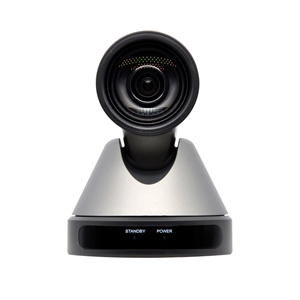

Ultra HD Box Camera V330 with Low Image Latency
Glad to know HZ Camera Hongzhou Group is ISO9001,ISO13485,IATF16949 certified and UL approved Hi-tech corporation,HZ Camera is a professional AV integration and conference solution provider, since it's founded in 2008, HZ Camera has been focusing on the high-definition video camera and its acces......
Send Inquiry
Product Description
Glad to know HZ Camera
Hongzhou Group is ISO9001,ISO13485,IATF16949 certified and UL approved Hi-tech corporation,HZ Camera is a professional AV integration and conference solution provider, since it's founded in 2008, HZ Camera has been focusing on the high-definition video camera and its accessories. Its products range from HD video conferencing camera, to 4K cameras with intelligence analysis capabilities, MCU, All-in-one camera, microphone and etc.
HZ Camera's core competence lies in deep understanding of the industry user needs, many years of experience in video communication, ability to convert advanced technologies into product, sincere customer service, and flexible business model.
We welcome customers from all over the world! OEM/ODM available!
Features
12x optical zoom
It adopts an integrated 72.5° wide-focus lens and 12x optical zoom.
1080P Full HD
It adopts a 1/2.8-inch, 2.07 million effective pixel high-quality HD CMOS sensor, which can achieve high-quality images with a maximum resolution of 1920x1080.
Low latency
Pipeline image signal processing, no frame buffer, and delay as low as 10ms.

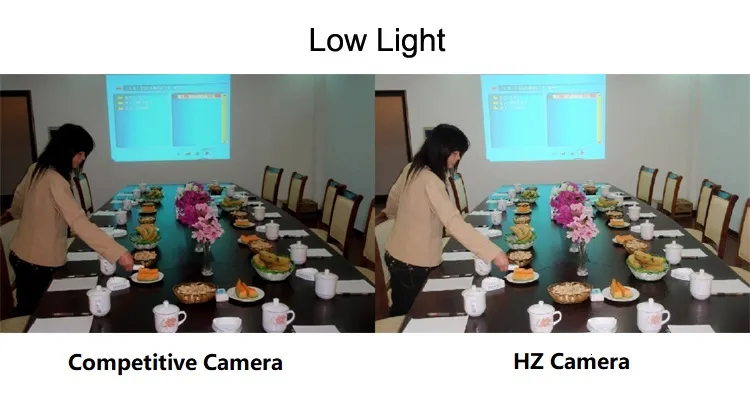

Low illumination
The CMOS image sensor with ultra-high signal-to-noise ratio can effectively reduce the image noise under low illumination. At the same time, 2D and 3D noise reduction algorithms are applied to greatly reduce the image noise. In the case of low illumination, the picture is still clean and clear. The ratio is as high as 55dB.
Ultra high frame rate
The output frame rate under 1080P can reach up to 60fps, which meets the demand for smoothness of the picture while ensuring high definition.
Exposure control algorithm
The Iridix exposure dynamic control algorithm based on the human eye model is adopted to make the image exposure uniform and strong sense of layering.

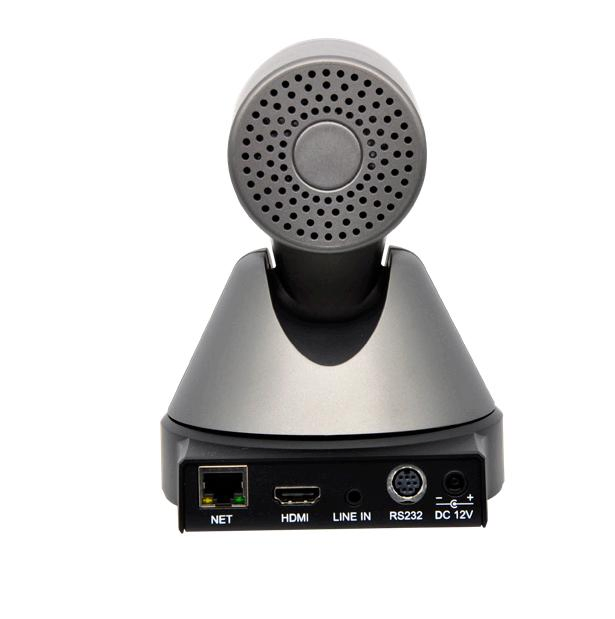

Rich and complete interface
At the same time, it provides DVI-I (compatible with digital HDMI + analog YPbPr component) interface, SDI interface, and two channels of high-definition video can be output at the same time.
Infrared transmission
I nfrared remote control signl transparent transmission function. In addition to receiving its own dedicated remote control signal, it can also receive the user's infrared remote control signal and send it to the video conference terminal through the VISCA IN port.

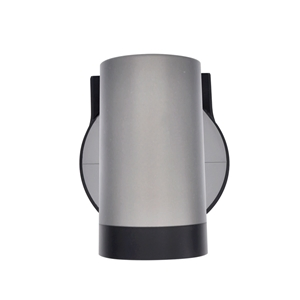

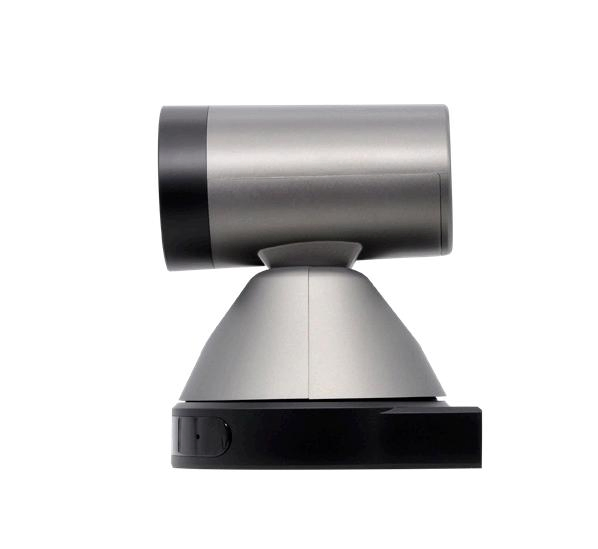

Product details
Parameters
Video camera
| Video resolution | 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25 |
| sensor type | CMOS, 1/2.8 inch, 2.07 million effective pixels |
| scanning method | progressive scan |
| Lens focal length | 12x, f=3.5mm ~ 42.36mm, F1.8 ~ F2.8 |
| Focusing method | automatic / manual |
| Minimum illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Electronic shutter | 1/2s ~ 1/10000s |
| White balance | Automatic, indoor, outdoor, one-button, manual, specified color temperature |
| BLC | support |
| Digital noise reduction | 2D&3D digital noise reduction |
| Signal-to-noise ratio | ≥ 55dB |
| Horizontal field of view | 72.5° ~ 6.9° |
| Vertical field of view | 44.8° ~ 3.9° |
| Horizontal rotation range | ±170° |
| Ve r t i ca l rotat i o n range | -30° ~ +90° |
| Pan speed range | 1.7° ~ 80.5° /s |
| Ve r t i ca l rotat i o n speed range | 1.7° ~ 50° /s |
| Flip | support |
| Number of preset positions | 255 |
| P r e s e t p o s i t i o n accuracy | 0.1° |
| HD output | 1 c h a n n e l , D V I - I ( c o m p a t i b l e with digital HDMI + analog YPbPr component), some formats support VGA output; 1 c h a n n e l , 3 G - S D I : B N C t y p e , 800mVp-p, 75Ω, follow STMPTE 274M standard; |
| C o m m u n i c a t i o n Interface | 1 channel, RS-232 IN: 8-pin small DIN, maximum distance: 30 meters, VISCA/ Pelco-D/Pelco-P protocol; 1 channel, RS-232 OUT: 8-pin small DIN, maximum distance: 30 meters, VISCA protocol; |
| Power connector | JEITA type (DC IN 12V) |
Input and output interface
| Input voltage | DC 12V |
| Input Current | 1.0A (maximum) |
| Power consumption | 12W (max) |
| Operating temperature | -10 ~ 40° C |
| stored temperature | -40 ~ 60ºC |
| size | 240mm x 144mm x 160mm |
| colour | Silver & black |
| weight | 1.65Kg |
Application

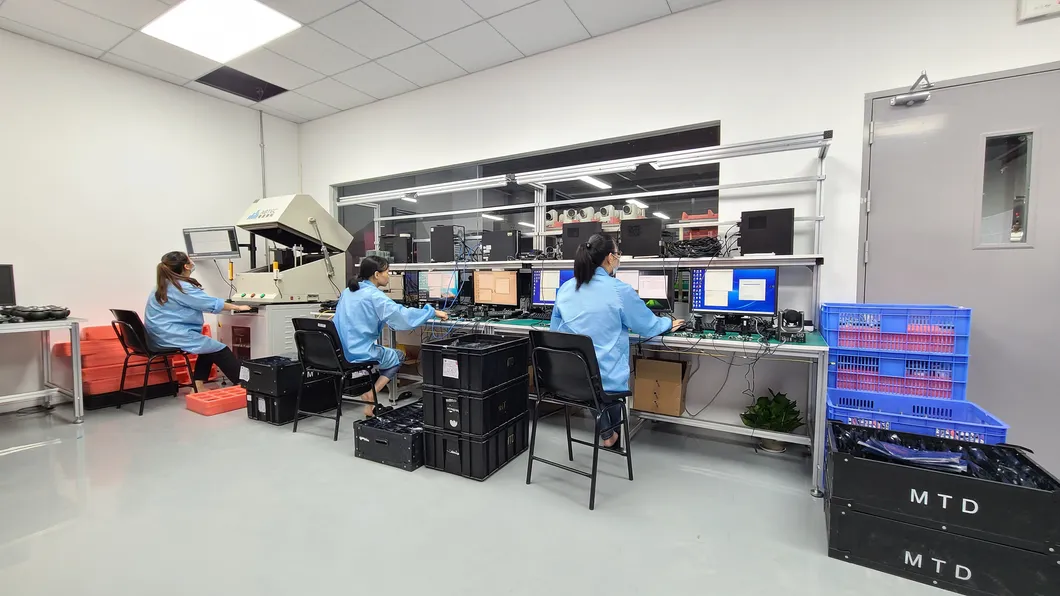

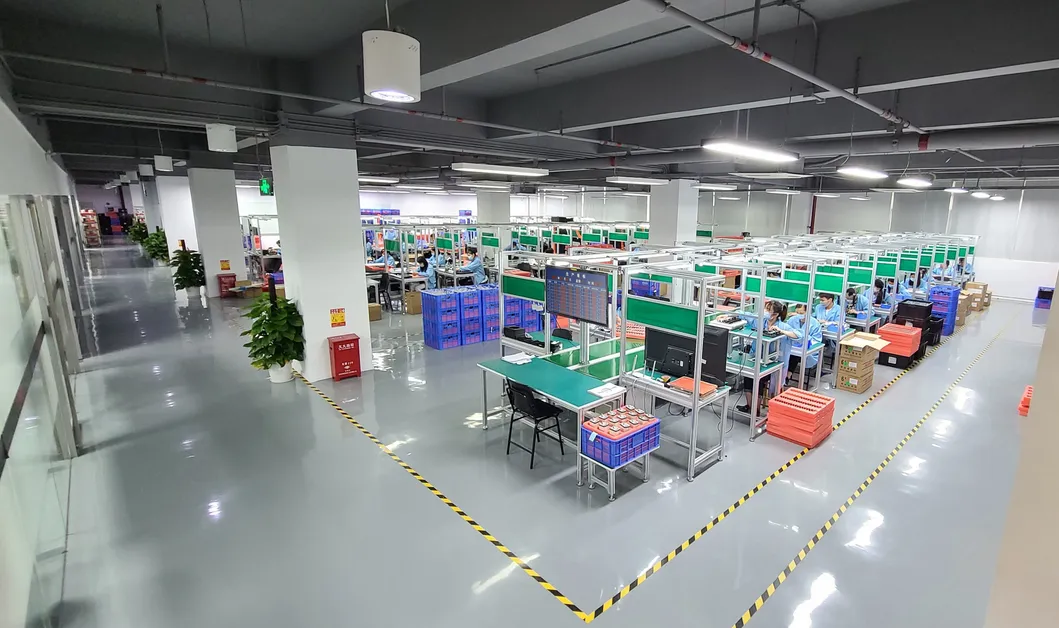

Workshop
1,Packing in cartons.
FAQ
A: Manufacturer with more than 10 years experience.
2. Q: What's your main products?
A: We have been focusing on the production of HD&4K video cameras and its accessories since our foundation in 2008.
3. Q: Can you do OEM / ODM for us?
A: Of cause. Let us know what you need, we'll do it for you.
4. Q: Can we visit your factory?
A: Yes,you are warmly welcomed to visit our factory anytime, our factory is only half an hour driving from the Shenzhen Airport.
5. Q: If there is any problem about your products, should we have a refund or replacement?
A: If there is any problem within one year, you will get a brand new replacement.
6. Q: What is your delivery time?
A: For samples, within 1-3 working days after payment received. For bulk order, it depends on your quantity and requirements on OEM / ODM.
