Product Description

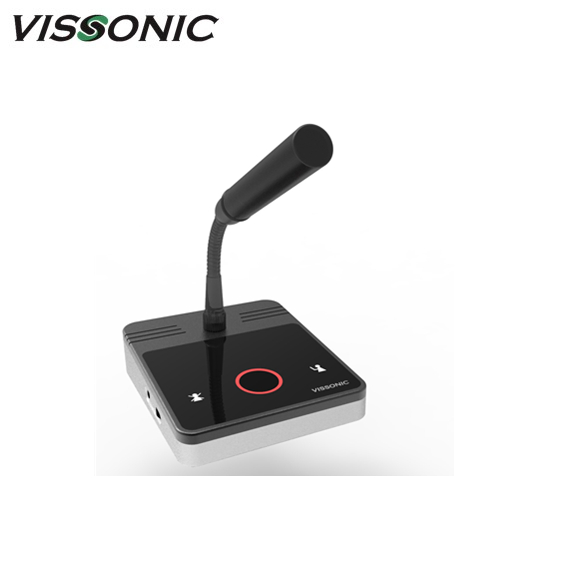

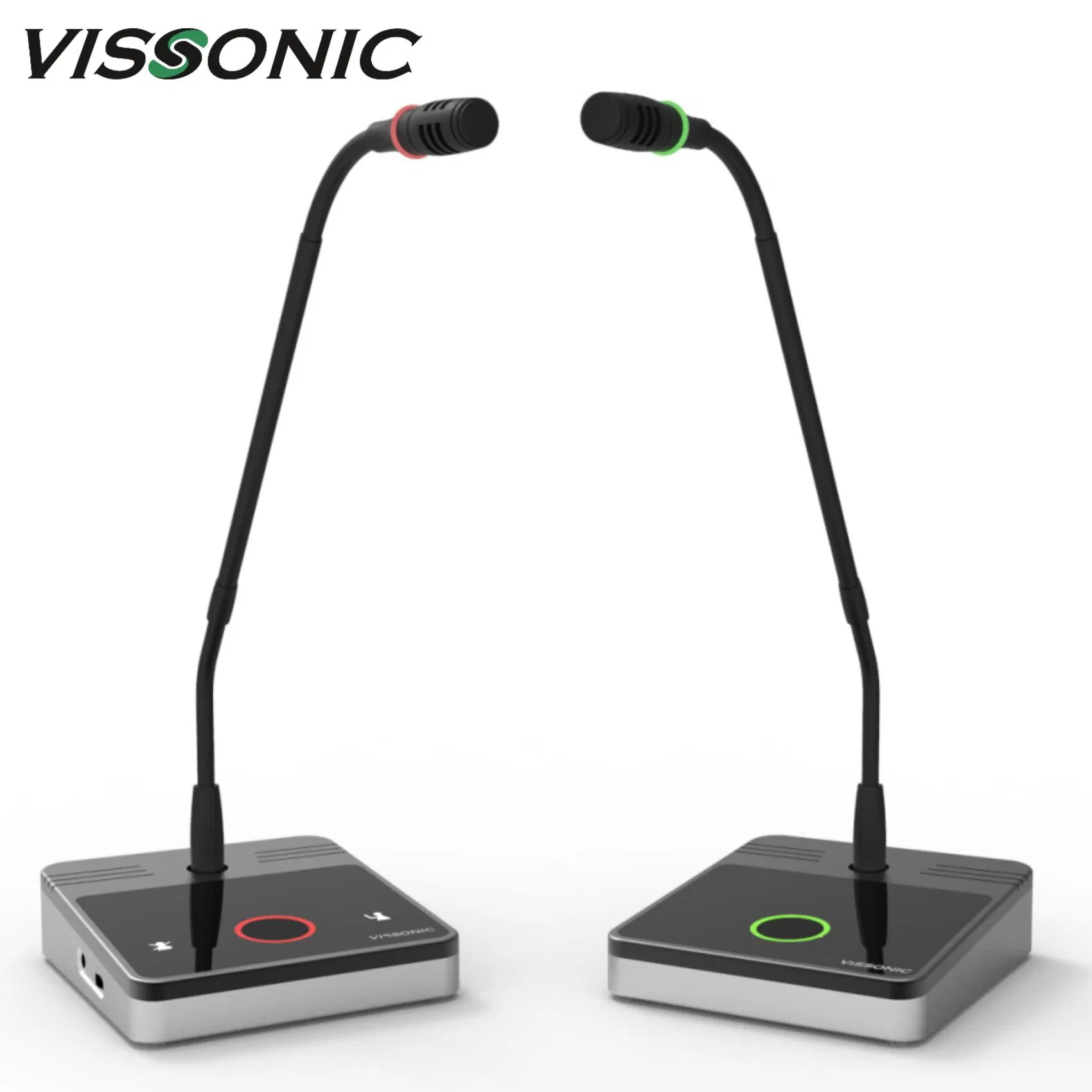

Basic Wired Digital Conference Discussion Microphone--VISSONIC's Soft Classic Style Microphone

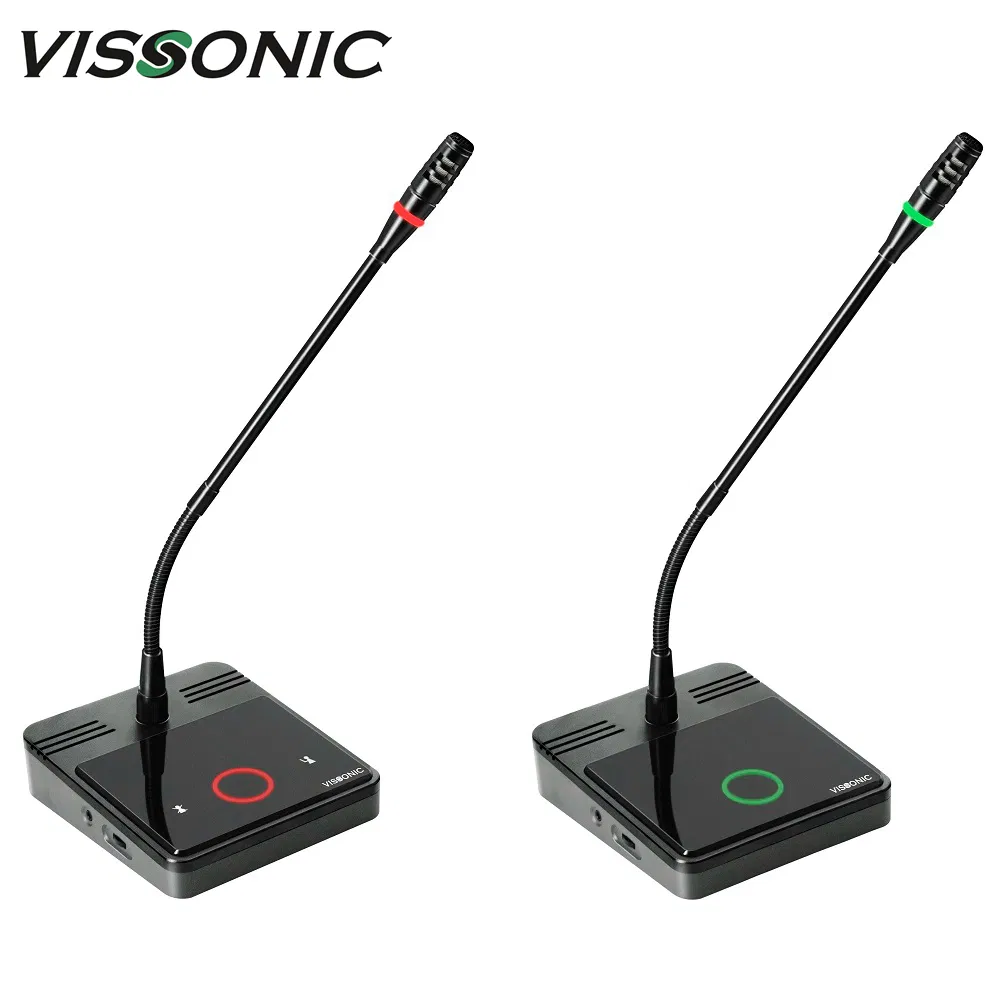

Buying part NO#VIS-DEC-T for chairman unit; VIS-DED-T for delegate unit

The appearance of this conference unit in the soft classic design, mixing a number of classic microphone elements, including a long-stroke physical speaking button with a concave relief, a built-in 2x2W high-quality speaker, and a symmetrical design. Its core technology uses VISSONIC digital network technology to maintain consistent excellent Installation and using experience.

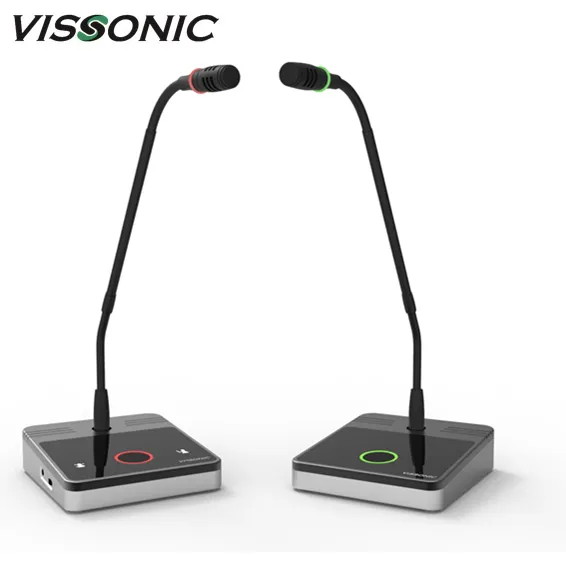

Wired Digital Basic Economical Discussion Microphone for Chairman Delegate Unit with Touch Button

Features

- Compliance with IEC 60914, GBT 15381-94
- Using unique AUDIO-LINK digital ring network technology to achieve full-digital signal transmission and processing,which can completely avoid the RF interference from cell phone or similar devices
- Each microphone unit has unique ID (no duplicate ID confliction)
- Standard CAT5e and RJ45 connectors are used in CLEACON series(VIS-DOC-T included) to provide more convenient on project build and maintenance.
- The cable connection of MIC units are either hiding underneath or from the rear of the unit, makes it convenient for installation of different request
- Using high-fidelity loudspeaker
- Head-set interface in both sides with volume adjuster
- Line-in interface which allows microphone or other line-in device like cell phone, laptop to pass audio through to perform teleconference
- Work with VISSONIC HD camera and video matrix switcher, it applies camera auto tracking function

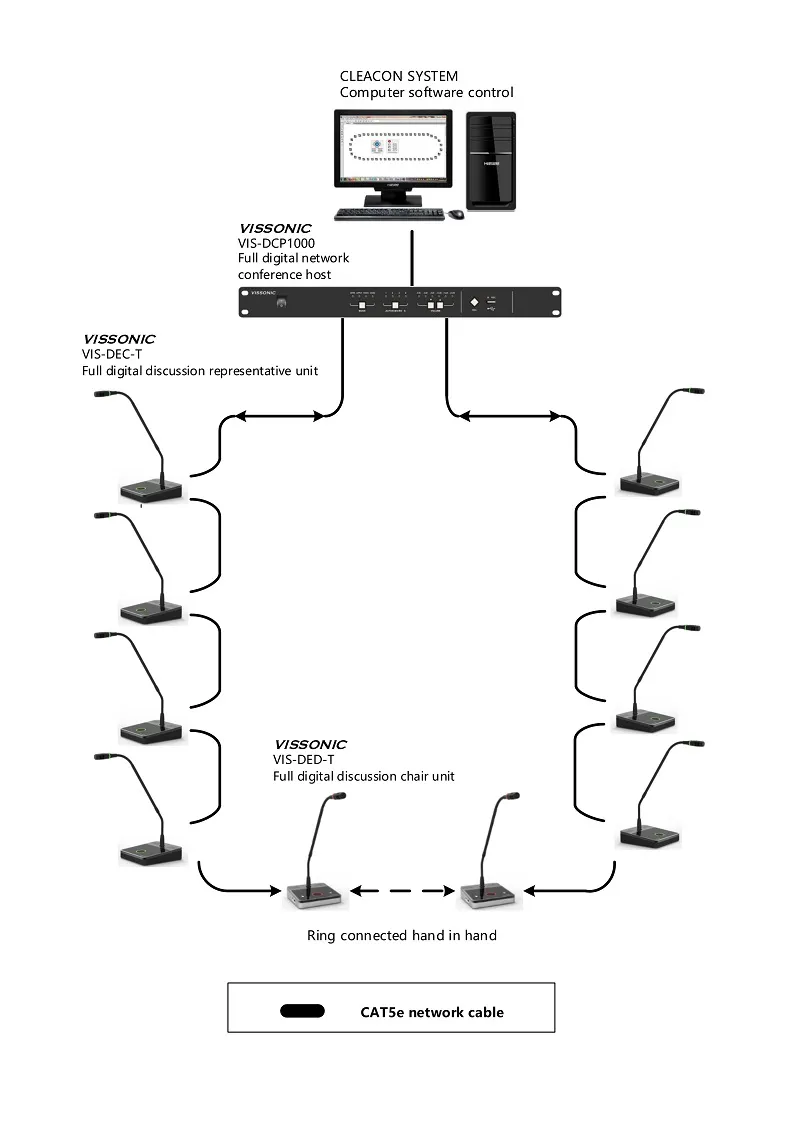

- Connection: "Hand-in-Hand-Loop-Network" connection makes the system always working perfectly no matter changing discussion unit or having any malfunctioned units

Functions

Cable	Single CAT5e cable transmits 64 channels of audio and various information
Speaker	High fidelity sound by zero loss audio transmit technology, 48K audio sampling frequency, 20Hz~20KHz response frequency;Precise cardioid directional microphone capsule with anti-wind microphone foam, with two-color LED indicator
Loudspeaker	Built-in high-fidelity loudspeakers, it automatically mutes to prevent howling when press MIC ON
Button	for MIC ON/OFF, Priority & Apply Answer button for chairman unit
Head-set interface	In both sides with volume adjust
Limiter	To prevent the sound suddenly become loud or low; noise gate of human voice can be identified; AGC (Automatic Gain Control)/AFC (Adaptive Feedback Cancellation)/ANC (Active Noise Control)/Mix (Auto-Mix) technology
Controller	With auto-recovery function,hot-swap for any system unit
Discussion modes:	"OPEN" open to all, limited by the active units setting by controller, "VOICE" Unit activated by voice, "OVERRIDE" First in First out, "PTT" Keep pressing button when speaking, "APPLY" To apply then to speak, "ALL" open to all speakers

Model for Order

VIS-DOC-T ........... All-digital network discussion chairman unit
VIS-DOD-T ........... All digital network discussion representative unit
VIS-DCP1000 ....... All Digital Network Conference System controller
VIS-M220 ........ 220mm microphone (black) with anti-wind foam cover
VIS-M330 ........ 330mm microphone (black) with anti-wind foam cover
VIS-M410 ........ 410mm microphone (black) with anti-wind foam cover
VIS-M485 ........ 485mm microphone (black) with anti-wind foam cover
VIS-M600 ........ 600mm microphone (black) with anti-wind foam cover

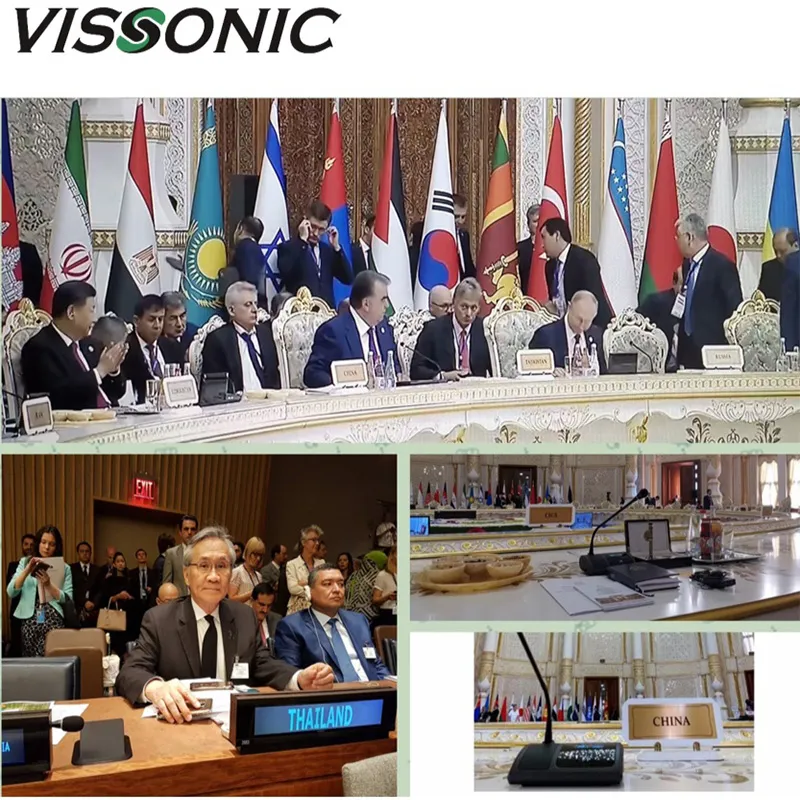

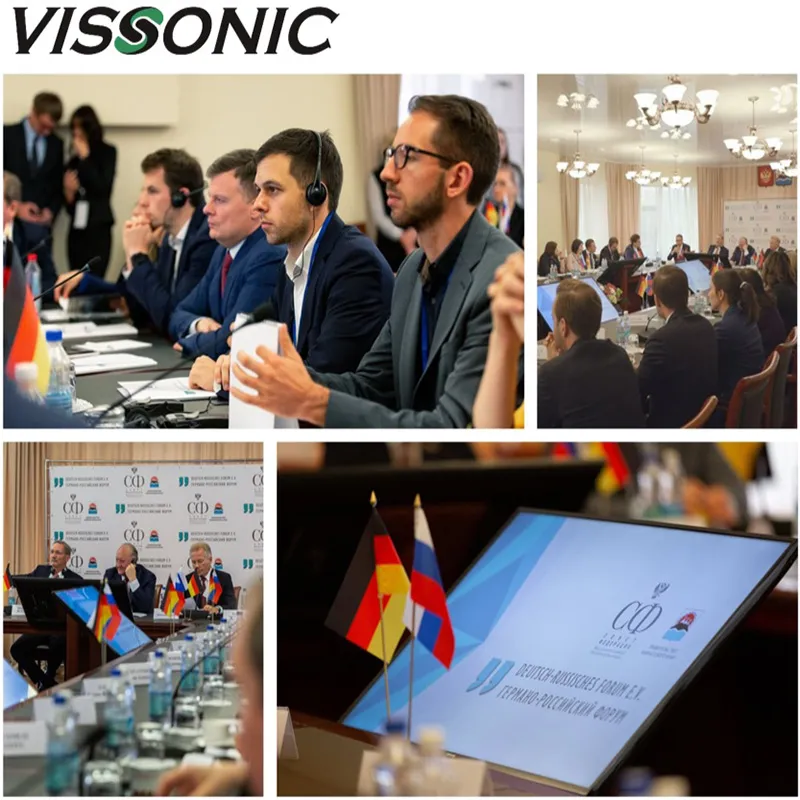

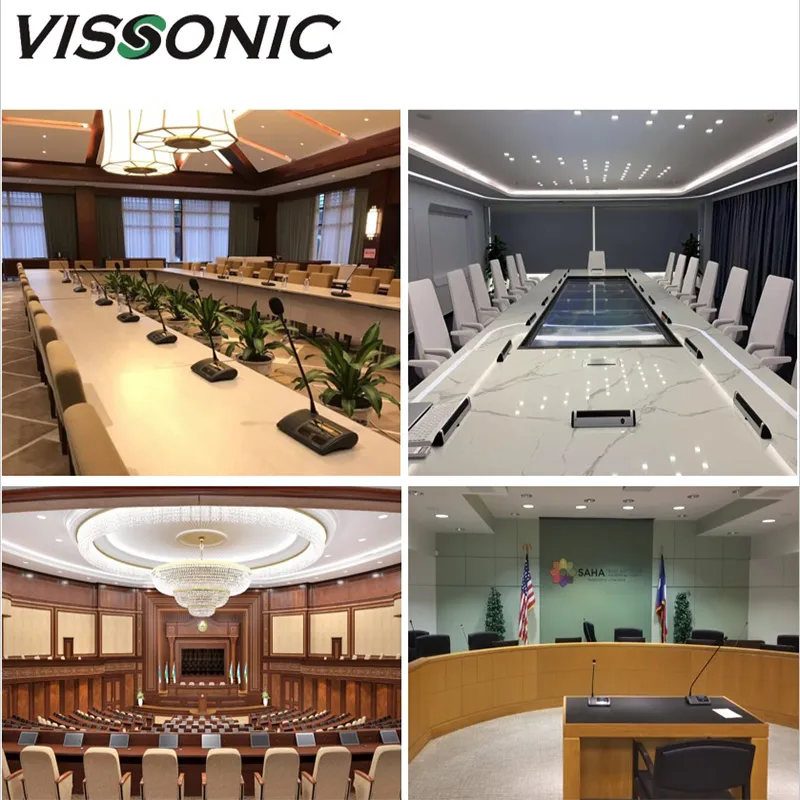

Application

.
